🔧 WRX - Front Lower Ball Joint Replacement

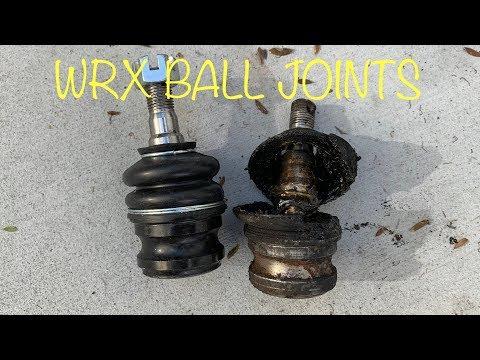

On your WRX, the “ball joint” most commonly replaced is the front lower ball joint (it connects the lower control arm to the steering knuckle). Replacement involves separating the joint from the knuckle and control arm, then installing the new joint and hardware.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours (per side)

---

⚠️ Safety & Precautions

• 🛑 Support the car with jack stands; never rely on a floor jack.
• 🛑 Wear eye protection; the ball joint can release suddenly.
• 🛑 Don’t let the knuckle/hub hang by the brake hose—support it with a bungee cord.
• 🛑 If the pinch bolt is seized, avoid snapping it; use penetrant and patience.
• 🛑 Alignment may change—plan for an alignment check after.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket 19mm
• Breaker bar 1/2"
• Torque wrench 3/8"
• Torque wrench 1/2"
• Socket set 10mm–19mm
• Wrench set 10mm–19mm
• Pry bar 18"
• Ball joint separator (specialty)
• Punch set 3mm–8mm
• Hammer 2 lb
• Needle-nose pliers
• Wire brush
• Penetrating oil
• Bungee cord
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 1 (replace in pairs recommended)
• Ball joint pinch bolt and nut - Qty: 1
• Ball joint castle nut - Qty: 1
• Cotter pin - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Break the front lug nuts loose using a 19mm socket and breaker bar before lifting.
• Spray penetrating oil on the ball joint pinch bolt area and let it soak 10–15 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front corner

• Use a floor jack to lift the front corner at the approved jack point.
• Set the car onto jack stands.
• Remove the wheel using a 19mm socket.

Step 2: Support the knuckle so nothing hangs

• Hook a bungee cord to support the knuckle/hub area once it starts to move.
• Never pull on the brake hose.

Step 3: Remove the cotter pin and loosen the ball joint nut

• Straighten and remove the cotter pin using needle-nose pliers.
• Loosen and remove the ball joint nut using the correct socket and breaker bar.
• Important: If your WRX uses a castle nut, you’ll reinstall a new cotter pin later.

Step 4: Separate the ball joint from the knuckle/control arm

• Install the ball joint separator (specialty) and separate the tapered stud. (A separator is a tool that “pops” the tapered joint loose.)
• If needed, use a hammer 2 lb to strike the knuckle boss (not the stud threads) while the separator is under tension.
• Use a pry bar 18" to gently move the control arm down once the stud is free.

Step 5: Remove the pinch bolt (knuckle clamp)

• Locate the ball joint pinch bolt at the bottom of the steering knuckle.
• Use the correct socket and wrench to remove the bolt and nut.
• If the bolt is stuck, use penetrating oil, a wire brush on exposed threads, and tap it out with a punch and hammer.

Step 6: Remove the ball joint from the knuckle

• Work the ball joint out of the knuckle bore. Use a pry bar 18" carefully.
• Clean the knuckle bore with a wire brush.
• Apply a thin film of anti-seize compound to the ball joint body (avoid the tapered stud area).

Step 7: Install the new ball joint

• Slide the new ball joint into the knuckle fully seated by hand.
• Reinstall a new pinch bolt and nut using the correct socket and wrench.
• Reinsert the ball joint stud into the control arm and start the nut by hand.

Step 8: Torque fasteners (torque spec check needed)

• Use a torque wrench to torque the pinch bolt and the ball joint nut to Subaru spec.
• Install a new cotter pin using needle-nose pliers (if castle nut style).
• Note: Torque specs vary by exact joint style/hardware—see my 2 questions below so I can give the exact numbers for your configuration.

Step 9: Reinstall wheel and lower

• Reinstall the wheel using a 19mm socket.
• Lower the car using the floor jack.
• Torque lug nuts using a torque wrench 1/2" to Torque to 120 Nm (88 ft-lbs).

---

✅ After Repair

• Turn the steering wheel lock-to-lock and confirm nothing binds or rubs.
• Road test at low speed first; listen for clunks over bumps.
• If you feel wandering steering or off-center wheel, schedule an alignment check.
• Recheck lug nut torque after 50–100 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$750 (parts + labor, per side)

DIY Cost: $60–$180 (parts only, per side)

You Save: $290–$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–3.0 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

---

Quick questions (so I can give you the exact Subaru torque specs and the exact separation method):

• 🔎 Are you replacing the front ball joint (most common) or a rear ball joint (rear uses different arms/bushings)?
• 🔎 On your side, does the ball joint use a castle nut with cotter pin, or a flange/lock nut (no cotter pin)?
