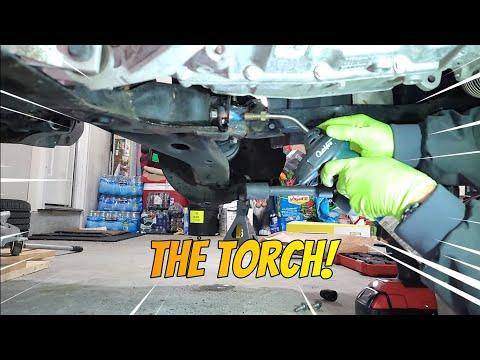

🔧 Escape - Front Lower Ball Joint Replacement

On your Escape, the front lower ball joint is part of the front lower control arm assembly from the factory. The correct DIY repair is to replace the complete front lower control arm, not press the ball joint out separately.

This repair restores safe steering and suspension movement when the ball joint is loose, clunking, torn, or causing uneven tire wear.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Support your Escape with jack stands before working underneath. Never rely on a floor jack alone.
• ⚠️ The lower control arm supports suspension loads. Keep hands clear when separating the ball joint from the steering knuckle.
• ⚠️ Do not hammer directly on the ball joint stud threads.
• ⚠️ Replace the control arm mounting bolts and ball joint pinch bolt if supplied with the new part or if damaged/corroded.
• ⚠️ A wheel alignment is required after replacing a lower control arm.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 3/8-inch drive ratchet
• 19mm lug nut socket
• 15mm socket
• 18mm socket
• 21mm socket
• 15mm wrench
• 18mm wrench
• 21mm wrench
• Ball joint separator (specialty)
• Pry bar
• Dead blow hammer
• Needle-nose pliers
• Paint marker
• Wire brush
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm with ball joint - Qty: 1 per side
• Front lower control arm with ball joint - Replace in pairs if both sides are worn - Qty: 2
• Ball joint pinch bolt and nut - Qty: 1 per side
• Front lower control arm mounting bolts - Qty: 2 per side

---

📋 Before You Begin

• Park your Escape on level ground.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Loosen the front lug nuts slightly before lifting the vehicle.
• Spray penetrating oil on the lower ball joint pinch bolt and control arm mounting bolts.
• A ball joint separator is a fork-shaped tool that helps separate the ball joint stud from the steering knuckle.
• A torque wrench is a tool that tightens bolts to the correct tightness so parts are not loose or over-tightened.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 19mm lug nut socket and 1/2-inch drive breaker bar to loosen the front wheel lug nuts about one turn.
• Do not remove the lug nuts yet.
• Break lug nuts loose on the ground.

Step 2: Lift and Support the Vehicle

• Use a floor jack at the front jacking point to lift the front of your Escape.
• Place jack stands under the proper front support points.
• Lower the vehicle gently onto the jack stands.
• Lightly shake the vehicle by hand to confirm it is stable.

Step 3: Remove the Front Wheel

• Use the 19mm lug nut socket to remove the lug nuts.
• Remove the wheel and place it flat under the side of the vehicle as an extra safety backup.

Step 4: Mark the Control Arm Position

• Use a paint marker to mark the position of the lower control arm where it meets the subframe.
• This helps place the new arm close to the original position before alignment.
• Marks help, but alignment is still required.

Step 5: Clean the Fasteners

• Use a wire brush to clean rust and dirt from the ball joint pinch bolt and control arm bolts.
• Apply penetrating oil to the fasteners and let it soak for a few minutes.

Step 6: Remove the Ball Joint Pinch Bolt

• Use an 18mm socket and 18mm wrench to remove the ball joint pinch bolt and nut at the steering knuckle.
• The steering knuckle is the metal part that holds the wheel hub and connects to the suspension.
• Discard the pinch bolt and nut if the replacement part includes new hardware.

Step 7: Separate the Ball Joint from the Steering Knuckle

• Use a ball joint separator to separate the ball joint stud from the steering knuckle.
• If needed, use a dead blow hammer to tap the separator tool, not the threaded stud.
• Use a pry bar carefully to help move the lower control arm down.
• Keep your fingers away from the joint while it separates.

Step 8: Remove the Rear Control Arm Mounting Bolt

• Use a 21mm socket and 21mm wrench to remove the rear lower control arm mounting bolt.
• If the bolt is tight, use the 1/2-inch drive breaker bar for more leverage.

Step 9: Remove the Front Control Arm Mounting Bolt

• Use an 18mm socket and 18mm wrench to remove the front lower control arm mounting bolt.
• Support the arm by hand as the last bolt comes out.
• Remove the lower control arm from the vehicle.

Step 10: Compare the New Control Arm

• Place the old and new control arms side by side.
• Confirm the ball joint, bushings, and mounting points match.
• Use needle-nose pliers to remove any shipping clips or protective covers if present.

Step 11: Install the New Control Arm

• Position the new lower control arm in the subframe.
• Install the front and rear mounting bolts by hand first.
• Use an 18mm socket, 18mm wrench, 21mm socket, and 21mm wrench only to snug the bolts for now.
• Do not fully torque the bushing bolts while the suspension is hanging.
• Hand-start bolts to avoid cross-threading.

Step 12: Connect the Ball Joint to the Steering Knuckle

• Guide the ball joint stud into the steering knuckle by hand.
• Use a pry bar carefully if you need to move the control arm into position.
• Install the ball joint pinch bolt and nut by hand.
• Use an 18mm socket and 18mm wrench to tighten the pinch bolt.
• Torque to 63 Nm (46 ft-lbs)

Step 13: Preload the Suspension

• Use the floor jack under the outer lower control arm to raise the suspension slightly.
• Raise it until the control arm is close to normal ride height.
• This prevents the rubber bushings from being twisted at rest.

Step 14: Torque the Control Arm Mounting Bolts

• Use the 1/2-inch drive torque wrench, 18mm socket, and 18mm wrench on the front control arm bolt.
• Torque to 115 Nm (85 ft-lbs)
• Use the 1/2-inch drive torque wrench, 21mm socket, and 21mm wrench on the rear control arm bolt.
• Torque to 175 Nm (129 ft-lbs)

Step 15: Reinstall the Wheel

• Install the wheel onto the hub.
• Use the 19mm lug nut socket to snug the lug nuts in a star pattern.
• Raise the vehicle slightly with the floor jack, remove the jack stands, and lower the vehicle to the ground.

Step 16: Torque the Lug Nuts

• Use the 1/2-inch drive torque wrench and 19mm lug nut socket.
• Tighten the lug nuts in a star pattern.
• Torque to 135 Nm (100 ft-lbs)

---

✅ After Repair

• ✅ Turn the steering wheel left and right while parked to check for binding or unusual noises.
• ✅ Test drive slowly at first and listen for clunks, pops, or rubbing.
• ✅ Recheck that the lug nuts are torqued after the first short drive.
• ✅ Schedule a front wheel alignment immediately. Replacing the lower control arm changes alignment angles.
• ✅ If the steering wheel is off-center or the vehicle pulls, do not delay the alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$800 per side (parts + labor)

DIY Cost: $120-$280 per side (parts only)

You Save: $330-$520 per side by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours per side.

---
