🔧 Altima - Front Door Lock Actuator Replacement

On your Altima, the “door lock actuator” is typically part of the door latch/lock actuator assembly inside the door (the unit that grabs the door striker and locks/unlocks). Replacement involves removing the interior door panel, unplugging the latch wiring, and swapping the latch/actuator assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal before unplugging door wiring to prevent shorts and accidental airbag/SRS faults.
• ⚠️ Keep the window fully up and avoid pulling on the window glass.
• ⚠️ Door inner metal edges are sharp; wear cut-resistant gloves.
• ⚠️ Don’t tear the vapor barrier (the plastic sheet behind the door panel that keeps water off electronics).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Cut-resistant work gloves
• 10mm wrench
• 1/4" drive ratchet
• 10mm socket
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Trim removal tool set (plastic)
• Pick tool (small) (specialty)
• Torx T30 bit socket
• Torque wrench (in-lb or low-range ft-lb)
• Painter’s tape
• Panel clip pliers
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly (Driver side) - Qty: 1
• Front door latch/lock actuator assembly (Passenger side) - Qty: 1
• Door panel trim clips - Qty: 1 set
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and keep the window fully up.
• Use painter’s tape to protect the painted door edge and the door handle area.
• Disconnect the battery: use a 10mm wrench to remove the negative (-) terminal and isolate it so it can’t spring back.
• Take photos as you unplug connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim pieces

• Use a trim removal tool set (plastic) to carefully pry up the small trim covers hiding screws (typically near the door pull/handle area).
• Use a Phillips #2 screwdriver to remove the exposed screws and place them in a magnetic parts tray.

Step 2: Remove the door panel

• Start at the lower edge and use the trim removal tool set (plastic) to pop the panel clips loose.
• If a clip is stubborn, use panel clip pliers to pull straight out (this helps avoid breaking the clip).
• Lift the door panel up and off the top lip near the window.
• Support the panel and unplug the electrical connectors using the pick tool (small) (specialty) only to gently lift locking tabs (don’t stab wires).

Step 3: Peel back the vapor barrier

• Use the trim removal tool set (plastic) to slowly peel the vapor barrier back from the butyl (sticky) adhesive.
• Use a work light so you can see inside the door clearly.
• Don’t stretch the plastic—peel slowly.

Step 4: Disconnect the latch/actuator wiring

• Locate the latch/actuator connector near the rear edge of the door (inside, near the latch).
• Press the connector lock and unplug it by hand; use the pick tool (small) (specialty) only if the lock tab won’t release.

Step 5: Unhook the inside handle cable/rod

• At the interior handle area, find the cable/rod going into the latch.
• Use the trim removal tool set (plastic) to open the retaining clip, then lift the cable/rod end out of its lever.
• Watch how it routes—copy it exactly later.

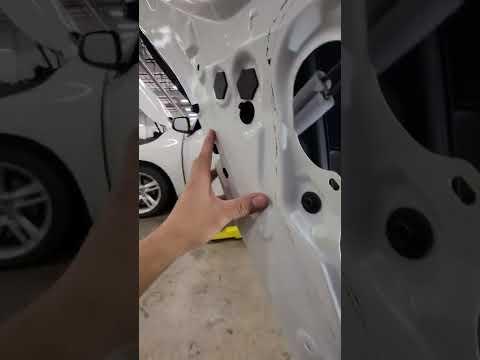

Step 6: Remove the latch/actuator assembly from the door

• Open the door and locate the latch screws on the door’s trailing edge.
• Use a Torx T30 bit socket with a 1/4" drive ratchet and 6" extension (1/4" drive) to remove the latch screws.
• Carefully maneuver the latch/actuator assembly out through the access opening in the door.

Step 7: Transfer any clips/brackets (if equipped)

• Compare old vs new latch/actuator assembly under a work light.
• If the old unit has clip-on items (like a small bracket or foam), move them over using the trim removal tool set (plastic).

Step 8: Install the new latch/actuator assembly

• Feed the new assembly into position inside the door.
• Install the latch screws by hand first to avoid cross-threading, then tighten with the Torx T30 bit socket.
• Torque to 7.5 Nm (66 in-lbs) using a torque wrench (in-lb or low-range ft-lb).
• Reconnect the latch/actuator electrical connector until it clicks.

Step 9: Reattach the inside handle cable/rod

• Hook the cable/rod end back into the latch lever by hand.
• Close the retaining clip fully so it locks the cable/rod in place.

Step 10: Reinstall the vapor barrier

• Press the vapor barrier back onto the original butyl adhesive.
• If the butyl no longer sticks, apply butyl tape (vapor barrier adhesive) before sealing it back up.

Step 11: Reinstall the door panel

• Plug in all door panel connectors by hand and confirm they’re fully seated.
• Hang the panel on the top lip near the window, then press around the perimeter to snap the clips in.
• Reinstall screws using a Phillips #2 screwdriver.
• Reinstall trim covers using the trim removal tool set (plastic).

Step 12: Reconnect the battery

• Reconnect the negative terminal using a 10mm wrench and tighten securely (snug, not over-tight).

---

✅ After Repair

• With the door open, test: power lock/unlock, key fob lock/unlock, inside handle operation.
• Close the door and confirm it latches smoothly and locks/unlocks reliably.
• If the door won’t open from inside or outside, stop and re-check the cable/rod routing and clip engagement.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $120-$320 (parts only)

You Save: $230-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
