🔧 Golf - Front Door Lock Actuator Replacement

The front door lock actuator (also called the door latch module) is the part inside the door that physically locks/unlocks the door when you use the key fob or interior switch. Replacing it requires removing the interior door panel, then unbolting the latch and swapping the electrical connector and linkages.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal before starting (the door has wiring for safety systems and you don’t want an airbag warning light).
• ⚠️ Keep the key away from the car while the battery is disconnected to prevent accidental wake-ups.
• ⚠️ Support the window glass if you loosen the carrier plate; the glass can drop suddenly.
• ⚠️ Don’t turn the ignition on with door electrical connectors unplugged.
• ⚠️ Wear safety glasses; door panel clips can pop loose unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm wrench
• 10mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" socket extension
• 6" socket extension
• Torque wrench (5-60 Nm range)
• Torx T20 bit
• Torx T30 bit
• Triple-square M8 (XZN) bit
• Trim removal tool
• Small flathead screwdriver
• Pick tool
• Needle-nose pliers
• Painter’s tape
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator (door latch module) - Qty: 1
• Door panel retaining clips - Qty: 1 set
• Butyl door membrane sealant (if the moisture barrier is disturbed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the car off, and open the window on the door you’re working on (this makes handle/trim removal easier).
• Use a 10mm wrench to disconnect the negative battery terminal, then wait 10 minutes before unplugging door connectors.
• Lay a towel on the sill and use painter’s tape on painted edges to prevent scratches.
• Take photos of connectors before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door pull/trim screws

• Use a trim removal tool to gently pry off the trim cap(s) in the inner door pull/handle area.
• Remove the exposed screws using a Torx T20 bit and 1/4" drive ratchet.
• If your door has additional screws along the bottom edge, remove them with a Torx T20 bit.
• Torque to 2 Nm (18 in-lbs) during reassembly (snug, not tight).

Step 2: Release the door panel clips and lift the panel off

• Starting at the lower corner, slide a trim removal tool between the panel and the metal door and pop the clips free.
• Work around the perimeter until all clips are released, then lift the door panel straight up and off the window ledge.
• Support the panel so it doesn’t hang by the wiring.

Step 3: Disconnect electrical connectors and the interior handle cable

• Unplug the window/lock switch connector(s) by pressing the tab with a pick tool or small flathead screwdriver (don’t force it).
• If equipped, unplug the courtesy light connector using a pick tool.
• Disconnect the interior handle cable: open the cable retainer and unhook the cable end using a pick tool or needle-nose pliers.
• Set the door panel somewhere safe and flat.

Step 4: Access the latch area (moisture barrier / carrier plate)

• Peel the moisture barrier back carefully by hand; if needed, use a trim removal tool to separate the butyl seal without tearing the barrier.
• If your Golf has a metal carrier plate blocking access, remove the bolts using a 10mm socket and 3/8" drive ratchet (some fasteners may be Torx T30 bit depending on location).
• If the carrier plate must be loosened, secure the window glass with painter’s tape to the door frame before proceeding.
• Torque to 9 Nm (80 in-lbs) for carrier plate fasteners during reassembly.

Step 5: Remove the exterior handle access cover (door edge)

• Open the door and locate the small access plug/cover on the door edge near the latch.
• Remove the plug using a small flathead screwdriver.
• Loosen the handle retaining screw inside the hole using a Torx T20 bit (do not fully remove unless it comes out easily).
• Slide the exterior handle piece as needed to free the latch linkage (movement depends on which side you’re working on).

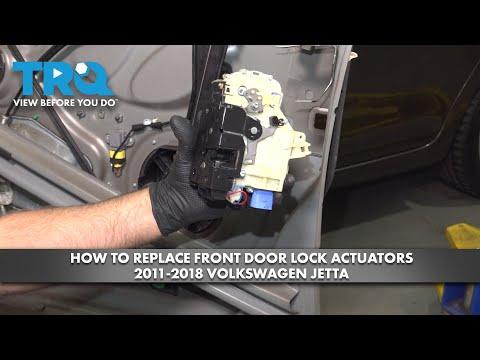

Step 6: Unbolt and remove the door lock actuator (latch module)

• At the rear edge of the door, remove the latch bolts using a Triple-square M8 (XZN) bit and 3/8" drive ratchet.
• Triple-square (XZN) is a 12-point “star” bit.
• Disconnect the actuator electrical connector by releasing the lock tab with a pick tool.
• Unhook any linkage rods/cables from the latch using a pick tool or needle-nose pliers.
• Work the latch out through the access opening, guiding cables/wiring so nothing binds.
• Torque to 8 Nm (71 in-lbs) for latch bolts during reassembly.

Step 7: Install the new actuator and reconnect everything

• Position the new actuator in the door and route it the same way the old one came out.
• Reconnect linkage rods/cables using needle-nose pliers as needed (make sure retainers fully click/lock).
• Plug in the electrical connector until it clicks.
• Install the latch bolts using a Triple-square M8 (XZN) bit, then tighten with a torque wrench to Torque to 8 Nm (71 in-lbs).

Step 8: Reassemble the door and reinstall the door panel

• Re-seat the moisture barrier; add butyl door membrane sealant if the original seal no longer sticks.
• If removed, reinstall and torque the carrier plate fasteners using a 10mm socket and torque wrench to Torque to 9 Nm (80 in-lbs).
• Reconnect the interior handle cable and all connectors using a pick tool only if needed to guide tabs.
• Hang the door panel on the top edge first, then press clips in around the perimeter by hand.
• Reinstall door panel screws using a Torx T20 bit and tighten to Torque to 2 Nm (18 in-lbs).

Step 9: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket or 10mm wrench.
• Tighten the terminal securely (snug; do not over-tighten).

---

✅ After Repair

• With the door open, test lock/unlock using the key fob and the interior switch.
• Close the door and confirm it latches smoothly and opens from inside and outside.
• Test the window switch, mirror controls (if on that door), and the door courtesy light.
• If an airbag/door warning light appears, you’ll typically need a scan tool to clear it after verifying all connectors are fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
