🔧 Land Cruiser - Front Door Lock Actuator Replacement

On your Land Cruiser, the front door lock actuator is bolted to the door latch inside the door. Replacing it means removing the interior door panel, unplugging the actuator, swapping the latch/actuator unit, then reassembling and testing.

Quick question (so I give the exact side-specific notes): Are we replacing the driver or passenger front door actuator?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before door work: the front doors have wiring for airbags and electronics.
• ⚠️ Keep the window fully up before starting; it prevents glass damage and gives more room.
• ⚠️ Use plastic trim tools, not metal screwdrivers, to avoid breaking clips and scratching panels.
• ⚠️ Support the door panel as you unplug connectors; don’t let it hang by the wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" drive ratchet
• Phillips #2 screwdriver
• Small flat plastic trim tool
• Plastic door panel clip remover
• Pick tool
• Magnetic pickup tool
• Painters tape
• Torque wrench (in-lb)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: 6-12
• Water shield butyl adhesive tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the window fully up.
• Open the hood and disconnect the negative battery cable using a 10mm socket. Wait 90 seconds before unplugging any door wiring.
• Put painters tape on the door edge/paint near the handle area to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the switch panel and hidden screws

• Use a small flat plastic trim tool to gently pry up the window/lock switch panel from the armrest.
• Unplug the switch connectors by pressing the locking tabs (the “tab” is the small plastic latch that holds the plug in).
• Remove the screws you find under/behind trim covers using a Phillips #2 screwdriver.

Step 2: Remove the interior door panel (trim panel)

• Use a plastic door panel clip remover to pop the clips around the outer edge of the door panel.
• Lift the door panel straight upward to unhook it from the top window channel.
• Unplug any remaining connectors using the pick tool only if needed to help release a stubborn tab.
• Tip: Pull near each clip to avoid cracking.

Step 3: Remove the water shield (moisture barrier)

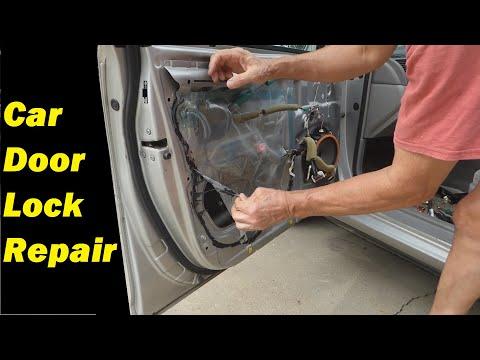

• Carefully peel back the plastic water shield.
• If the butyl adhesive stretches or won’t reseal, plan to replace it with water shield butyl adhesive tape.

Step 4: Disconnect the actuator wiring and door handle rods

• Locate the door latch/actuator at the rear edge of the door (near the striker area).
• Unplug the actuator electrical connector by pressing the tab and pulling straight out.
• Disconnect the lock/handle rods:
  • Use the pick tool to flip open the small plastic retaining clips.
  • Slide each rod out of its lever hole.
• Tip: Take a photo before removing rods.

Step 5: Remove the latch/actuator assembly from the door

• At the door edge, remove the latch mounting bolts using a 10mm socket, 1/4" drive ratchet, and 6" extension.
• Carefully work the latch/actuator assembly out through the door opening.
• If a bolt drops inside the door, retrieve it with a magnetic pickup tool.
• Install the new actuator/latch assembly in the same position.
• Torque to 7.5 N·m (66 in-lbs) on the latch mounting bolts using a torque wrench (in-lb).

Step 6: Reconnect rods, connector, and verify function before reassembly

• Reconnect each rod into its lever hole, then snap the plastic retaining clip closed by hand.
• Plug the actuator connector back in until it clicks.
• Reconnect the negative battery cable using a 10mm socket.
• Test the lock with:
  • The key fob
  • The interior lock switch
  • Manual lock knob (if equipped)
  • Inside and outside door handles (confirm it opens only when unlocked)
• Disconnect the negative battery cable again using a 10mm socket before reinstalling the water shield and panel.

Step 7: Reinstall the water shield and door panel

• Press the water shield back onto the butyl. Add water shield butyl adhesive tape anywhere it won’t stick.
• Hang the door panel on the top channel first, then press the clips in around the perimeter.
• Reinstall all screws using a Phillips #2 screwdriver.
• Reconnect the switch connectors, then snap the switch panel back in using hand pressure.

Step 8: Final test

• Reconnect the negative battery cable using a 10mm socket.
• Cycle lock/unlock 10+ times with the fob and the switch.
• Confirm the door locks and unlocks smoothly and the door opens normally from inside and outside.

---

✅ After Repair

• Confirm the water shield is fully sealed; gaps can cause water leaks and wet carpet.
• Verify window/lock switch operation and any door courtesy lights.
• If the lock still acts up, the next checks are the door harness connector fit and rod clip seating.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
