🔧 Odyssey - Front Door Lock Actuator Replacement

The front door lock actuator is the small electric motor/geared unit that locks/unlocks your door when you use the key fob or switch. On your Odyssey, it’s typically serviced as part of the door latch/actuator assembly inside the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before working in the door to avoid accidental airbag/SRS faults and to prevent the window from moving unexpectedly.
• ⚠️ Support the door panel while unplugging connectors so you don’t rip wiring.
• ⚠️ Edges inside the door can be sharp—wear gloves.
• 🛑 Keep the key fob away from the vehicle so the locks don’t cycle while your hands are inside the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Phillips #2 screwdriver
• Small flathead screwdriver
• Pick tool
• 10mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• Torx T30 bit
• Needle-nose pliers
• Torque wrench (inch-lb)
• Painter’s tape
• Magnetic pickup tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door panel trim clips - Qty: 1 set Helpful if any break
• Butyl seal tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Lower the window fully so you can reach and see inside the door easier.
• Use a 10mm socket to disconnect the negative battery cable, then wait at least 3 minutes.
• Put painter’s tape along the painted door edge to avoid scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door switch panel

• Use a trim removal tool set (plastic) to carefully pry up the window/lock switch panel.
• Unplug the electrical connectors by pressing the tabs with a small flathead screwdriver if needed.

Step 2: Remove the interior door handle trim and screws

• Use a trim removal tool set (plastic) to pop off the small trim cover behind/around the interior handle area.
• Remove the visible screws using a Phillips #2 screwdriver.

Step 3: Remove the door panel

• Starting at the bottom edge, use a trim removal tool set (plastic) to pop the door panel clips loose.
• Lift the panel straight up to unhook it from the window channel.
• Support the panel and unplug any remaining connectors using a small flathead screwdriver as needed.

Step 4: Remove the vapor barrier (moisture shield)

• Carefully peel back the plastic vapor barrier by hand.
• If the sticky seal stretches or tears, plan to reseal it later with butyl seal tape.

Step 5: Disconnect the latch cables/rods

• Locate the latch/actuator assembly toward the rear edge of the door.
• Use a pick tool and needle-nose pliers to unclip the cable/rod retainers (small plastic clips) and release the cables/rods.
• Take a photo first for reassembly.

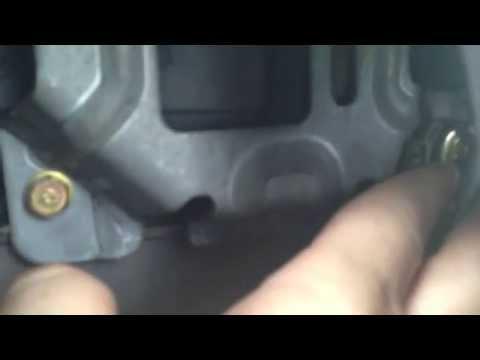

Step 6: Remove the latch/actuator assembly

• At the door edge, remove the latch mounting screws using a Torx T30 bit with a 1/4" ratchet and 6" extension (1/4" drive).
• Inside the door, remove any latch bracket bolts using a 10mm socket, 1/4" ratchet, and 6" extension (1/4" drive).
• Unplug the actuator electrical connector.
• Work the latch/actuator assembly out through the access opening. Use a magnetic pickup tool if you drop hardware.

Step 7: Install the new latch/actuator assembly

• Transfer any brackets/cables as needed, matching your photo. Use needle-nose pliers to fully seat each clip.
• Position the new assembly in the door and reconnect the electrical connector until it clicks.
• Install the door-edge latch screws using a Torx T30 bit and torque wrench (inch-lb): Torque to 71 in-lb (8 N·m).
• Install any 10mm latch/bracket bolts using a 10mm socket and torque wrench (inch-lb): Torque to 80 in-lb (9 N·m).

Step 8: Function-check before reassembly

• Reconnect the battery negative cable using a 10mm socket: Torque to 44 in-lb (5 N·m).
• With the door still open, use the key fob and the lock switch to confirm lock/unlock works smoothly.
• Open/close the door and confirm the interior/exterior handles release correctly.
• If anything binds, disconnect the battery again with the 10mm socket and recheck cable routing and clip seating.

Step 9: Reinstall the vapor barrier and door panel

• Reseal the vapor barrier using butyl seal tape so it’s fully sealed all the way around.
• Reconnect door panel connectors, then hang the panel on the window channel and press clips in by hand.
• Reinstall screws using a Phillips #2 screwdriver.
• Snap the switch panel back in using your hands and a trim removal tool set (plastic) as needed.

---

✅ After Repair

• Cycle the locks 10+ times with the fob and the interior switch to confirm consistent operation.
• Confirm the door locks with the door both open and closed.
• Check that the window switch, mirror controls, and door handle work normally.
• If any warning lights appear after battery reconnect, recheck door connectors and battery connection.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $230-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
