🔧 Mustang - Front Door Lock Actuator Replacement

On your Mustang, the “door lock actuator” is typically part of the door latch/lock assembly inside the door. Replacing it involves removing the interior door panel, peeling back the water shield, disconnecting linkages/connectors, and swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before working in the door (side airbag wiring may be present).
• ⚠️ Keep the window fully up to avoid glass damage while working inside the door.
• ⚠️ Don’t turn the ignition on with airbag-related connectors unplugged (can set warning lights).
• ⚠️ Use plastic trim tools to avoid breaking clips and scratching trim.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Pick tool (small)
• 1/4" ratchet
• 3" extension (1/4")
• 7mm socket
• 8mm socket
• 10mm socket
• Torx T20 bit
• Torx T25 bit
• Torx T30 bit
• Torque wrench (inch-pound) (specialty)
• Torque wrench (foot-pound) (specialty)
• Butyl seal tape
• Painter’s tape
• Magnetic parts tray
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel retainer clips - Qty: 4–10
• Water shield butyl adhesive - Qty: 1

---

📋 Before You Begin

• Park on level ground and make sure the window on that door is fully up.
• Turn the ignition off and remove the key/fob from the car.
• Disconnect the negative battery cable using a 10mm socket, then wait 5–10 minutes.
• Put painter’s tape along the door edge and near trim to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what you’re replacing

• On your Mustang, most “actuator” replacements are done by replacing the entire door latch/lock actuator assembly as one unit.
• If you already bought a part: check whether it’s a full latch assembly (metal latch with electrical connector) or a small motor-only actuator.
• Motor-only swaps are uncommon on this door.

Step 2: Remove the interior door handle trim and switch panel

• Use a trim removal tool set (plastic) to carefully pry up the window/lock switch panel.
• Disconnect the electrical connectors using a pick tool (small) to lift the locking tabs (a locking tab is the little clip that prevents the plug from backing out).
• Remove any small trim covers around the inside handle area using a trim removal tool set (plastic).

Step 3: Remove door panel screws

• Remove screws hidden behind trim caps and in the pull handle area using a 7mm socket and/or Torx T20 bit (your door may use one or the other depending on build).
• Keep screws organized in a magnetic parts tray.

Step 4: Remove the door panel

• Start at the bottom edge and pop the panel clips loose using a trim removal tool set (plastic).
• Lift the door panel upward to unhook it from the top window channel.
• Disconnect any remaining connectors (courtesy light, speaker, etc.) using a pick tool (small) as needed.

Step 5: Disconnect the interior handle cable(s)

• At the inside handle, you’ll see a cable with a ball-end and a plastic retainer.
• Rotate the retainer open and lift the cable out by hand (use a flashlight for visibility).
• Take a photo first for easy reassembly.

Step 6: Peel back the water shield

• Carefully peel the plastic water shield back enough to access the latch area.
• Work slowly so the butyl adhesive stays on the plastic; use butyl seal tape later if it won’t reseal.

Step 7: Disconnect the latch electrical connector

• Locate the latch/actuator electrical connector near the rear edge of the door.
• Release the connector lock using a pick tool (small), then unplug it by hand.

Step 8: Disconnect latch rods/cables (if equipped)

• Some linkages are rods with colored plastic clips; others are cables.
• Use a pick tool (small) to flip the clip open, then slide the rod out.
• Don’t force clips; they snap easily.

Step 9: Remove the exterior handle fasteners (if required for your door)

• Some Mustang door latch removals require loosening/removing the outer handle fastener(s) accessed through an inner door hole.
• Use an 8mm socket or Torx T30 bit (varies) to loosen/remove as needed.
• Do not fully remove the handle unless the latch will not come out otherwise.

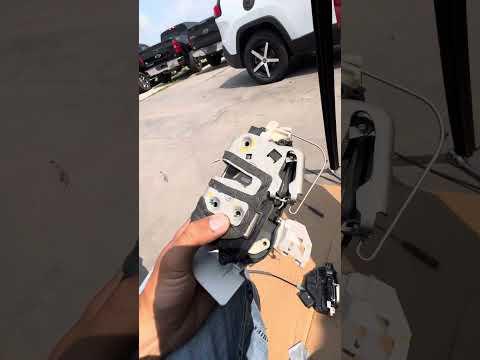

Step 10: Remove the latch/actuator assembly from the door

• Open the door and remove the latch screws on the rear door edge using a Torx T30 bit.
• Pull the latch inward and maneuver it out through the access opening.
• Torque: I need one detail before I can give the exact factory torque for those latch screws.

Step 11: Install the new latch/actuator assembly

• Position the new latch into the door the same way the old one came out.
• Start the rear-edge latch screws by hand to avoid cross-threading, then snug using a Torx T30 bit.
• Reconnect all rods/cables and confirm each clip is fully locked.
• Reconnect the latch electrical connector until it clicks.

Step 12: Reseal the water shield and reinstall the door panel

• Press the water shield back into place; add butyl seal tape where it won’t stick.
• Reconnect all door panel electrical connectors by hand.
• Hang the panel on the top channel, then press the clips in around the edges.
• Reinstall screws using a 7mm socket and/or Torx T20 bit.

Step 13: Reconnect battery and function test

• Reconnect the negative battery cable using a 10mm socket.
• Test: lock/unlock from the switch, key fob, and by opening the door from inside/outside.
• Confirm the door fully latches and opens normally before driving.

---

✅ After Repair

• Cycle locks 10+ times using the fob and interior switch to confirm consistent operation.
• Verify the window and mirror switches work and that the door panel is fully clipped (no rattles).
• If an airbag warning appears, the car may need a scan tool to clear codes after checking connectors.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$700 (parts + labor)

DIY Cost: $120–$350 (parts only)

You Save: $230–$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
