🔧 F-250 Super Duty - Front Door Lock Actuator Replacement

On your F-250, the “door lock actuator” is typically integrated into the door latch assembly. Replacing it means removing the interior door panel, peeling back the moisture barrier, disconnecting the linkage/cables, and swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first time)

---

⚠️ Safety & Precautions

• Work with the window fully up to protect the glass and your hands.
• Disconnect the negative battery cable to reduce risk of electrical shorts and warning lights.
• Don’t tear the moisture barrier (plastic sheet). It prevents water leaks and wind noise.
• Support the door panel during removal so it doesn’t hang by the wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• 8mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4" drive)
• Torx T20 bit
• Torx T27 bit
• Torx T30 bit
• Trim clip remover (specialty)
• Small flathead screwdriver
• Needle-nose pliers
• Pick tool
• Painter’s tape
• Torque wrench (in-lb/Nm capable)
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door trim panel retaining clips - Qty: 6-12
• Butyl tape (moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the window fully up.
• Turn the ignition off and remove the key.
• Use a 10mm socket to disconnect the negative battery cable and wait 2 minutes.
• Decide which door: driver or passenger. The steps are the same, just mirrored.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door pull/handle trim and fasteners

• Use a trim clip remover (specialty) to gently pry off the trim pieces around the interior handle and the door pull. A trim clip remover is a forked plastic/metal tool that pops clips without breaking them.
• Remove any exposed screws using a 7mm socket or Torx T20 bit (fasteners vary by panel location).
• Place painter’s tape on painted edges to prevent scratches while you work.

Step 2: Remove the window/lock switch panel

• Use a trim clip remover (specialty) to pry up the switch panel from the armrest.
• Disconnect the electrical connectors by releasing the locks with a small flathead screwdriver.
• Tip: Don’t pull wires—pull the connector body.

Step 3: Remove the interior door panel

• Starting at the bottom edge, use the trim clip remover (specialty) to pop the panel clips free around the perimeter.
• Lift the door panel straight up and off the window channel.
• Disconnect remaining connectors (courtesy light/speaker) using the small flathead screwdriver.
• Unhook the inside handle cable/rod using needle-nose pliers if needed (note how it routes before removal).

Step 4: Peel back the moisture barrier (plastic sheet)

• Carefully peel back the barrier enough to access the latch area, using a pick tool to separate sticky butyl without tearing the plastic.
• Use shop rags to keep the adhesive clean (dirt reduces sealing).

Step 5: Disconnect the latch electrical connector

• Locate the latch/actuator connector near the rear edge of the door (latch area).
• Release the connector lock with a pick tool or small flathead screwdriver, then unplug it.

Step 6: Detach linkage/cables from the latch

• Disconnect the inside handle cable from the latch (usually a cable end sitting in a lever, with a clip retaining the cable housing).
• Disconnect the outside handle rod/cable (varies by door; use needle-nose pliers to rotate the plastic retainer and lift the rod out).
• Tip: Take a photo before unhooking anything.

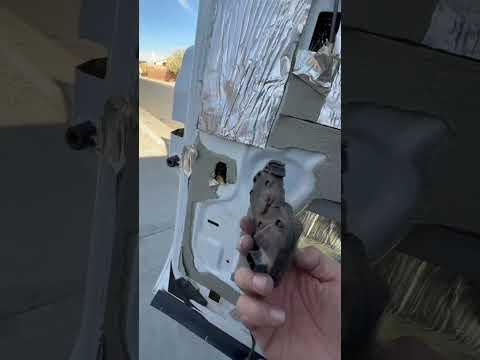

Step 7: Remove the latch/actuator assembly from the door

• At the rear edge of the door, remove the latch mounting fasteners using a Torx T30 bit.
• Pull the latch assembly out through the large access opening in the door.
• If a bracket blocks removal, remove it using an 8mm socket and 1/4" drive ratchet.

Step 8: Install the new latch/actuator assembly

• Transfer any clips or foam pieces from the old unit to the new one.
• Position the new latch into the door and start the bolts by hand.
• Tighten latch fasteners using a Torx T30 bit and torque wrench: Torque to 9 Nm (80 in-lbs).
• Reconnect the inside and outside handle linkage/cables (verify clips are fully seated).
• Reconnect the latch electrical connector until it clicks.

Step 9: Re-seal the moisture barrier

• Press the barrier back into the butyl adhesive all the way around.
• If the butyl no longer sticks well, apply butyl tape and press firmly to seal.

Step 10: Reinstall the door panel and switches

• Reconnect all electrical connectors (speaker, lights, switch panel).
• Hang the panel on the top edge (window channel) and press downward to seat.
• Press around the perimeter to snap in the clips.
• Reinstall screws using a 7mm socket or Torx T20 bit (match what came out).
• Reinstall trim covers using hand pressure.

Step 11: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Test from inside: lock/unlock switch, then open/close the door to confirm the latch releases smoothly.
• Test from outside: key/fob lock/unlock, then pull the exterior handle to verify it opens normally.
• Confirm the door ajar light works correctly and the lock knob/button moves normally.
• If the door won’t open or won’t lock, recheck that each linkage clip is fully latched.

---
