🔧 Challenger - Front Door Lock Actuator Replacement

The front door lock actuator is the electric motor/latch unit inside the door that locks and unlocks the door. Replacement requires removing the interior door panel, peeling back the water shield, then swapping the actuator/latch and reconnecting the rods and wiring.

Before I start the exact steps: which front door are you replacing it on — driver or passenger?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before unplugging door wiring to reduce airbag/short risk.
• ⚠️ Do not turn the ignition on with door connectors unplugged (can set fault codes).
• ⚠️ Support the window glass if you loosen any glass-related fasteners.
• ⚠️ Use trim tools to avoid cracking clips and panels.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4")
• Torx T20 driver
• Torx T30 driver
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Pick tool
• Needle-nose pliers
• Painter’s tape
• Magnetic parts tray
• Flashlight
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly (correct side) - Qty: 1
• Door panel trim clips (assortment) - Qty: 1
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, key out, and keep the window fully up.
• Open the door you’re working on fully and protect the paint edge with painter’s tape.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Trim tools prevent “chewed up” plastic.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim pieces

• Use a plastic trim removal tool set to gently pry up the small trim covers at the door pull/handle area.
• Use a flashlight to locate hidden screws behind trim caps.

Step 2: Remove door panel screws

• Remove the screws in the armrest/door pull using a Phillips #2 screwdriver or Torx T20 driver (varies by panel).
• Remove any lower/edge screws using a Torx T20 driver.
• Place screws in a magnetic parts tray so they don’t disappear in the carpet.

Step 3: Pop the door panel clips free

• Start at the lower corner and use a plastic trim removal tool set to pry outward until the clips pop.
• Work around the perimeter a clip at a time. Don’t yank—steady pressure is safer.

Step 4: Lift the door panel off and unplug wiring

• Lift the panel upward to unhook it from the top window ledge.
• Unplug the switch panel and courtesy light using a pick tool to release connector locks (the lock tab is a small plastic latch you lift/slide first).

Step 5: Peel back the water shield

• Carefully peel the plastic water shield back using a plastic trim removal tool set.
• If the adhesive tears or won’t re-stick, plan to reseal it with butyl tape.

Step 6: Disconnect the lock/handle linkage

• Locate the metal rods/cables going to the latch.
• Use a pick tool to open the small plastic retaining clips, then slide the rod out.
• Take a photo first for reassembly.

Step 7: Unplug the actuator/latch electrical connector

• Press the connector lock tab and unplug it (use a pick tool only if needed—don’t force it).

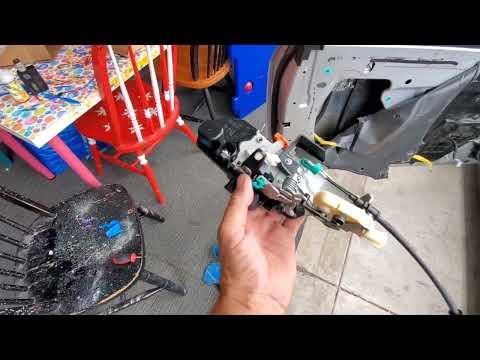

Step 8: Remove the latch/actuator from the door

• At the door’s trailing edge, remove the latch fasteners using a Torx T30 driver.
• Support the latch while removing the last fastener so it doesn’t drop inside the door.
• Maneuver the latch/actuator assembly out through the access opening.

Step 9: Install the new actuator/latch

• Transfer any brackets/clips from the old unit to the new one using needle-nose pliers if required.
• Place the new unit into position and start the fasteners by hand.
• Tighten the latch fasteners with a Torx T30 driver to Torque to 8 Nm (71 in-lbs).

Step 10: Reconnect linkage and wiring

• Reconnect the rods/cables and close the retaining clips using a pick tool.
• Plug in the electrical connector until it clicks.

Step 11: Reseal the water shield

• Press the water shield back into place firmly by hand.
• If needed, apply butyl tape along the edge, then press the shield into it to seal.

Step 12: Reinstall the door panel

• Reconnect all electrical connectors.
• Hang the panel on the top ledge, then press clips in around the perimeter using your hands.
• Reinstall screws using a Torx T20 driver or Phillips #2 screwdriver (same as removed).

Step 13: Reconnect battery

• Reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• Test lock/unlock with the key fob and the interior switch.
• Test exterior handle and interior handle operation (make sure the door opens normally).
• Verify the window switch works and the courtesy light turns on.
• If the panel rattles, a clip may be broken—replace missing clips.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
