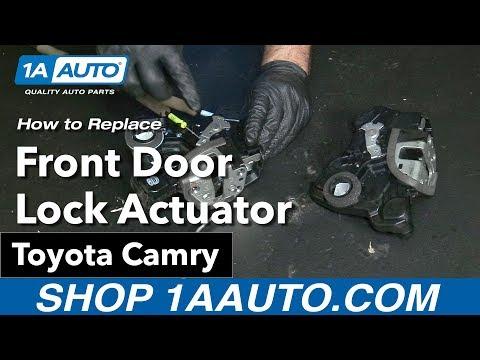

🔧 Front Door Lock Actuator - Replacement

The front door lock actuator on your Camry is typically serviced as part of the latch assembly. This job requires removing the interior door panel, disconnecting the wiring, and swapping the actuator/latch assembly inside the door.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before unplugging any door connectors.
• Wait at least 90 seconds after battery disconnect before working near the door wiring.
• Handle the door panel carefully so you do not break clips or pull wiring loose.
• Keep hands clear of sharp door metal edges.
• If your door has side airbag wiring, do not probe those connectors with test lights or meters.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• Ratchet
• Extension bar
• Phillips screwdriver
• Trim removal tool
• Small pick tool
• Needle-nose pliers
• Torque wrench
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator assembly - Qty: 1
• Door panel clip set - Qty: 1
• Moisture barrier adhesive or sealant - Qty: 1

---

📋 Before You Begin

• Park on level ground and engage the parking brake.
• Lower the window if possible to make panel removal easier.
• Disconnect the negative battery cable using a 10mm socket.
• Keep the screws and clips organized by location.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door panel

• Use a trim removal tool to pry off the trim caps covering the screws.
• Remove the visible screws with a Phillips screwdriver and 10mm socket.
• Use the trim tool to pop the door panel clips free around the edges.
• Lift the panel upward to release it from the window ledge.
• Unplug the switch connectors and light connector before setting the panel aside.

Step 2: Remove the moisture barrier

• Carefully peel back the plastic moisture barrier.
• Use a small pick tool to lift the adhesive without tearing the barrier.
• Try to keep the adhesive clean.

Step 3: Access the actuator and latch

• Move any access covers or speaker parts that block the latch area.
• Use a 12mm socket with an extension bar to remove the latch mounting bolts.
• Support the latch assembly as you remove the last fastener.

Step 4: Disconnect the rods, cables, and connector

• Use a small pick tool and needle-nose pliers to release the lock and handle link clips.
• Unplug the electrical connector from the actuator.
• Note the routing of each rod and cable before removing them.

Step 5: Remove the old actuator assembly

• Lift the latch/actuator assembly out of the door opening.
• If your replacement part is separate, transfer any brackets or rods to the new actuator.
• Inspect the linkage clips for damage before reusing them.

Step 6: Install the new actuator assembly

• Place the new front door lock actuator assembly into position.
• Reconnect all rods, cables, and clips exactly as removed.
• Plug in the electrical connector until it clicks.
• Install the mounting bolts and Torque to 8 Nm (71 in-lbs).

Step 7: Reassemble the door

• Press the moisture barrier back into place and reseal the edges.
• Reconnect all switch connectors and the courtesy light connector.
• Hook the top of the door panel on first, then press the clips into place.
• Reinstall the screws and trim caps.

Step 8: Reconnect the battery and test

• Reconnect the negative battery cable with a 10mm socket.
• Test the lock switch, key fob, inside handle, and outside handle.
• Make sure the door locks and unlocks smoothly.

---

✅ After Repair

• Cycle the lock several times from inside and outside the vehicle.
• Check that the door panel is fully seated and does not rattle.
• Confirm the window switch and mirror switch still work.
• If the lock does not work, recheck the connector and linkage clips.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
