Assumption: This covers one front door lock actuator on your Camry. Left and right sides are very similar.

🔧 Door Lock Actuator - Replacement

The front door lock actuator is part of the latch assembly inside the door. To replace it, you need to remove the interior trim panel, disconnect the linkages and wiring, then swap the latch/actuator assembly and reassemble the door.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the 12V battery negative terminal before removing the door trim panel. Hybrid vehicles still use a standard 12V system for the locks and airbags.
• Wait at least 90 seconds after disconnecting the battery before working near the door trim. Side airbags may be present in the door area.
• Do not turn the ignition on with the door side airbag connector unplugged.
• Handle the door panel carefully so you do not break the clips.
• The door latch has sharp edges. Wear gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch ratchet
• Phillips screwdriver
• Trim panel removal tool
• Small flat-blade screwdriver
• Pick tool
• Needle-nose pliers
• Torque wrench
• Plastic pry tools
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: 1 set
• Door handle bezel clips - Qty: 1 set
• Butyl vapor barrier adhesive - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the window glass fully if the lock still works, to make panel handling easier.
• Save any radio or memory settings before disconnecting the battery.
• Disconnect the 12V battery negative terminal using a 10mm socket.
• Wait at least 90 seconds before unplugging any door connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

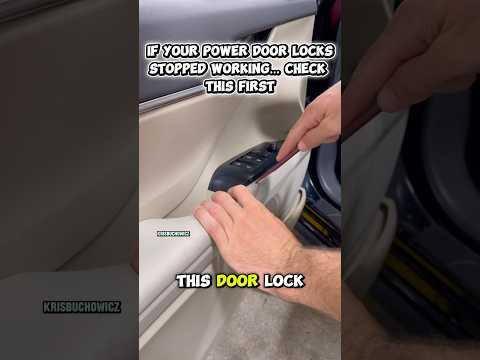

• Use a trim panel removal tool to pop off the small trim covers around the door pull and handle area.
• Use a Phillips screwdriver to remove the visible screws.
• Use a plastic pry tool to release the door panel clips around the perimeter.
• Lift the panel upward to unhook it from the top window ledge.
• Work slowly to avoid broken clips.

Step 2: Disconnect the door wiring

• Use a small flat-blade screwdriver to release the electrical connectors for the window switch and any courtesy light.
• If equipped, unplug the speaker connector and any additional harness clips attached to the panel.
• Set the door panel aside on a clean surface.

Step 3: Remove the vapor barrier

• Use a plastic pry tool to carefully peel back the door vapor barrier.
• Save the adhesive so you can reuse it if it still sticks.
• Keep the barrier clean so it seals properly during reassembly.

Step 4: Disconnect the latch linkages

• Use a pick tool or small flat-blade screwdriver to release the rod clips from the interior handle and lock rods.
• Use needle-nose pliers if a clip is tight or hard to reach.
• Note the position of each rod before removal.

Step 5: Remove the exterior door handle hardware if needed

• Use a 10mm socket to remove the access fastener inside the door edge if required for handle removal.
• Slide the exterior handle out carefully if it blocks latch removal.
• Keep all small retainers organized.

Step 6: Remove the latch/actuator assembly

• Use a 10mm socket and 1/4-inch ratchet to remove the latch mounting bolts at the rear edge of the door.
• Support the latch with one hand while removing the last bolt.
• Rotate and maneuver the latch assembly out through the service opening in the door.
• A flashlight helps a lot here.

Step 7: Install the new latch/actuator assembly

• Feed the new assembly into the door opening in the same orientation as the old unit.
• Start the mounting bolts by hand using a 10mm socket and 1/4-inch ratchet.
• Torque to 7 N·m (62 in-lbs).
• Reconnect the lock rods and snap the clips fully closed.
• Reconnect any electrical connectors on the latch.

Step 8: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place so it seals all the way around.
• Reconnect the door panel electrical connectors.
• Hook the top of the panel onto the window ledge first, then press the clips in around the edges.
• Reinstall all screws and trim covers using a Phillips screwdriver and trim panel removal tool.

Step 9: Reconnect the battery and test

• Reconnect the 12V battery negative terminal using a 10mm socket.
• Test the door lock with the key fob, interior switch, and outside keyless entry if equipped.
• Check that the inner and outer handles open the door correctly.

---

✅ After Repair

• Verify the door locks and unlocks several times.
• Make sure the window switch, speaker, and courtesy light still work.
• Confirm the door closes fully and the latch holds securely.
• If the keyless entry or power lock still acts up, recheck the electrical connector at the latch.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $230-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
