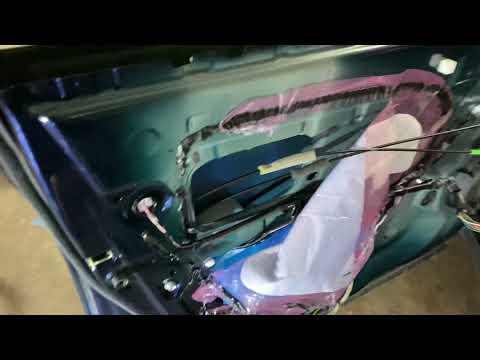

🔧 RAV4 - Front Door Lock Actuator Replacement

The front door lock actuator is built into the latch assembly on your RAV4, so the repair usually means removing the inner door panel, moisture barrier, and latch assembly. Once the new unit is installed, you’ll test the lock, keyless entry, and door handle operation before reassembling the door.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the 12V battery negative terminal before removing the door panel. This helps prevent accidental short circuits and airbag warning lights.
• The front door contains a side airbag. Do not probe yellow airbag connectors.
• Use care around the window glass and sharp door skin edges.
• Support the door panel as you remove the last fasteners so it does not bend or crack.
• Do not operate the window while the latch, wiring, or panel is partially removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• Phillips screwdriver
• Trim removal tool
• Torx T30 screwdriver
• Small pick tool
• Flat blade trim tool
• Ratchet
• Extensions
• Torque wrench
• Needle-nose pliers
• Safety glasses
• Mechanic gloves
• Panel clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator assembly - Qty: 1
• Door panel clip set - Qty: 1
• Door handle cable clips - Qty: 1
• Butyl door vapor barrier adhesive - Qty: 1
• Foam sealing tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the front door fully.
• Lower the window glass all the way down before disconnecting the battery. This gives you room to work.
• Turn the ignition off and remove the key fob from the vehicle.
• Disconnect the negative battery cable with a 10mm socket and wait at least 90 seconds before touching the door wiring.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim panel

• Use a trim removal tool to pop off the small trim covers in the pull handle and around the door release area.
• Use a Phillips screwdriver and 10mm socket to remove the visible screws under the covers and in the armrest area.
• Use a panel clip removal tool to release the plastic clips around the perimeter of the door panel.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect the electrical connectors for the window switch and speaker if equipped.

Step 2: Remove the door vapor barrier

• Use a flat blade trim tool to carefully peel back the door vapor barrier.
• Keep the adhesive clean so it can be reused, or replace it with new butyl door vapor barrier adhesive.
• Take your time here.

Step 3: Disconnect the latch and handle cables

• Use a small pick tool to release the cable ends from the inside handle and door latch levers.
• Unclip the cable housings from their brackets.
• Disconnect any latch wiring connector attached to the actuator.

Step 4: Remove the outer handle access fasteners

• Open the door and remove the access plug on the door edge.
• Use a Torx T30 screwdriver or 12mm socket to remove the exterior handle retaining fastener, depending on door-side configuration.
• Slide the exterior handle slightly as needed to free it from the rod or cable connection.

Step 5: Remove the latch and actuator assembly

• Use a 12mm socket and ratchet with extensions to remove the latch mounting bolts from the door edge.
• Lower the window glass if needed for clearance while guiding the assembly out.
• Carefully maneuver the latch/actuator assembly out through the large service opening.
• Torque note for installation: Torque to 7.8 Nm (69 in-lbs) on the latch mounting bolts.

Step 6: Transfer any linkage parts if needed

• If your replacement unit does not include all rods or clips, transfer them from the original assembly one at a time.
• Use needle-nose pliers for retaining clips if they are tight.
• Replace any broken clips before installation.

Step 7: Install the new actuator/latch assembly

• Feed the new assembly into the door cavity and line it up with the mounting holes.
• Use the 12mm socket to reinstall the latch bolts by hand first, then tighten evenly.
• Torque to 7.8 Nm (69 in-lbs).
• Reconnect the latch wiring connector and any rod or cable connections.

Step 8: Reconnect and test before reassembly

• Reconnect the 12V battery negative cable with a 10mm socket.
• Test the power lock, key fob, inside handle, outside handle, and child lock if equipped.
• Make sure the lock cycles smoothly and the door opens from both sides.
• Test it now, not after trim goes on.

Step 9: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place using the original adhesive or new butyl door vapor barrier adhesive.
• Reconnect the window switch and speaker connectors.
• Hook the top of the panel onto the window ledge and press the clips back into place.
• Reinstall all screws with the Phillips screwdriver and 10mm socket.
• Reinstall all trim covers.

---

✅ After Repair

• Cycle the door lock at least 10 times with the key fob and interior switch.
• Verify the door latches securely and releases normally.
• Check the window operation and make sure the panel does not rattle.
• Confirm there are no warning lights on the dash after startup.
• If the door still does not lock or unlock correctly, recheck the cable routing and electrical connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
