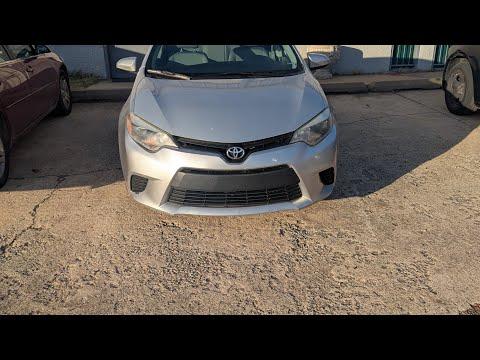

🔧 Corolla - Front Door Lock Actuator Replacement

You’ll be replacing the front door lock actuator, which is the small electric unit inside the door that locks and unlocks the latch. On your Corolla it’s integrated with the door latch, so you remove the latch/actuator as one assembly and install a new unit. This job is mostly careful trim work and working inside tight spaces.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal before working: this prevents short circuits and avoids accidental window or lock operation.
• ⚠️ Work with the window fully up so the glass is out of the way.
• ⚠️ Use care around side airbag wiring inside the door; do not pull or probe any yellow connectors.
• ⚠️ Do not slam the door until you confirm the latch and inside/outside handles all work correctly.
• ⚠️ Keep track of screws and clips; forcing parts can crack the door panel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 1/4" drive ratchet
• 🛠️ 1/4" drive extension (3–6")
• 🛠️ Phillips #2 screwdriver
• 🛠️ Flat trim removal tool (plastic)
• 🛠️ Pick tool or small flat screwdriver
• 🛠️ Torx T30 driver or bit
• 🛠️ Torque wrench (inch-lb or low-range ft-lb)
• 🛠️ Panel clip pliers (specialty)
• 🛠️ Needle-nose pliers
• 🛠️ Work light
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses
• 🛠️ Masking tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front door lock actuator with latch assembly (driver or passenger side) - Qty: 1
• 🔩 Door panel clips - Qty: 6–10 (optional but recommended)
• 🔩 Door vapor barrier butyl tape/sealant - Qty: 1 roll (if original seal is damaged)

---

📋 Before You Begin

• 📝 Park the Corolla on level ground, set the parking brake, and switch ignition OFF.
• 📝 Make sure the window on the door you are working on is fully closed.
• 📝 Open that front door fully; you’ll be working mostly from the inside edge.
• 📝 Disconnect the battery: use a 10mm socket to loosen the negative terminal clamp and set the cable aside so it cannot spring back.
• 📝 Place a towel on the sill and floor to protect paint and catch dropped clips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove trim pieces and door panel screws

• Use the flat trim removal tool to gently pry off the small plastic cover behind the interior door handle (the silver/black handle you pull to open the door).
• Use a Phillips #2 screwdriver to remove the screw hidden behind that cover.
• Use the flat trim removal tool to pry up the window/lock switch panel in the armrest from the rear edge, then lift it up.
• Unplug the electrical connector on the switch by pressing the tab with your finger or a pick tool, then set the switch panel aside.
• With the switch panel removed, use the Phillips #2 screwdriver to remove the screw inside the armrest pocket.
• Check all recesses for hidden screws.

Step 2: Remove the door panel

• Starting at the bottom edge of the panel, slide the flat trim removal tool between the panel and the metal door to pop the first clip.
• Work your way around the sides and bottom, popping each clip. Panel clips can be stiff; you can also use panel clip pliers if you have them.
• Once the clips are free, lift the entire panel straight up to unhook it from the top edge at the window line.
• Do not pull it away completely yet—there are still cables and connectors attached.
• Support the panel with one hand or rest it gently on a box or stool.

Step 3: Disconnect door panel cables and wiring

• Behind the interior handle you will see one or two Bowden cables (small cables with plastic ends) clipped into the handle.
• Use your needle-nose pliers or fingers to unclip the plastic retainers from the handle, then rotate the cable ends out of their slots.
• Unplug any electrical connectors for the courtesy light or speaker using your fingers or a pick tool to press the tabs.
• Remove the door panel from the car and set it somewhere safe, face up.

Step 4: Remove vapor barrier and expose latch/actuator

• The thin plastic sheet on the door is the vapor barrier; it keeps moisture out of the cabin.
• Carefully peel it back in the rear corner near the door latch using your hands or a flat trim removal tool. Try not to tear it.
• Use masking tape to temporarily hold the loose plastic up and out of your way.
• Keep the sticky butyl sealant clean for reuse.

Step 5: Disconnect linkage rods and cables from latch/actuator

• Look inside the door at the rear edge where the latch is (where the door catches on the car body).
• You’ll see metal rods and/or a cable going from the latch/actuator to the inside handle and lock knob.
• Use a pick tool or needle-nose pliers to flip open the small plastic retainers that hold the rods in place, then slide the rods out of their clips.
• Unplug the electrical connector from the actuator using your fingers or a pick tool to release the tab.
• Take a photo of how rods and cables are routed.

Step 6: Remove outer latch/actuator mounting bolts

• On the outer rear edge of the door (where the latch engages the striker), locate the three Torx screws holding the latch/actuator assembly.
• Use a Torx T30 driver with your 1/4" ratchet (and extension if needed) to remove these three screws.
• Support the latch from inside the door with one hand while removing the last screw so it doesn’t drop.
• Factory spec is light: when reinstalling, torque to about 9 Nm (80 in-lbs).

Step 7: Free the exterior handle cable and latch assembly

• The latch/actuator is connected to the outside door handle by a cable.
• From inside the door, follow the cable up toward the handle. It will be clipped along the door shell.
• Use the flat trim removal tool or needle-nose pliers to release the cable from its clips.
• At the latch/actuator end, unclip the cable housing and rotate the cable end out of its lever using your fingers or needle-nose pliers.
• Carefully maneuver the latch/actuator assembly out through the large opening in the inner door panel. You may need to tilt and rotate it.
• Be patient; do not force the assembly.

Step 8: Transfer any components to the new actuator (if needed)

• Place the old and new latch/actuator assemblies side by side on a clean surface.
• If your Corolla’s design has any separate brackets, clips, or rod retainers on the old unit, move them to the new one using a Phillips #2 screwdriver or pick tool as needed.
• Make sure all levers and connection points match exactly.

Step 9: Install the new latch/actuator assembly

• Carefully feed the new latch/actuator into the door through the same opening, guiding the exterior handle cable and link rods into place.
• Align the latch with the opening at the rear edge of the door.
• From the outside edge, install the three Torx screws by hand a few turns.
• Use the Torx T30 driver and ratchet to snug them evenly, then torque to about 9 Nm (80 in-lbs). Do not overtighten.
• Re-clip the exterior handle cable along the factory routing using your fingers or needle-nose pliers.

Step 10: Reconnect linkage rods, cable, and electrical connector

• Reinstall the metal rods into their correct holes on the latch levers, following your photo from earlier.
• Snap the plastic retainers closed over the rods using your fingers or needle-nose pliers.
• Reconnect any inside-handle cable to the latch and clip the cable housing into its bracket.
• Plug the electrical connector back into the actuator until it clicks.
• Double-check nothing is twisted or rubbing.

Step 11: Temporary test before closing the door

• Reconnect the battery negative terminal using the 10mm socket and ratchet. Torque to about 5 Nm (45 in-lbs)—just snug.
• Without the door panel installed, close the door latch with a screwdriver (simulate the door striker) while the door itself is open.
• Use the key fob or lock switch to lock and unlock; watch the latch move.
• Operate the inside handle cable by hand to make sure it opens the latch correctly.
• Use the outside handle to confirm it releases the latch.
• Pull the inside handle twice to “open” the latch, or use the screwdriver to release it, then test with the actual door gently. Make sure it opens and closes smoothly.
• Disconnect the battery negative again before reassembly to be safe.

Step 12: Refit vapor barrier and door panel

• Press the vapor barrier back into place, making sure it seals all the way around. Add new butyl sealant if any areas are loose.
• Reconnect any speaker or light connectors in the door using your fingers or pick tool for tabs.
• Reconnect the Bowden cables to the interior handle (hook the ends into their slots and clip the housings back into the handle bracket).
• Hang the door panel on the top edge of the door at the window channel, then press it down to seat it.
• Align the clips and press around the edges of the panel with your hands to snap all clips in place.

Step 13: Reinstall screws and switch panel

• Reinstall the screw in the armrest pocket using the Phillips #2 screwdriver and torque to about 7 Nm (60 in-lbs)—snug only.
• Plug the connector back into the window/lock switch panel and snap the panel back into the armrest by hand.
• Reinstall the screw behind the interior handle trim with the Phillips #2 screwdriver and torque to about 7 Nm (60 in-lbs).
• Snap the small trim cover back over that screw.

Step 14: Final battery connection and functional test

• Reconnect the battery negative terminal again using the 10mm socket and ratchet. Torque to about 5 Nm (45 in-lbs).
• Close the door gently.
• Use the key fob to lock and unlock several times; confirm you hear and feel the actuator working and the lock knob moving correctly.
• Check the inside door handle opens the door when locked/unlocked as expected.
• Check the outside handle and key (if equipped) operate smoothly.
• Verify window and mirror switches on that door work normally.

---

✅ After Repair

• 🔎 Walk around the car and confirm all doors still lock/unlock properly from the key fob and interior switch.
• 🔎 Listen for unusual noises from the repaired door when locking/unlocking (grinding or loud clicking is not normal).
• 🔎 Check for any rattles from the repaired door while driving over bumps; if present, a clip or screw may not be fully seated.
• 🔎 Over the next few days, verify the door never bounces back open after closing; if it does, the latch may not be aligned or fully engaging.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$400 (parts + labor)

DIY Cost: $80–$160 (parts only)

You Save: $170–$240 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
