🔧 Front Door Lock Actuator - Replacement

This job involves removing the interior door trim, releasing the lock module from the door, and transferring any attached hardware as needed. On your Jetta, the actuator is part of the latch assembly, so replacing it carefully is important to avoid breaking clips or damaging the window seal.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The door has side airbag wiring and electrical connectors.
• Wait at least 10 minutes after battery disconnect before working near door wiring.
• Use care around the side impact airbag area in the door.
• Support the door trim panel so it does not hang by wiring.
• Do not cycle the power locks with the latch removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• Trim panel removal tool
• Pick tool
• Ratchet
• 10mm socket
• Small flat blade screwdriver
• Torque wrench
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator assembly - Qty: 1
• Door vapor barrier butyl seal material - Qty: 1
• Door trim clip set - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the window fully before disconnecting the battery if possible.
• Disconnect the negative battery cable using a 10mm socket.
• Remove the key from the vehicle and keep it away from the car.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a trim panel removal tool to carefully pop out the trim covers and release the visible screws.
• Use a Torx T20 screwdriver to remove the screws around the handle and lower panel.
• Gently pry the door panel away from the door frame and lift it up and off the window ledge.
• Disconnect the electrical connectors from the door panel. Support the panel as you unplug it.

Step 2: Remove the vapor barrier

• Use a small flat blade screwdriver and a trim tool to carefully lift the vapor barrier without tearing it.
• Peel it back enough to access the lock actuator and linkage area.
• Keep the adhesive clean so the barrier can be resealed later.

Step 3: Disconnect the lock actuator hardware

• Use a Torx T25 screwdriver to remove the actuator/latch fasteners inside the door.
• Use a pick tool to release any linkage clips or cable retainers attached to the latch.
• Disconnect the electrical connector from the actuator.

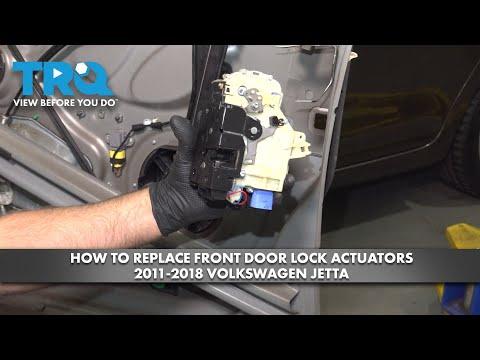

Step 4: Remove the latch and actuator assembly

• Use a Torx T30 screwdriver to remove the door edge latch fasteners.
• Slide the latch and actuator assembly out through the service opening in the door.
• Rotate the assembly slowly to clear the window track.

Step 5: Install the new actuator assembly

• Position the new actuator assembly into the door opening.
• Use the Torx T30 screwdriver to install the door edge fasteners.
• Torque to 8 Nm (71 in-lbs).
• Reconnect the electrical connector and any linkage clips.

Step 6: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place using the original adhesive or new butyl seal material.
• Reconnect all door panel electrical connectors.
• Hang the door panel on the window ledge, then press the clips in around the perimeter.
• Use the Torx T20 screwdriver to reinstall all door panel screws.
• Torque to 2 Nm (18 in-lbs) for trim screws.

Step 7: Restore power and test the lock

• Reconnect the negative battery cable using a 10mm socket.
• Test the lock and unlock function with the key fob and interior switch.
• Check that the door opens from inside and outside correctly.

---

✅ After Repair

• Cycle the lock several times and confirm smooth operation.
• Make sure the window, mirror switch, and speaker work after reassembly.
• Listen for air leaks or rattles around the door panel.
• If the lock still does not work, scan the door module for fault codes.

---

💰 DIY vs Shop Cost

Shop Cost: ₹10,000-₹18,000 (parts + labor)

DIY Cost: ₹4,500-₹9,000 (parts only)

You Save: ₹5,500-₹9,000 by doing it yourself!

Shop labor rates vary but typically run ₹2,500-₹6,000/hour. This repair takes a shop approximately 2-3 hours.

---
