🔧 Front Door Lock Actuator - Replacement

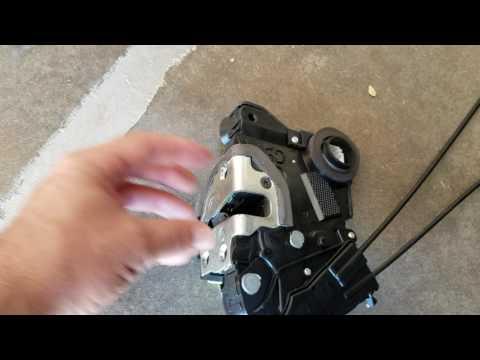

This job means removing the front door trim panel, disconnecting the old latch/actuator assembly, and installing the new unit. On your Prius v, the actuator is built into the door latch assembly, so you replace the latch/actuator as one unit. I’m assuming you mean one front door; the steps are the same for either front door.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the 12V battery negative terminal before starting. This helps prevent accidental airbag, lock, and window circuit issues.
• Keep the hybrid system OFF. You are only working on the 12V door circuits, not the high-voltage system.
• Use care around the side airbag area in the door panel.
• Support the door trim panel so you do not damage wiring connectors or clips.
• Do not force the latch rods or electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Short extension
• Phillips screwdriver
• Trim panel removal tool (plastic)
• Pick tool
• Needle-nose pliers
• Torque wrench
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator / latch assembly - Qty: 1
• Door trim panel clips - Qty: 1 set
• Vapor barrier adhesive or butyl tape - Qty: 1

---

📋 Before You Begin

• Park on a level surface and open the affected front door fully.
• Lower the window glass before disconnecting the battery if the window still works.
• Disconnect the 12V battery negative terminal and wait at least 90 seconds before touching airbag-adjacent trim.
• Have the replacement actuator ready before removing the door panel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power

• Use a 10mm socket to disconnect the negative battery terminal.
• Wait at least 90 seconds before removing any door trim.

Step 2: Remove trim covers and fasteners

• Use a Phillips screwdriver and trim panel removal tool to remove the screws in the door pull, behind the handle trim, and near the armrest.
• Carefully pry off any small covers with the trim tool.

Step 3: Remove the door panel

• Use the trim panel removal tool to pop the retaining clips around the edge of the panel.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect the electrical connectors and courtesy light.
• Work slowly to avoid broken clips.

Step 4: Peel back the vapor barrier

• Use your hands and a trim panel removal tool to carefully peel back the moisture barrier.
• Keep the adhesive clean so you can reinstall it later.

Step 5: Remove the door handle and lock linkages

• Use a pick tool and needle-nose pliers to release the lock rod clips and handle linkage clips from the latch assembly.
• Note the routing of each rod before removal.
• Take a photo first.

Step 6: Remove the actuator/latch assembly

• Use a 10mm socket and ratchet with extension to remove the latch retaining bolts on the door edge.
• Disconnect the electrical connector from the actuator.
• Slide the latch/actuator assembly out through the access opening.

Step 7: Install the new actuator/latch assembly

• Feed the new assembly into the door and position it correctly.
• Reconnect the electrical connector.
• Reconnect the rods and clips exactly as removed.
• Install the latch bolts finger-tight first, then torque to 7.5 Nm (66 in-lbs).

Step 8: Reassemble the door

• Reinstall the vapor barrier using the original adhesive or butyl tape if needed.
• Reconnect all door panel electrical connectors.
• Align the panel and press the clips into place with your hands.
• Reinstall all screws and trim covers.

Step 9: Restore power and test

• Reconnect the 12V battery negative terminal with a 10mm socket.
• Test the lock switch, inside handle, outside handle, key fob, and child safety functions if equipped.
• Make sure the door opens and locks smoothly.

---

✅ After Repair

• Confirm all door functions work: lock, unlock, keyless entry, and handle release.
• Check the window and mirror switch operation if those connectors were unplugged.
• Listen for any rattles from loose clips or an unsealed vapor barrier.
• If the door still does not unlock correctly, inspect the rod clips and electrical connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $330-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
