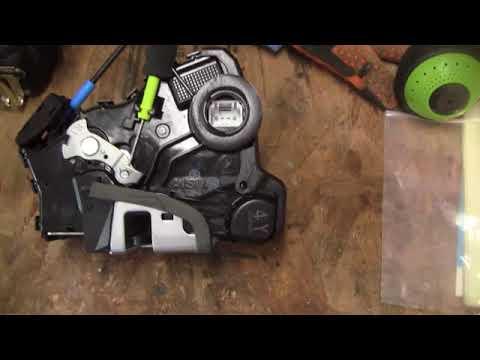

🔧 Front Door Lock Actuator - Replacement

The front door lock actuator on your Prius c is typically serviced as part of the door latch assembly. This repair involves removing the door panel, disconnecting the latch cables and electrical connector, then swapping the actuator/latch assembly.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the 12V battery negative cable before starting. The door contains electrical connectors and side airbag wiring.
• Wait at least 90 seconds after disconnecting the battery before unplugging door connectors.
• Work with the window fully up to reduce the chance of glass damage.
• Handle the door panel clips carefully. They can break easily.
• Keep screws and clips organized so the panel goes back together correctly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Short extension
• Phillips screwdriver
• Trim panel removal tool
• Small flat-blade screwdriver
• Needle-nose pliers
• Torque wrench
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator assembly - Qty: 1
• Door panel clip set - Qty: 1
• Door vapor barrier adhesive - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the window fully if possible, then move the key out of the vehicle.
• Disconnect the 12V battery negative cable with a 10mm socket.
• Wait at least 90 seconds before touching door connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner door trim pieces

• Use a trim panel removal tool to pop off the small trim covers at the armrest and inner handle area.
• Use a Phillips screwdriver to remove the exposed screws.
• Set all screws aside in order.

Step 2: Remove the door panel

• Use the trim panel removal tool to release the clips around the perimeter of the door panel.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect the electrical connectors for the window switch and any courtesy light.
• Set the panel in a safe place.

Step 3: Remove the vapor barrier

• Carefully peel back the plastic vapor barrier by hand.
• Use a small flat-blade screwdriver only if needed to lift old adhesive.
• Keep the barrier clean so it can be reused or resealed.

Step 4: Disconnect the actuator and handle linkages

• Use needle-nose pliers to unclip the interior handle cable from the latch assembly.
• Disconnect the electrical connector from the actuator.
• Unhook any rods or cables attached to the lock mechanism.
• Take a quick photo first.

Step 5: Remove the lock actuator assembly

• Use a 10mm socket, ratchet, and short extension to remove the latch/actuator fasteners from the door edge.
• Slide the assembly out through the access opening in the door.
• If the unit sticks, gently rotate it to clear the linkage path.
• Tighten the new actuator/latch fasteners to 7 Nm (62 in-lbs).

Step 6: Install the new actuator assembly

• Feed the new actuator/latch into the door opening the same way the old one came out.
• Reconnect the rods, cables, and electrical connector.
• Make sure each clip locks fully into place.
• Use the 10mm socket to secure the assembly.

Step 7: Test the lock before reassembly

• Reconnect the 12V battery temporarily if needed for testing.
• Use the key fob, inside lock switch, and manual lock button to confirm the actuator moves correctly.
• Check that the inside and outside handles still open the door properly.
• If it does not work, recheck the connector and cable routing.

Step 8: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place and seal the edges well.
• Reconnect the door panel electrical connectors.
• Hang the panel on the window ledge, then press the clips in around the edges.
• Reinstall the screws and trim covers with the Phillips screwdriver.

---

✅ After Repair

• Test the lock several times with the key fob, lock switch, and key.
• Verify the door opens from both inside and outside.
• Listen for a smooth motor sound with no clicking or binding.
• Make sure the window switch and speaker still work after reassembly.

---

💰 DIY vs Shop Cost

Shop Cost: $280-$520 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $200-$340 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
