🔧 Front Door Lock Actuator - Replacement

The front door lock actuator is built into the latch assembly inside the door. Replacing it usually means removing the door trim panel, unplugging the electrical connectors, and swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before unplugging door harness connectors.
• Use care around the side airbag area in the door. Do not probe yellow airbag connectors.
• The window glass and inner door panel edges can be sharp. Wear gloves and safety glasses.
• If the door has a power window, keep fingers clear of the regulator tracks and glass.
• Support the door trim panel so wiring does not get stretched or torn.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Extension
• Phillips screwdriver
• Trim panel removal tool
• Torx T30 screwdriver
• Needle-nose pliers
• Pick tool
• Torque wrench
• Safety glasses
• Gloves
• Plastic clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator assembly - Qty: 1
• Door trim panel clips - Qty: 1 set
• Foam or butyl vapor barrier seal tape - Qty: 1 roll

---

📋 Before You Begin

• Park on a level surface and open the affected front door fully.
• Lower the window glass before disconnecting anything, if the window still works.
• Disconnect the negative battery cable with a 10mm socket.
• Wait at least 90 seconds after battery disconnect before working near airbag connectors.
• Have a magnet or tray ready for small screws and clips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim fasteners

• Use a Phillips screwdriver to remove the screws in the armrest and around the pull handle.
• Use a trim panel removal tool to pop off any screw covers or small trim caps.
• Place the screws in a safe container.

Step 2: Remove the door panel

• Use a trim panel removal tool to release the door panel clips from the bottom edge first.
• Work slowly around the sides until all clips release.
• Lift the panel upward to unhook it from the window ledge.
• Unplug the switch connector and speaker connector if equipped.
• Do not yank the panel outward.

Step 3: Remove the vapor barrier

• Use a plastic clip removal tool or your fingers to peel back the vapor barrier carefully.
• Keep the adhesive clean so it can be reused.
• If the seal tears, replace it with new foam or butyl vapor barrier seal tape.

Step 4: Access the latch and actuator

• Use a 10mm socket and ratchet with an extension to remove the latch retaining bolts at the rear edge of the door.
• Disconnect the latch cable and electrical connector with a pick tool and your fingers.
• Use a Torx T30 screwdriver if your trim fasteners or handle hardware require it.
• Torque on reassembly: Tighten the latch bolts to 7.5 Nm (66 in-lbs).

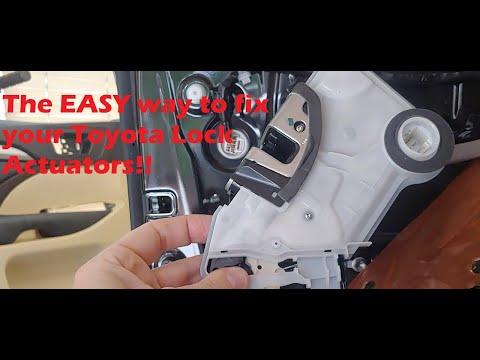

Step 5: Remove the latch/actuator assembly

• Use a 10mm socket to loosen the outer door handle fasteners if needed for clearance.
• Slide the latch/actuator assembly out through the access opening in the door shell.
• Use needle-nose pliers if a cable clip is tight.
• Rotate the unit gently to avoid bending the rods.

Step 6: Install the new actuator

• Compare the new front door lock actuator assembly to the old one before installing.
• Transfer any clips or linkages exactly as removed.
• Slide the new assembly into place through the access opening.
• Reconnect the electrical connector and latch cable.
• Install and tighten the latch bolts with a torque wrench to 7.5 Nm (66 in-lbs).

Step 7: Test the lock function before reassembly

• Reconnect the negative battery cable with a 10mm socket.
• Use the door lock switch and key fob to test lock and unlock operation.
• Make sure the inside and outside handles open the door correctly.
• If the latch binds, stop and recheck the cable routing.

Step 8: Reinstall the door panel

• Press the vapor barrier back into position.
• Reconnect all electrical plugs.
• Hang the door panel on the window ledge, then press the clips in by hand.
• Install the screws with a Phillips screwdriver.
• Reinstall trim covers using a trim panel removal tool.
• Align the top edge before pushing clips in.

---

✅ After Repair

• Cycle the lock switch several times and confirm smooth operation.
• Test the door from inside and outside with the window up and down.
• Check that the door panel sits flush and rattles are gone.
• Verify all switch functions, including window and mirror controls if unplugged.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
