🔧 ProMaster - Front Door Lock Actuator Replacement

The front door lock actuator is the electric motor/gear unit that locks and unlocks your door. On your ProMaster, it’s commonly serviced as part of the door latch/actuator assembly inside the door. You’ll remove the interior door panel, peel back the water shield, swap the latch/actuator, then reassemble and test.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours (per door)

Assumption: The lock actuator is integrated with the door latch (most common ProMaster setup).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before unplugging door wiring.
• ⚠️ Keep the window fully up; don’t bump the glass while working inside the door.
• ⚠️ Wear gloves—door inner metal edges are sharp.
• ⚠️ Support the door panel so it doesn’t hang by the wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim clip removal tool
• Small flat-blade screwdriver
• Phillips screwdriver
• Torx T20 driver
• Torx T30 driver
• Torx T40 driver
• 8mm socket
• 10mm socket
• 1/4" ratchet
• 3" extension for ratchet
• Needle-nose pliers
• Pick tool
• Painter’s tape
• Torque wrench (5–30 Nm range)
• Magnetic pickup tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door trim panel clips - Qty: 6–12
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, key out, and open the front door fully.
• Lower the window slightly, then raise it fully (helps confirm it’s seated), and leave it fully up.
• Use a 10mm socket to disconnect the battery negative cable and isolate it so it can’t touch the post.
• Put painter’s tape along the painted door edge near the panel to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

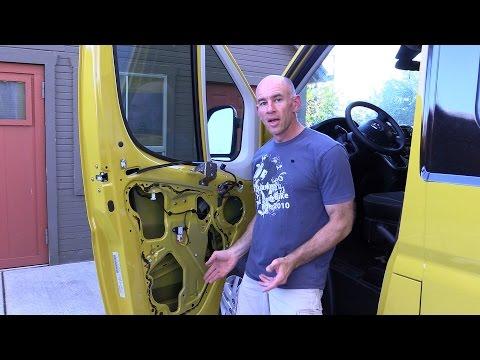

Step 1: Remove the interior door trim panel

• Use a trim clip removal tool (a forked plastic/metal pry tool) to gently pop off trim covers near the pull handle/armrest and any small screw covers.
• Remove any visible screws using a Phillips screwdriver and/or Torx T20 driver (locations vary by panel option).
• Start at the bottom edge: slide the trim clip removal tool under the panel and pop the clips free one-by-one.
• Lift the panel straight up to unhook it from the window ledge.
• Unplug electrical connectors using a small flat-blade screwdriver to release locks (don’t pull on wires).

Step 2: Remove the water shield (vapor barrier)

• Peel the water shield back slowly by hand.
• If the adhesive fights you, use a pick tool to help separate it without tearing.
• Tip: Keep the shield clean for resealing.

Step 3: Disconnect the interior handle cable/rod

• Locate the interior handle linkage at the handle area inside the door.
• If your door uses a cable: use needle-nose pliers to rotate the retaining clip open, then lift the cable end out of the lever.
• If your door uses a rod: use a small flat-blade screwdriver to flip the plastic retainer away, then lift the rod out.

Step 4: Unplug the latch/actuator electrical connector

• At the latch area (rear edge of the door), locate the actuator connector.
• Press the tab and unplug it by hand; if stuck, use a small flat-blade screwdriver gently on the tab.

Step 5: Remove the latch/actuator assembly from the door

• On the door’s trailing edge (where the latch grabs the body striker), remove the latch fasteners using a Torx T30 driver or Torx T40 driver (bit size varies by latch).
• Support the latch inside the door with your hand so it doesn’t drop.
• Work the latch/actuator assembly out through the access opening, guiding the linkage and wiring through.
• Torque to 8–10 Nm (71–88 in-lbs) on installation for latch fasteners. Tip: Start all screws by hand first.

Step 6: Transfer any clips or linkage pieces (if needed)

• Compare the old and new assemblies on a bench.
• Move over any plastic retainers/clips using needle-nose pliers (only if your replacement part doesn’t include them).

Step 7: Install the new latch/actuator assembly

• Guide the new latch/actuator assembly into position through the door access opening.
• Reconnect the interior handle cable/rod by hand, then lock the retainer clip.
• Plug in the electrical connector until it clicks.
• Install the latch fasteners using a Torx T30 driver or Torx T40 driver, then tighten with a torque wrench (5–30 Nm range).
• Torque to 8–10 Nm (71–88 in-lbs) for latch fasteners.

Step 8: Reseal the water shield

• Press the water shield back into place by hand.
• If the original adhesive won’t stick, apply butyl tape and press firmly all the way around.

Step 9: Reinstall the door trim panel

• Reconnect all electrical connectors by hand until they click.
• Hook the top of the panel onto the window ledge, then press downward to seat it.
• Press the panel clips in around the edges using the palm of your hand.
• Reinstall screws using a Phillips screwdriver and/or Torx T20 driver.
• Torque to 2–3 Nm (18–27 in-lbs) for small interior trim screws (snug, not gorilla-tight).

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Test with the door open: lock/unlock using the key fob and the interior switch (if equipped).
• Test with the door closed: confirm the outside handle opens the door and the lock button works normally.
• Listen for smooth actuator operation (no grinding/clicking).
• Tip: If it won’t lock, recheck connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$650 (parts + labor)

DIY Cost: $90–$250 (parts only)

You Save: $260–$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–2.5 hours.

---
