🔧 Savana - Front Door Lock Actuator Replacement

On your Savana, the front door lock actuator is typically attached to (or built into) the door latch assembly inside the door. When it fails, the door may not lock/unlock with the key fob or switch, may cycle weakly, or may only work sometimes.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first-timer)

Assumption: Your Savana has power door locks; if it has manual locks only, there is no actuator to replace.

---

⚠️ Safety & Precautions

• ⚡ Disconnect the negative battery cable before unplugging door wiring.
• 🧤 Wear gloves—inner door metal edges are sharp.
• 🪟 Support the window glass if you loosen anything near the regulator.
• 🔥 If the van was running, let hot surfaces cool before leaning in.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4" drive)
• Torx T30 bit
• Torx T20 bit
• Phillips #2 screwdriver
• Flat trim pry tool (panel clip tool)
• Pick tool
• Needle-nose pliers
• Small flashlight
• Painters tape
• Torque wrench (in-lb)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator (or door latch assembly w/ actuator) - Qty: 1
• Door trim panel clips - Qty: 1 set
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🔋 Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• 🧰 Lay a towel on the floor to catch dropped clips/screws.
• 🧠 “Vapor barrier” (also called a water shield) is the plastic sheet behind the door panel—try not to tear it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim pieces

• Use a flat trim pry tool (panel clip tool) to gently pry off the small trim covers near the door pull/handle area (if equipped).
• Use a Phillips #2 screwdriver or Torx T20 bit (varies by panel) to remove the screws you uncover.
• Use a pick tool to lift tiny screw-cap edges without gouging plastic. Work slowly to avoid breaking tabs.

Step 2: Remove the door panel

• Start at the bottom corner: use the flat trim pry tool (panel clip tool) to pop the panel clips out one-by-one.
• Lift the whole door panel upward to unhook it from the window ledge.
• Unplug any electrical connectors using the pick tool to release the locking tabs (power windows/locks/speaker, if equipped).

Step 3: Peel back the vapor barrier (water shield)

• Use your hands and a flat trim pry tool (panel clip tool) to peel the plastic vapor barrier back slowly.
• If the sticky sealer stretches, use the pick tool to help separate it cleanly.
• Use painters tape to hold the vapor barrier out of your way. Try not to tear the plastic.

Step 4: Disconnect the lock/handle linkages

• Locate the door latch area (rear edge of the door). Use a flashlight to see the rods/cables.
• If your Savana uses metal rods: use needle-nose pliers to rotate the colored retaining clips open, then lift the rod out.
• If your Savana uses a cable: release the cable end by flipping the plastic lock tab with a pick tool, then slide the cable out of its bracket.
• Take a quick photo before disassembly.

Step 5: Unplug the actuator/latch electrical connector

• Use a pick tool to press the connector lock tab.
• Pull the connector straight off—do not yank the wires.

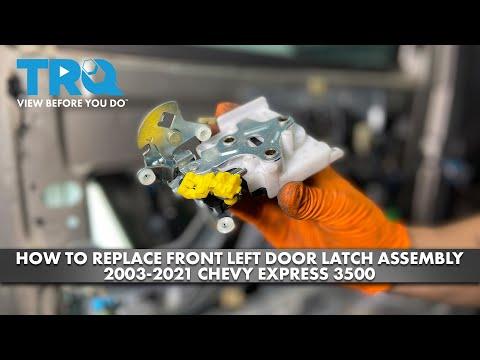

Step 6: Remove the door latch/actuator assembly

• At the door’s rear edge, remove the latch fasteners using a Torx T30 bit with a 1/4" drive ratchet and 6" socket extension (1/4" drive).
• Support the latch with one hand as the last fastener comes out.
• Wiggle and guide the latch/actuator assembly out through the access opening in the door.

Step 7: Transfer parts (only if required) and install the new actuator/latch

• If your replacement is actuator-only: move any required levers/brackets from the old unit to the new one using a pick tool and needle-nose pliers.
• Position the new latch/actuator assembly into the door the same way the old one came out.
• Install latch fasteners by hand first, then tighten with the Torx T30 bit and 1/4" drive ratchet.
• Use a torque wrench (in-lb): Torque to 80 in-lb (9 Nm).

Step 8: Reconnect linkages and wiring

• Reconnect the rods/cables and snap the retaining clips back closed (use needle-nose pliers if needed).
• Reconnect the electrical connector until it clicks (use a flashlight to confirm it is fully seated).
• Nothing should bind or rub.

Step 9: Function-test before reassembly

• Reconnect the negative battery cable using a 10mm socket and 1/4" drive ratchet.
• Test the lock: use the power lock switch/key fob (if equipped) and also test manual lock/unlock and door handle operation.
• If the lock works backward or not at all, recheck linkage routing and connector seating using a flashlight.
• Disconnect the negative battery cable again using the 10mm socket before final reassembly.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place. If the adhesive no longer sticks, apply butyl tape (a sticky rope-like sealer) around the edges by hand.
• Reconnect door panel electrical connectors.
• Hang the door panel on the top lip first, then press the clips in around the perimeter using your hands.
• Reinstall screws using the Phillips #2 screwdriver or Torx T20 bit.
• If any clips broke, replace them with the new door trim panel clips.

Step 11: Final battery connection and final test

• Reconnect the negative battery cable using a 10mm socket and 1/4" drive ratchet.
• Test: lock/unlock, inside handle, outside handle, and verify the door opens/closes smoothly.

---

✅ After Repair

• 🔁 Cycle locks 10+ times to confirm consistent operation.
• 🚪 Confirm the door fully latches and doesn’t bounce back open.
• 💧 After the next rain/wash, check the door for water leaks (vapor barrier seal matters).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $270-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
