🔧 F-250 Super Duty - Front Door Lock Actuator Replacement

The front door lock actuator on your F-250 is built into the door latch assembly on the door’s trailing edge (near the striker). Replacement requires removing the interior door panel, peeling back the water shield, disconnecting linkage rods/connectors, and swapping the latch/actuator assembly.

Assumption: Your front lock actuator is integrated with the latch (most common setup on your F-250).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to avoid shorts and accidental airbag/BCM faults.
• ⚠️ Keep the window fully up while working inside the door.
• ⚠️ Door sheet metal edges are sharp—wear gloves.
• ⚠️ Don’t tear the water shield (vapor barrier); water leaks happen if it’s not sealed back correctly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4" drive)
• Torx T27 bit
• Torx T30 bit
• Trim removal tool set
• Small flat-blade screwdriver
• Needle-nose pliers
• Pick tool (hook pick)
• Painter’s tape
• Work light
• Torque wrench (in-lb)
• Torque wrench (ft-lb)
• Gloves
• Safety glasses
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door trim panel retainers (clips) - Qty: 1 set
• Water shield butyl seal tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the front door fully.
• Use painter’s tape on painted edges to prevent scratches.
• Disconnect the battery: use a 10mm wrench to remove the negative cable and isolate it so it can’t spring back.
• Take photos of rod routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim panel

• Use a trim removal tool set to pop off any trim covers hiding screws (typically near the pull handle and/or door release area).
• Remove exposed screws using a 8mm socket and/or 10mm socket (locations vary by panel style).
• Use a trim removal tool set to lift the window/lock switch bezel, then unplug connectors by releasing the tab with a small flat-blade screwdriver.
• Starting at the bottom edge, use a trim removal tool set to pop the panel clips free around the perimeter.
• Lift the panel straight up to unhook it from the window channel.

Step 2: Disconnect the door handle cable/rod and any wiring

• Behind the panel, disconnect the interior handle cable or rod (depends on build).
• If it’s a cable: use a pick tool (hook pick) to flip the plastic retainer open, then lift the cable end out of the handle.
• If it’s a rod: use needle-nose pliers to rotate the colored retaining clip off the rod, then slide the rod out.
• Unplug any remaining connectors (speaker, puddle light, etc.) using a small flat-blade screwdriver to release locking tabs.

Step 3: Peel back the water shield (vapor barrier)

• Use a trim removal tool set or your gloved hands to carefully peel the water shield back enough to access the latch area.
• If the butyl is sticky/stringy, use a pick tool (hook pick) to help separate it without tearing the plastic.

Step 4: Disconnect the latch electrical connector

• Locate the latch/actuator connector near the rear edge of the door.
• Use a small flat-blade screwdriver to lift the connector lock (if equipped), then unplug it.

Step 5: Free the linkage rods from the latch

• Identify the rods going to the latch (lock rod and handle rod).
• Use needle-nose pliers to rotate the retaining clips open (do not break them), then lift the rods out.
• Only move one rod at a time.

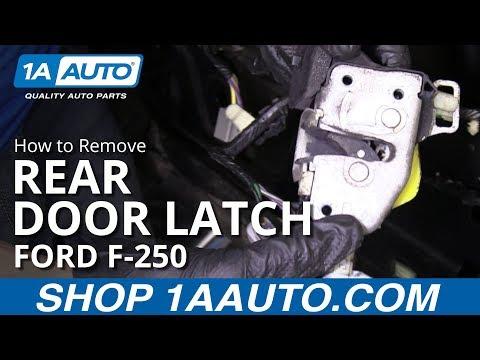

Step 6: Remove the door latch/actuator assembly

• On the door’s trailing edge, remove the latch fasteners using a Torx T30 bit with a 1/4" drive ratchet and 6" socket extension (1/4" drive).
• Support the latch from inside the door, then work it out through the access opening.
• Transfer any brackets/foam seals from the old latch to the new one if applicable.
• Torque: Tighten latch fasteners to factory specification using a torque wrench. (If you don’t have the spec, tighten snugly and do not over-tighten; the door edge threads can strip.)

Step 7: Install the new latch/actuator and reconnect everything

• Slide the new latch/actuator into position inside the door.
• Start the Torx fasteners by hand to avoid cross-threading, then tighten with a Torx T30 bit.
• Reconnect linkage rods and snap the retaining clips fully closed using needle-nose pliers.
• Plug in the latch electrical connector until it clicks.

Step 8: Re-seal the water shield

• Press the original butyl back into place. If it won’t stick well, apply water shield butyl seal tape and press the shield firmly all the way around.
• A good seal prevents wet carpets.

Step 9: Reinstall the door panel

• Reconnect all door panel electrical connectors.
• Hook the top of the panel onto the window channel and set it down into place.
• Press around the perimeter to seat the clips.
• Reinstall screws using a 8mm socket/10mm socket as removed, then reinstall trim covers using a trim removal tool set.

Step 10: Reconnect the battery

• Reconnect the negative battery cable using a 10mm wrench.

---

✅ After Repair

• With the door open, test lock/unlock using the key fob and the interior switch.
• Test the interior and exterior handles to confirm the door unlatches smoothly.
• Close the door and confirm it locks/unlocks and opens normally from both handles.
• If any warning lights appear, re-check that every connector is fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
