🔧 Grand Caravan - Front Door Lock Actuator Replacement

On your Grand Caravan, the “door lock actuator” is typically built into the door latch assembly inside the door. Replacement means removing the interior door panel, peeling back the moisture barrier, unbolting the latch/actuator unit, and transferring the handle/link rods and electrical connector.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first time)

Assumption: actuator is integrated with the latch assembly.

---

⚠️ Safety & Precautions

• ⚠️ Work with the window fully up to avoid glass movement while your hands are inside the door.
• ⚠️ Disconnect the battery negative cable before unplugging door wiring to prevent shorts and accidental motor operation.
• ⚠️ Use trim tools—metal screwdrivers can crack panels and cut wiring.
• ⚠️ The door has sharp edges inside; wear gloves.
• ⚠️ Keep the moisture barrier intact; it prevents water leaks and electrical issues.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm wrench
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4" drive)
• Trim removal tool set (plastic)
• Phillips #2 screwdriver
• Torx T20 screwdriver
• Torx T30 driver
• Needle-nose pliers
• Pick tool (small)
• Razor blade or plastic scraper
• Painters tape
• Flashlight
• Torque wrench (in-lb or low Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel trim clips - Qty: 4-10 (as needed)
• Moisture barrier butyl adhesive strip - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and remove the key.
• Use painters tape to protect the painted door edge and the trim near the handle.
• Lower the window a tiny amount if needed to access fasteners, then raise it fully before working inside the door.
• Disconnect the battery: use a 10mm wrench to remove the negative cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the trim pieces and hidden screws

• Use a trim removal tool set (plastic) to pop off the small trim cover(s) near the interior door handle and/or pull handle (these hide screws).
• Remove exposed screws using a Phillips #2 screwdriver and/or Torx T20 screwdriver (fastener type varies by handle location).
• Pop off the mirror “sail panel” (triangle trim by the mirror) using the trim removal tool set (plastic).

Step 2: Remove the interior door panel

• Starting at the bottom edge, slide the trim removal tool set (plastic) under the door panel and pop the panel clips free one at a time.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug the electrical connectors (window/lock switch): press the lock tab using a pick tool (small) if needed, then pull the connector straight out.
• Tip: support the panel so wires don’t strain.

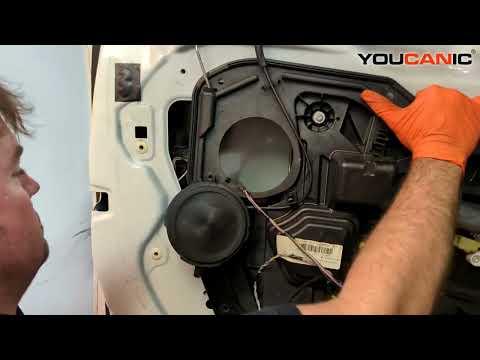

Step 3: Peel back the moisture barrier

• Carefully peel the moisture barrier back using a plastic scraper (or razor blade gently on the butyl only).
• Do not tear it; if the butyl is stringy, roll it off with your fingers and reuse what you can.

Step 4: Disconnect the latch/actuator wiring

• Locate the latch/actuator connector near the rear edge of the door (by the latch).
• Press the connector lock and unplug it; use a pick tool (small) to lift the lock tab if it’s stubborn.
• Pick tool definition: a small pointed tool used to release tight clips without breaking them.

Step 5: Release the handle and lock link rods

• Look through the access opening and find the metal rods going to the interior handle and the lock mechanism.
• Each rod is held by a small colored plastic “retainer clip.” Flip the retainer open using needle-nose pliers or a pick tool (small), then lift the rod out of the hole.
• Tip: take a flashlight photo before removing rods.

Step 6: Remove the door latch/actuator assembly

• At the door’s rear edge (where the latch grabs the striker), remove the latch mounting screws using a Torx T30 driver.
• Support the latch as you remove the last screw so it doesn’t drop inside the door.
• Work the latch/actuator assembly out through the door access hole, guiding the cable/rods as needed.

Step 7: Install the new latch/actuator assembly

• Slide the new latch/actuator into position through the access hole and align it with the door edge openings.
• Hand-start the latch mounting screws, then tighten with a Torx T30 driver.
• Final tighten using a torque wrench (in-lb or low Nm range): Torque to 8 N·m (71 in-lbs).

Step 8: Reconnect rods/cables and electrical connector

• Reconnect each rod into its correct lever hole, then snap the plastic retainer clip closed (use needle-nose pliers if tight).
• Plug in the latch/actuator connector until it clicks.
• Tip: tug lightly to confirm it’s locked.

Step 9: Re-seal the moisture barrier

• Press the moisture barrier back into the butyl adhesive.
• If the seal won’t stick, apply moisture barrier butyl adhesive strip and press firmly all the way around.

Step 10: Reinstall the door panel

• Reconnect the door switch electrical connectors and confirm they click in.
• Hook the top of the door panel onto the window ledge, then press the panel straight in to seat the clips.
• Reinstall screws using a Phillips #2 screwdriver and/or Torx T20 screwdriver.
• Reinstall trim covers and the mirror sail panel using the trim removal tool set (plastic).

Step 11: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket or 10mm wrench.

---

✅ After Repair

• Test power locks: lock/unlock from the driver switch and key fob.
• Test inside handle and outside handle operation before fully closing the door.
• Close the door and confirm it latches smoothly and unlocks normally.
• Check window and mirror controls (if equipped) for normal operation.
• Listen for abnormal clicking/grinding from the latch while locking; if heard, recheck rod routing and connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $210-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
