🔧 X5 - Front Door Lock Actuator Replacement

The front door lock actuator (also called the door latch assembly) is the electric unit that locks/unlocks and “latches” the door. Replacing it requires removing the interior door panel, peeling back the moisture barrier, and swapping the latch/actuator at the door edge.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Your X5 uses the common F15 front latch/actuator; torque values may vary slightly by latch version.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before unplugging door wiring (airbag/side-impact sensor circuits may be present in the door).
• ⚠️ Do not turn the ignition on with door connectors unplugged; it can set fault codes.
• ⚠️ Support the door panel so it doesn’t hang by the wiring harness.
• ⚠️ Use a plastic trim tool to avoid cracking trim and scratching paint.
• ⚠️ Watch for sharp metal edges inside the door; wear gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Battery terminal wrench 10mm
• Plastic trim removal tool set
• Panel clip pliers
• Torx T20 driver
• Torx T25 driver
• Torx T30 driver
• Torx E8 socket
• Torx E10 socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• Small flat trim pick
• Needle-nose pliers
• Painter’s tape 1"
• Magnetic pickup tool
• Torque wrench (5–60 Nm range)
• Butyl roller tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator / door latch assembly - Qty: 1
• Door panel retaining clips - Qty: 6-12
• Butyl sealant tape (moisture barrier) - Qty: 1
• Vapor barrier patch tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, window fully up, ignition off, and keep the key away from the vehicle (reduces modules waking up).
• Use painter’s tape 1" along the door edge and near trim pieces to protect paint.
• Disconnect the negative battery cable: use a 10mm battery terminal wrench to remove the negative terminal and isolate it so it can’t spring back.
• Trim tool = plastic pry tool; prevents damage.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim pieces

• Use a plastic trim removal tool set to carefully pry off the small trim cover behind the interior door handle area (where hidden screws typically are).
• Use a small flat trim pick to lift any small caps hiding screws (work slowly so you don’t gouge the plastic).

Step 2: Remove the door panel screws

• Remove the fasteners in the pull handle and handle bezel area using a Torx T20 driver and/or Torx T25 driver (BMW commonly uses these sizes here).
• If your panel has additional lower-edge screws, remove them using a Torx T20 driver.
• Put screws in a tray so nothing gets lost.

Step 3: Release the door panel clips and lift the panel off

• Start at the bottom corner: use a plastic trim removal tool set to pop the first clip.
• Work around the perimeter, popping clips one-by-one. If a clip is stubborn, use panel clip pliers for a straighter pull.
• Lift the door panel upward to unhook it from the top window ledge.
• Don’t yank—clips snap easily.

Step 4: Disconnect wiring and the interior handle cable

• Support the panel and unplug connectors using a small flat trim pick to release each connector lock (the little locking tab).
• Disconnect the interior door handle cable: use needle-nose pliers to rotate the cable end out of its lever, then lift the cable housing out of its bracket.
• Set the door panel somewhere safe (face-up on a blanket).

Step 5: Peel back the moisture barrier (vapor barrier)

• Carefully peel the foam/plastic moisture barrier back using a plastic trim removal tool set.
• Try to keep the butyl (sticky black sealant) on the door, not the barrier. Use a butyl roller tool (specialty) later to reseal it.
• Do not tear the barrier; it prevents water leaks and wind noise.

Step 6: Unplug the door latch/actuator electrical connector

• Locate the latch/actuator connector near the rear edge of the door (latch area) and unplug it using a small flat trim pick to release the lock.

Step 7: Remove the exterior handle linkage (as needed)

• At the latch, you may see a linkage rod or cable from the outside handle.
• Use needle-nose pliers to unclip the linkage from its retaining clip, then move it aside.
• Take a photo before unhooking linkages.

Step 8: Remove the latch/actuator mounting fasteners

• At the door edge (where the latch meets the body), remove the latch screws using a Torx T30 driver.
• From inside the door, remove any latch support bolts using a Torx E8 socket or Torx E10 socket with a 1/4" ratchet and 3" extension.
• If a fastener drops, use a magnetic pickup tool to retrieve it.

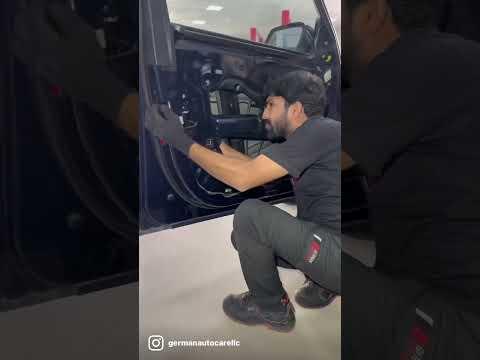

Step 9: Remove the actuator/latch assembly from the door

• Work the latch/actuator out through the access opening in the door.
• You may need to rotate it to clear the window track. Go slowly to avoid bending linkages.

Step 10: Install the new actuator/latch assembly

• Transfer any brackets/clips from the old unit to the new one (use a small flat trim pick).
• Position the new latch/actuator into the door and start fasteners by hand to avoid cross-threading.
• Tighten latch screws using a Torx T30 driver and a torque wrench: Torque to 8 Nm (71 in-lbs).
• Tighten any internal support bolts using a Torx E8 socket or Torx E10 socket and a torque wrench: Torque to 8–10 Nm (71–89 in-lbs).
• If resistance feels wrong, stop and realign.

Step 11: Reconnect linkage and electrical connector

• Reconnect the exterior handle linkage using needle-nose pliers and ensure the retaining clip fully snaps into place.
• Reconnect the latch/actuator electrical connector by hand until it clicks; lightly tug to confirm it’s locked.

Step 12: Reseal the moisture barrier

• Press the moisture barrier back into the butyl sealant using your hands.
• If the butyl is dirty or not sticking, apply butyl sealant tape and press it flat using the butyl roller tool (specialty).
• Patch any small tears using vapor barrier patch tape.

Step 13: Reinstall the door panel

• Reconnect all door panel electrical connectors by hand (they must click).
• Reconnect the interior handle cable (seat cable housing, then snap the cable end into the lever).
• Hang the panel on the top window ledge, then press around the perimeter to seat each clip.
• Replace any broken clips with new door panel retaining clips before final pressing.

Step 14: Reinstall screws and trim covers

• Reinstall all panel screws using a Torx T20 driver and/or Torx T25 driver.
• Snug them evenly (do not overtighten into plastic).
• Reinstall the trim covers using a plastic trim removal tool set to press them flush.

Step 15: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm battery terminal wrench.
• Make sure the clamp is fully seated and tight.

---

✅ After Repair

• Test the door with it open: use the key fob to lock/unlock and confirm the latch responds.
• Test from inside: verify the interior handle opens the door normally.
• Test from outside: verify the exterior handle opens the door and the door fully latches shut.
• Check for wind noise/water leak prevention: confirm the moisture barrier is fully sealed all the way around.
• If you see an airbag/door fault message, it may require a scan tool to clear after reconnecting components.
• Recheck all connectors before closing the door.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$950 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
