🔧 ILX - Front Door Lock Actuator Replacement

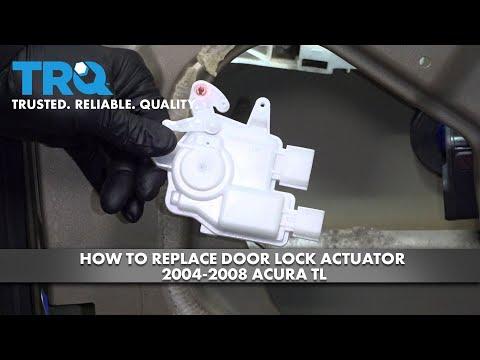

The front door lock actuator is the electric motor/gear unit that locks and unlocks your door. On your ILX, it’s mounted to (or built into) the door latch inside the door, so you’ll remove the interior door panel, unplug the actuator, and swap the actuator/latch assembly.

Assumption: Steps cover both front-left and front-right doors and the common ILX latch/actuator layout.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal before working in the door (side airbag wiring may be present).
• ⚠️ Wait at least 3 minutes after battery disconnect before unplugging any door connectors.
• ⚠️ Support the door panel as you unplug connectors so it doesn’t fall and crack.
• ⚠️ Don’t tear the vapor barrier (plastic sheet); it prevents water leaks and wind noise.
• ⚠️ Keep the window fully up to avoid cutting your hands on the glass edge.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm wrench
• 1/4" drive ratchet
• 10mm socket
• 6" extension for 1/4" ratchet
• Phillips #2 screwdriver
• Torx T30 bit
• Trim removal tool set
• Small pick tool
• Needle-nose pliers
• Painter’s tape
• Flashlight
• Inch-pound torque wrench (specialty)
• Magnetic parts tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator - Qty: 1
• Front door latch assembly - Qty: 1 (only if actuator is integrated)
• Door panel retainer clips - Qty: 5-12 (as needed)
• Butyl seal tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and keep the window fully up.
• Turn ignition OFF and keep the key fob away from the car.
• Use a 10mm wrench to disconnect the battery negative terminal, then wait 3 minutes.
• Apply painter’s tape along the door’s painted edges to protect the finish while you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the trim covers and screws

• Use a trim removal tool set to gently pry off the small trim cover behind the interior door handle.
• Remove the exposed screw using a Phillips #2 screwdriver.
• Pry up the window/lock switch panel using the trim removal tool set, then unplug the connectors by pressing the release tabs.
• Look for additional screws in the armrest pull-handle area and remove them using a Phillips #2 screwdriver.

Step 2: Remove the interior door panel

• Start at the bottom corner of the panel and use a trim removal tool set to pop the panel clips loose.
• Work around the sides until all clips release.
• Lift the panel straight up to unhook it from the window ledge.
• Unplug any remaining connectors (courtesy light, etc.). Use a flashlight so you don’t miss a tab.
• If there’s a cable for the inner handle, unhook it carefully. Keep note of cable routing.

Step 3: Peel back the vapor barrier

• Use a trim removal tool set to slowly peel the vapor barrier away.
• If the black sticky sealer stretches, use butyl seal tape later to reseal it.
• Fold the barrier out of the way without tearing it.

Step 4: Disconnect the actuator wiring and linkage rods

• Locate the door latch at the rear edge of the door and follow the wiring to the latch/actuator connector.
• Press the connector tab and unplug it (use a small pick tool only if needed). A “pick tool” is a small hooked tool that helps release clips without breaking them.
• Identify the metal linkage rods (lock rod and handle rod). Use a small pick tool to flip open the colored plastic retainers, then lift the rods out.
• Use needle-nose pliers only for gentle help—don’t crush the rods.

Step 5: Remove the latch/actuator from the door

• At the door’s rear edge, remove the 3 latch fasteners using a Torx T30 bit and 1/4" drive ratchet.
• Support the latch inside the door with your free hand so it doesn’t drop.
• Carefully maneuver the latch/actuator out through the access opening. Use a flashlight to guide it past the window track.

Step 6: Replace the actuator (two common setups)

• Setup A (Actuator is separate on the latch):
• Use a Phillips #2 screwdriver or 10mm socket (varies by design) to remove the actuator mounting screws/bolts.
• Transfer any small brackets or seals to the new actuator.
• Install the new actuator and Torque to factory specification using an inch-pound torque wrench (specialty).
• Setup B (Actuator is integrated into the latch):
• Replace the entire front door latch assembly and transfer only the linkage rods/cables as removed.

Step 7: Reinstall the latch/actuator and reconnect rods

• Place the latch back into position inside the door.
• Install the 3 latch fasteners using a Torx T30 bit and 1/4" drive ratchet, then Torque to factory specification.
• Reconnect the linkage rods and snap the plastic retainers closed using a small pick tool.
• Plug in the actuator connector until it clicks.

Step 8: Reseal the vapor barrier and reinstall the door panel

• Press the vapor barrier back into the sticky butyl. Add butyl seal tape anywhere it won’t stick.
• Reconnect all electrical connectors to the door panel.
• Hang the door panel on the top ledge first, then press the clips in around the perimeter using your hands.
• Reinstall all screws using a Phillips #2 screwdriver.
• Snap the trim pieces and switch panel back in using the trim removal tool set.

Step 9: Reconnect the battery

• Reconnect the battery negative terminal using a 10mm wrench.

---

✅ After Repair

• Test lock/unlock using the key fob, inside switch, and the exterior handle.
• Confirm the door opens from inside and outside, and the lock knob moves smoothly.
• If the power window lost auto function, initialize it: with ignition ON, fully lower the window, then fully raise it and keep holding the switch up for 2 seconds.
• Listen for abnormal grinding/clicking from the latch area; recheck rod seating if present.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$280 (parts only)

You Save: $260-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
