🔧 Highlander - Front Door Lock Actuator Replacement

This repair replaces the failed front door lock actuator inside the door latch assembly. On your Highlander, the actuator is built into the door lock/latch unit, so the inner door panel, moisture barrier, lock rods/cables, and latch fasteners must be removed to access it.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working inside the front door because the door contains electrical wiring and a side impact sensor area.
• ⚠️ Do not turn the ignition on while door connectors are unplugged, or warning lights may set.
• ⚠️ Keep the glass fully raised and supported. Do not slam the door while the latch is loose.
• ⚠️ Work slowly around the plastic door panel clips so the trim panel does not crack.
• ⚠️ A trim removal tool is a flat plastic pry tool used to release clips without scratching the panel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet handle
• 6-inch socket extension
• Phillips #2 screwdriver
• Torx T30 socket
• Plastic trim removal tool set
• Small flat-blade screwdriver
• Needle-nose pliers
• Painter’s tape
• Torque wrench inch-pound range
• Torque wrench foot-pound range
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: As needed
• Butyl sealant tape - Qty: 1 roll

---

📋 Before You Begin

• Park your Highlander on level ground and set the parking brake.
• Lower the front window slightly, then raise it fully. This confirms the window is seated before you remove the door panel.
• Turn the ignition off and keep the key/fob away from the vehicle.
• Use a 10mm socket and ratchet handle to disconnect the negative battery cable. Wait at least 90 seconds before working inside the door.
• Protect painted edges near the door handle and latch area with painter’s tape.
• Assumption: These steps apply to either front door. Driver and passenger sides are mirror images, but the electrical connectors and cable routing must go back exactly as removed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Inner Door Handle Trim

• Put on safety glasses and nitrile gloves.
• Use the plastic trim removal tool to gently pry off the small trim cover behind the inside door handle.
• Use a Phillips #2 screwdriver to remove the screw hidden behind the handle trim.
• Place the screw in a cup or tray so it does not get lost.

Step 2: Remove the Armrest and Switch Panel

• Use the plastic trim removal tool to lift the power window switch panel from the armrest.
• Use a small flat-blade screwdriver to press the connector locking tab, then unplug the switch connector.
• Use a Phillips #2 screwdriver to remove the screw inside the armrest pull pocket.
• Tip: Pry upward, not sideways.

Step 3: Release the Door Panel Clips

• Use the plastic trim removal tool at the lower rear edge of the door panel.
• Pop the plastic clips loose one at a time around the bottom and sides of the panel.
• Lift the door panel straight upward to unhook it from the window ledge.
• Hold the panel close to the door so you do not pull on the remaining cables.

Step 4: Disconnect Door Cables and Connectors

• Use needle-nose pliers or your fingers to release the inside handle cable and lock cable from the back of the door panel.
• A cable end is a small metal ball that sits in a plastic lever; rotate the cable housing out first, then lift the ball end free.
• Use a small flat-blade screwdriver to release any remaining connector tabs.
• Set the door panel on a clean towel to avoid scratches.

Step 5: Peel Back the Moisture Barrier

• Use the plastic trim removal tool to carefully separate the clear plastic moisture barrier from the black butyl sealant.
• Butyl sealant is sticky rubber tape that keeps water out of the cabin.
• Peel back only the rear half of the barrier for latch access.
• If the sealant stretches or tears, plan to repair it with butyl sealant tape during reassembly.

Step 6: Remove the Exterior Handle Access Covers

• At the rear edge of the door, locate the rubber access plug near the outside handle area.
• Use a small flat-blade screwdriver to remove the rubber plug.
• Use a Torx T30 socket with the ratchet handle to loosen the exterior handle lock-cover retaining screw if access to the handle rod is needed.
• Do not fully remove that screw unless it comes out by design; loosen it only enough to release the lock cover.

Step 7: Disconnect the Lock Rods and Electrical Connector

• Look inside the rear of the door near the latch.
• Use needle-nose pliers to rotate the plastic lock rod clips open.
• Lift the metal rods out of the clips using your fingers or needle-nose pliers.
• Use a small flat-blade screwdriver to press the latch electrical connector tab, then unplug it.
• Tip: Take a photo before disconnecting rods.

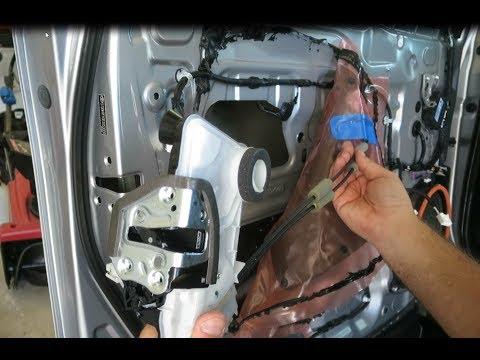

Step 8: Remove the Door Lock Actuator/Latch Assembly

• Support the latch with one hand inside the door.
• Use a Torx T30 socket and ratchet handle to remove the three latch screws from the rear edge of the door.
• Carefully guide the actuator/latch assembly out through the access opening in the door.
• Do not bend the lock rods sharply.

Step 9: Transfer Any Required Cables or Rods

• Compare the old and new front door lock actuator/latch assembly side by side.
• Use needle-nose pliers to transfer any cable bracket, rod clip, or lever that is not included with the new part.
• Make sure each plastic clip locks fully around the rod.
• The new assembly must match the old assembly before installation.

Step 10: Install the New Actuator/Latch Assembly

• Feed the new actuator/latch assembly into the door through the access opening.
• Align the latch with the screw holes at the rear edge of the door.
• Use a Torx T30 socket to install the three latch screws by hand first.
• Use a torque wrench with Torx T30 socket to tighten the latch screws to Torque to 8 Nm (71 in-lbs).

Step 11: Reconnect Rods, Cables, and Connector

• Use needle-nose pliers to place each lock rod back into its original plastic clip.
• Snap each plastic clip closed by hand.
• Plug in the latch electrical connector until it clicks.
• If you loosened the outside handle lock-cover screw, use a Torx T30 socket and torque wrench to tighten it snugly to Torque to 4 Nm (35 in-lbs).
• Reinstall the rubber access plug by pressing it in with your fingers.

Step 12: Function Test Before Reinstalling the Panel

• Use a 10mm socket and ratchet handle to temporarily reconnect the negative battery cable.
• Keep your fingers clear of the latch opening.
• Use a screwdriver shaft to gently close the latch jaw while the door remains open.
• Test lock and unlock using the door switch and remote.
• Pull the inside and outside handles to confirm the latch releases.
• Use a 10mm socket and ratchet handle to disconnect the negative battery cable again before finishing reassembly.

Step 13: Reinstall the Moisture Barrier

• Press the moisture barrier back onto the original butyl sealant by hand.
• Use butyl sealant tape anywhere the seal is torn, loose, or missing.
• Make sure wiring passes through the correct openings and is not pinched.
• Tip: A good seal prevents wet carpet.

Step 14: Reinstall the Door Panel

• Reconnect the inside handle cable and lock cable by hand.
• Plug in the door switch connector until it clicks.
• Hook the top of the door panel over the window ledge.
• Line up the clips, then press around the edges by hand until each clip snaps in.
• Use a Phillips #2 screwdriver to reinstall the armrest screw and inside handle screw.
• Use a Phillips #2 screwdriver to tighten the trim screws snugly to Torque to 2 Nm (18 in-lbs).
• Snap the switch panel and handle trim cover back into place by hand.

Step 15: Reconnect the Battery

• Use a 10mm socket and ratchet handle to reconnect the negative battery cable.
• Use the 10mm socket with a torque wrench if available and tighten the clamp to Torque to 5 Nm (44 in-lbs).
• Do not overtighten the battery terminal clamp.

---

✅ After Repair

• ✅ Test lock and unlock from the key fob, driver switch, and manual lock lever.
• ✅ Open and close the door from both the inside and outside handles.
• ✅ Confirm the door ajar light turns off when the door is closed.
• ✅ Reset the auto window function if needed: turn ignition on, fully close the window, then hold the window switch up for about 2 seconds.
• ✅ Check that the speaker, mirror switch, door lock switch, and window switch all work.
• ✅ After a car wash or rain, check the lower door area and carpet for water leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.2-1.8 hours.

---
