🔧 Sentra - Front Door Lock Actuator Replacement

The front door lock actuator is the small electric motor/gear unit that locks and unlocks the door when you use the key fob or switch. On your Sentra, it’s typically built into the door latch assembly at the rear edge of the door, so replacement usually means swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: steps apply to either front door; layout is similar.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to prevent shorts.
• ⚠️ Work with the window fully up to avoid glass movement while your hands are inside the door.
• ⚠️ Don’t tear the water shield (vapor barrier); it prevents leaks and wind noise.
• ⚠️ Use eye protection when popping trim clips; they can snap loose suddenly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Phillips #2 screwdriver
• Flat trim tool set
• Torx T30 driver
• Pick tool
• Needle-nose pliers
• Magnetic pickup tool
• Painters tape
• Work light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door panel retainer clips - Qty: 6-12
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn ignition OFF, and keep the window fully up.
• Use a 10mm socket to disconnect the negative battery cable, then wait 2 minutes.
• Put painters tape along the door edge and near trim areas to prevent scratches.
• Have a clean spot ready for screws and clips so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the window/lock switch panel

• Use a flat trim tool set to gently pry up the switch panel from the armrest.
• Unplug the electrical connectors using a pick tool to lift the small locking tabs. A “locking tab” is a tiny latch on the plug.

Step 2: Remove screws from the door panel

• Remove the screw(s) in the armrest/pull handle using a Phillips #2 screwdriver.
• Remove the screw behind the interior door handle bezel using a Phillips #2 screwdriver.
• Set all screws aside.

Step 3: Release the door panel clips and lift the panel off

• Start at the lower edge: slide a flat trim tool set between the panel and the door and pop the clips loose.
• Work around the perimeter until all clips release.
• Lift the panel straight upward to unhook it from the window channel.
• Disconnect any remaining connectors (courtesy light, etc.) using the pick tool.

Step 4: Peel back the water shield (vapor barrier)

• Carefully peel the water shield back near the rear of the door using your hands and a flat trim tool set.
• Keep the butyl adhesive as clean as possible so it reseals.

Step 5: Disconnect the latch/actuator wiring connector

• Reach to the rear of the door and locate the latch/actuator connector near the latch.
• Press the connector lock and unplug it. Use a pick tool if the tab is stubborn.

Step 6: Disconnect the inside handle linkage

• Locate the inside handle linkage going to the latch (usually a metal rod with a plastic retainer clip).
• Use a pick tool to swing the plastic retainer open, then lift the rod out.
• Take a photo first for reassembly.

Step 7: Disconnect the outside handle linkage (if equipped)

• Locate the outside handle rod/cable at the latch area through the service opening.
• Use needle-nose pliers or a pick tool to open the retainer and release the rod/cable end.

Step 8: Remove the latch/actuator assembly from the door edge

• Open the door and locate the latch fasteners on the rear edge of the door.
• Remove the 3 latch fasteners using a Torx T30 driver (some units may use 10mm socket instead).
• Pull the latch/actuator assembly inward and maneuver it out through the access opening.
• If a fastener drops inside the door, retrieve it with a magnetic pickup tool.

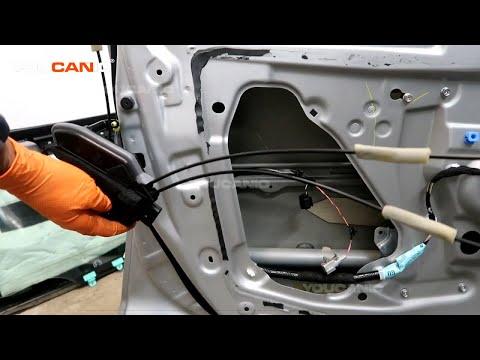

Step 9: Transfer parts (only if needed) and install the new actuator/latch

• If your replacement is the full latch/actuator assembly, install it directly. If it’s actuator-only, move any brackets exactly as they were using a Phillips #2 screwdriver or 10mm socket (as applicable).
• Position the latch into the door and start the fasteners by hand.
• Tighten latch fasteners with a Torx T30 driver or 10mm socket: Torque to 7.5 Nm (66 in-lbs).

Step 10: Reconnect linkages and wiring

• Reconnect the outside handle rod/cable and close its retainer using needle-nose pliers.
• Reconnect the inside handle rod and snap its retainer closed using a pick tool.
• Plug in the latch/actuator electrical connector until it clicks.

Step 11: Re-seal the water shield

• Press the water shield back into the butyl adhesive firmly by hand.
• If the adhesive is damaged or won’t stick, apply butyl tape and press the shield in place.

Step 12: Reinstall the door panel

• Reconnect all door panel electrical connectors.
• Hook the top of the panel onto the window channel and press it down into place.
• Press around the edges to snap the clips in by hand.
• Reinstall screws using a Phillips #2 screwdriver. Torque to 2.0 Nm (18 in-lbs).

Step 13: Reinstall the switch panel and reconnect the battery

• Plug connectors back into the switch panel, then press the panel into place by hand.
• Reconnect the negative battery cable using a 10mm socket. Torque to 5.4 Nm (48 in-lbs).

---

✅ After Repair

• Test the door lock with the key fob and the interior switch (lock/unlock several times).
• Test the inside and outside door handles to confirm the door opens normally.
• Confirm the window and mirror controls work (if equipped).
• Check that the door panel is fully seated and there are no rattles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
