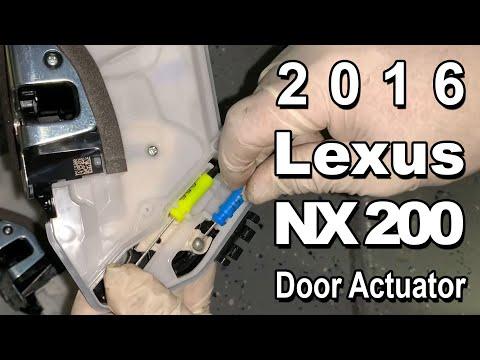

🔧 NX200t - Front Door Lock Actuator Replacement

The front door lock actuator on your NX200t is built into (or attached to) the door latch mechanism inside the door. Replacing it requires removing the interior door panel, unplugging the actuator connector, and swapping the latch/actuator assembly so the power locks work reliably again.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before unplugging door wiring.
• ⚠️ Keep the key fob 10+ feet away so the car can’t “wake up.”
• ⚠️ Use gloves—door inner metal edges can be very sharp.
• ⚠️ Do not tear the vapor barrier (plastic sheet); it prevents water leaks and wind noise.
• ⚠️ Support the door panel as you unplug connectors; don’t hang it by the wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Phillips #2 screwdriver
• Small flathead screwdriver
• Trim panel removal tool (specialty)
• Needle-nose pliers
• Pick tool (specialty)
• Torque wrench (in-lb capable)
• Painter’s tape
• Work light
• Magnetic parts tray
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: 6-12 (as needed)
• Butyl seal tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and lower the window about halfway (this gives better access inside the door).
• Use painter’s tape on painted edges near the handle area to prevent scratches.
• Disconnect the 12V battery negative terminal using a 10mm socket.
• Trim tool = plastic pry tool to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door handle trim and switch trim

• Use a trim panel removal tool (specialty) to gently pry up the window switch panel.
• Unplug the switch connectors by pressing the lock tab with a pick tool (specialty), then pulling straight out.
• Use a small flathead screwdriver to pop the small cover behind/near the interior door handle (it hides a screw).

Step 2: Remove door panel screws

• Remove the screw behind the interior handle using a Phillips #2 screwdriver.
• Remove the screw(s) in the armrest/pull handle area using a Phillips #2 screwdriver or 10mm socket (varies by trim).
• Place screws in a magnetic parts tray.

Step 3: Release the door panel clips and lift the panel off

• Starting at the bottom edge, slide the trim panel removal tool (specialty) under the panel and pop the clips loose one-by-one.
• Once clips are released, lift the whole panel straight upward to unhook it from the window ledge.
• Support the panel and unplug any remaining connectors using the pick tool (specialty) as needed.

Step 4: Disconnect the interior handle cable/rod

• At the interior handle area, you’ll see a cable or rod connection going to the latch.
• Use a small flathead screwdriver to flip the retaining clip open, then lift the cable end/rod out.
• Don’t force clips—pry the lock, then remove.

Step 5: Peel back the vapor barrier

• Carefully peel the plastic water shield back far enough to reach the latch area.
• If the butyl adhesive fights you, warm it with your hands and pull slowly.
• Keep dirt off the sticky butyl so it reseals later.

Step 6: Unplug the door lock actuator/latch connector

• Locate the latch/actuator electrical connector near the rear edge of the door (by the latch).
• Press the connector tab with a pick tool (specialty) and unplug it.

Step 7: Disconnect the outside handle rod/cable from the latch

• Reach inside the door to the latch area and find the outside handle linkage (usually a rod with a colored clip).
• Use needle-nose pliers or a small flathead screwdriver to rotate the clip open, then lift the rod out.

Step 8: Remove the latch/actuator assembly

• Open the door and locate the 3 latch fasteners on the door’s rear edge.
• Remove them using a 10mm socket, 1/4" drive ratchet, and 6" extension.
• Work the latch/actuator assembly out through the access opening inside the door.
• On reinstallation: Torque to 7.5 Nm (66 in-lbs).

Step 9: Install the new actuator/latch assembly

• Position the new assembly into the door the same way the old one came out.
• Start all latch fasteners by hand to avoid cross-threading, then tighten with a 10mm socket.
• Torque to 7.5 Nm (66 in-lbs) using a torque wrench (in-lb capable).
• Reconnect the outside handle rod/cable and snap the retaining clip fully closed.
• Plug in the electrical connector until it clicks.

Step 10: Re-seal the vapor barrier

• Press the vapor barrier back into the butyl adhesive all the way around.
• If it won’t stick well, apply butyl seal tape to restore a continuous seal.

Step 11: Reinstall the door panel

• Reconnect the interior handle cable/rod and lock the retaining clip using a small flathead screwdriver.
• Reconnect all electrical connectors (switch panel, courtesy light, etc.).
• Hang the panel on the upper window ledge, then press clips in around the edges using your palm.
• Reinstall screws using a Phillips #2 screwdriver or 10mm socket.
• Torque (small interior screws): 2.0 Nm (18 in-lbs).
• Snap trim covers and the switch panel back in place.

---

✅ After Repair

• Reconnect the 12V battery negative terminal using a 10mm socket.
• Test: lock/unlock with the key fob, interior switch, and the mechanical key (if equipped).
• Confirm the exterior handle opens the door and the interior handle works normally.
• Re-initialize the power window if needed: hold the window switch fully down 2 seconds, then fully up 2 seconds.
• Listen for abnormal clicking/grinding from the latch area; if heard, recheck linkage seating and clip locks.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $230-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
