🔧 Corolla - Front Door Lock Actuator Replacement

On your Corolla, the front door lock actuator is the electric motor/gear unit that locks and unlocks the door. Most of the time it’s built into the door latch assembly, so replacement means removing the inner door panel, unplugging the latch wiring, and swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: actuator is integrated with the door latch.

---

⚠️ Safety & Precautions

• ⚠️ Work with the window fully up and the key away from the car to prevent accidental power operation.
• ⚠️ Disconnect the negative battery cable before unplugging door wiring to avoid shorts and accidental airbag/SRS warnings.
• ⚠️ Door edges are sharp; wear gloves and move slowly behind the metal door skin.
• ⚠️ Support the door panel as you lift it off so you don’t damage the wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Phillips #2 screwdriver
• Torx T30 driver
• Trim removal tool set
• Small flat trim pick
• Needle-nose pliers
• Magnetic pickup tool
• Torque wrench (in-lb or Nm)
• Painter’s tape
• Butyl adhesive roller or plastic scraper
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: 6-12
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and keep the window fully closed.
• Use 10mm socket to disconnect the negative battery terminal, then wait 2 minutes before unplugging door connectors.
• Put painter’s tape along the door edge and near the mirror sail area to prevent scratches.
• Set screws in a tray and label them by location.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the window/lock switch panel

• Use a trim removal tool set to gently pry up the switch panel from the armrest.
• Unplug the electrical connectors by pressing the tab with a small flat trim pick, then pulling straight out.

Step 2: Remove hidden door panel screws

• Use a small flat trim pick to pop out any small plastic screw covers in the pull handle/armrest area.
• Remove screws using a Phillips #2 screwdriver (and if equipped with a 10mm bolt, remove it using a 10mm socket and 1/4" ratchet).

Step 3: Remove the inner door handle bezel

• Use a trim removal tool set to pry the bezel around the inside door handle outward.
• Work slowly so the clips don’t snap. Pry close to each clip.

Step 4: Pop the door panel clips loose

• Starting at the bottom corner, slide in a trim removal tool set and pop the clips out one by one.
• A “trim clip” is a plastic push fastener that holds the panel to the door; popping straight out helps prevent breaking it.

Step 5: Lift the door panel up and off

• Lift the whole panel straight upward to unhook it from the top window channel.
• Disconnect any remaining connectors using a small flat trim pick.
• Set the panel somewhere safe (face up) to avoid scratching it.

Step 6: Peel back the vapor barrier

• The vapor barrier is the plastic sheet that keeps water off the door panel.
• Use a plastic scraper or butyl adhesive roller or plastic scraper to carefully peel it back without tearing it.
• Stick it out of the way using painter’s tape.

Step 7: Disconnect the latch/actuator wiring connector

• Locate the latch/actuator connector near the rear edge of the door (near the latch area).
• Press the locking tab with a small flat trim pick and unplug it.

Step 8: Detach the linkage rods from the latch

• Use a work light to clearly see the rods and clips.
• Each rod usually has a small colored plastic retainer clip; flip the clip open with a small flat trim pick, then lift the rod out.
• Use needle-nose pliers only if needed; too much force can crack the clip.

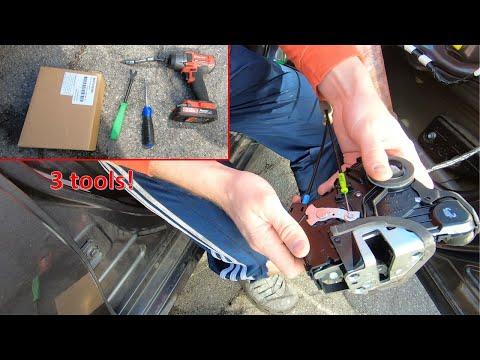

Step 9: Remove the latch/actuator from the door

• On the door’s rear edge (where the door latches shut), remove the three latch fasteners using a Torx T30 driver.
• Support the latch with your other hand so it doesn’t drop inside the door. Use a magnetic pickup tool if a screw falls.
• Maneuver the latch/actuator assembly out through the main access opening.

Step 10: Install the new actuator/latch assembly

• Slide the new assembly into position the same way the old one came out.
• Start all three latch fasteners by hand, then tighten with a Torx T30 driver.
• Torque to 8 Nm (71 in-lbs) using a torque wrench.

Step 11: Reconnect linkage rods and wiring

• Install each rod back into its hole, then lock the retainer clip back over the rod using your fingers or a small flat trim pick.
• Plug in the actuator connector until it clicks.

Step 12: Quick function test (before reassembly)

• Reconnect the negative battery cable using a 10mm socket.
• Test: power lock/unlock, inside handle opens the door, and the key fob works.
• Disconnect the negative battery cable again using a 10mm socket before reinstalling the vapor barrier and panel.

Step 13: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into the butyl; add butyl tape where it no longer sticks.
• Hang the door panel on the top lip first, then press around the edges to snap clips in place.
• Reinstall screws using a Phillips #2 screwdriver (and 10mm socket if equipped).
• Snap trim covers and the handle bezel back on using your hands.

Step 14: Reinstall the switch panel

• Plug in connectors and press the switch panel back into the armrest until it snaps in.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Verify the door locks/unlocks from the switch, key fob, and (if equipped) the smart key buttons.
• Confirm the door opens from inside and outside, and the lock knob moves smoothly.
• Check that the window and mirror controls work (connector check).
• Listen for abnormal clicking/grinding; if present, recheck rod routing and clip seating.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $70-$220 (parts only)

You Save: $230-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
