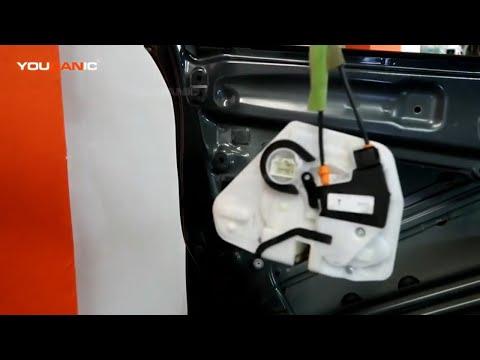

🔧 CX-5 - Front Door Lock Actuator Replacement

On your CX-5, the “door lock actuator” is typically built into the door latch/lock actuator assembly inside the door. Replacing it means removing the interior door panel, unplugging the latch wiring, disconnecting the handle/lock rods, and swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours (first-timer)

---

⚠️ Safety & Precautions

• ⚠️ Work with the window fully up to prevent glass damage.
• ⚠️ Disconnect the negative battery terminal before unplugging door electronics.
• ⚠️ Use plastic trim tools to avoid cracking trim and scratching paint.
• ⚠️ Don’t yank the door panel off—wiring connectors and the handle cable/rods can tear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Phillips #2 screwdriver
• Torx T30 bit
• Trim removal tool (plastic)
• Needle-nose pliers
• Pick tool
• Flashlight
• Painters tape
• Magnetic parts tray
• Gloves
• Safety glasses
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel trim clips - Qty: 5-10 (as needed)
• Butyl tape (door moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, ignition OFF, key removed.
• Lower the window slightly, then raise it fully so it’s seated at the top.
• Use a 10mm wrench to disconnect the negative battery terminal and wait 2 minutes.
• Apply painters tape along the painted door edge near the latch area to prevent scratches.
• A trim tool is a plastic pry tool.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the switch panel and inner trim

• Use a trim removal tool (plastic) to pry up the power window switch panel from the armrest.
• Unplug the electrical connectors by pressing the tabs with a pick tool and pulling straight out.
• Use a Phillips #2 screwdriver to remove any screws hidden under small covers (pop covers with the pick tool).

Step 2: Remove the interior door panel

• Use the trim removal tool (plastic) to pry around the edges of the door panel to pop the clips.
• Lift the door panel straight upward to unhook it from the window ledge.
• Support the panel and unplug any remaining connectors using the pick tool.
• If equipped with a handle cable/rod, disconnect it carefully using needle-nose pliers.
• Keep clips with the panel so they don’t vanish.

Step 3: Peel back the moisture barrier

• Use gloves and slowly peel the plastic moisture barrier back from the rear (latch) side of the door.
• If the adhesive won’t stick later, plan to use butyl tape during reassembly.

Step 4: Disconnect the latch/actuator wiring

• Locate the latch/actuator connector near the rear of the door.
• Press the lock tab with a pick tool and unplug the connector.

Step 5: Disconnect the rods/cables from the latch

• Use a flashlight to identify the inside handle rod/cable and the outside handle rod (if rod-style).
• Release the plastic retaining clips (they flip open), then lift the rod ends out using needle-nose pliers.
• Don’t bend rods; it causes hard door operation.

Step 6: Remove the latch/actuator from the door edge

• Open the door and find the latch fasteners on the trailing edge of the door (near the striker).
• Use a Torx T30 bit with a 1/4" ratchet and 6" extension to remove the latch mounting screws.
• Pull the latch/actuator assembly inward and maneuver it out through the access opening.

Step 7: Install the new latch/actuator

• Transfer any brackets/clips from the old unit to the new one (use needle-nose pliers if needed).
• Slide the new latch/actuator into position and start the screws by hand.
• Use the Torx T30 bit to tighten the latch mounting screws: Torque to 8 Nm (71 in-lbs).

Step 8: Reconnect rods/cables and wiring

• Reconnect each rod end into its lever and close the retaining clip (use needle-nose pliers as needed).
• Plug in the latch/actuator connector until it clicks.
• Before the panel goes back on, manually test the latch: use a screwdriver shaft to rotate the latch closed, then pull the handle to release. Use a flashlight to confirm movement.
• Don’t slam the door with the panel off.

Step 9: Reinstall the moisture barrier and door panel

• Press the moisture barrier back into place; add butyl tape where the original adhesive is weak.
• Reconnect all door panel electrical connectors (use the pick tool if tabs are stubborn).
• Hang the panel on the upper ledge, then press clips in around the edges.
• Reinstall screws using a Phillips #2 screwdriver.
• Snap trim covers and the switch panel back in using the trim removal tool (plastic) to align cleanly.

Step 10: Reconnect battery

• Reconnect the negative battery terminal using a 10mm wrench.
• Snug the terminal: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Verify lock/unlock operation from the key fob (if equipped) and the interior switch.
• Test inside and outside handles for smooth opening.
• Confirm the door locks/unlocks with the key in the exterior cylinder (if equipped).
• Cycle the window fully down and up once to confirm switch operation.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
