🔧 Corolla - Front Door Lock Actuator Replacement

The front door lock actuator is the small motor inside the door latch that locks/unlocks the door. On your Corolla, it’s typically replaced as part of the door latch/lock actuator assembly inside the door.

Quick question: Are we working on the front driver door or front passenger door on your Corolla?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to prevent short circuits.
• ⚠️ Wear safety glasses; door panel clips can pop loose suddenly.
• ⚠️ Support the door glass and keep fingers clear of the window regulator area.
• ⚠️ Don’t tear the vapor barrier (the plastic sheet). It prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 1/4" ratchet
• 6" extension for 1/4" ratchet
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• Trim removal tool
• Needle-nose pliers
• Pick tool
• Torque wrench (in-lb)
• Painter’s tape
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel clip set - Qty: 1
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, key out, and keep the window fully up.
• Open the door you’re repairing and keep it from swinging (a door stop helps).
• Disconnect the battery: use a 10mm socket to remove the negative terminal, then isolate it so it can’t touch the post again.
• Tip: Take photos of rods/connectors as you go.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

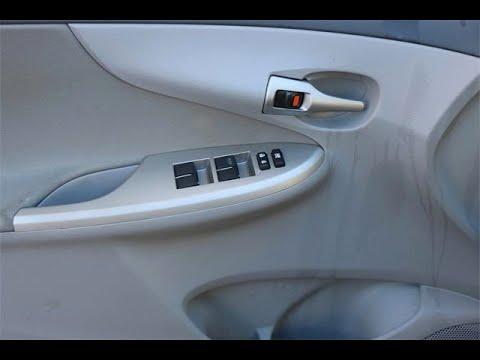

Step 1: Remove the window switch panel

• Use a trim removal tool to carefully pry up the window switch panel.
• Unplug the electrical connectors using a small flat-blade screwdriver to release the tabs (don’t pull on wires).

Step 2: Remove the inside handle trim and door panel screws

• Use a small flat-blade screwdriver to pop off the trim near the inside door handle.
• Remove the exposed screws using a Phillips #2 screwdriver.
• Check the armrest/pull handle area for another screw and remove it using a Phillips #2 screwdriver.

Step 3: Remove the door panel (door trim)

• Slide a trim removal tool behind the panel edge and pop out the push-clips all the way around.
• Lift the panel straight upward to unhook it from the window ledge.
• Disconnect any remaining connectors using your hands or a pick tool for stubborn tabs.
• Tip: If a clip stays in the door, pull it out with pliers.

Step 4: Peel back the vapor barrier

• Carefully peel the plastic vapor barrier back enough to access the latch area.
• If the sticky sealant strings out, use butyl tape later to reseal it.

Step 5: Disconnect the actuator/latch electrical connector

• Locate the latch/actuator connector near the rear edge of the door.
• Press the tab and unplug it; use a pick tool gently if the tab is hard to press.

Step 6: Detach the door handle and lock rods

• Inside the door, you’ll see metal rods going to the latch (these are linkage rods—thin metal rods that connect the handle/lock to the latch).
• Use a pick tool or small flat-blade screwdriver to flip the colored plastic retaining clips open.
• Slide each rod out of its clip and set the rods aside without bending them.
• Use needle-nose pliers if a rod is tight, but don’t crush it.

Step 7: Remove the latch/actuator assembly from the door

• At the door’s rear edge (where the door latches to the body), remove the latch mounting screws using a Phillips #2 screwdriver.
• Support the assembly with one hand and work it out through the access opening.
• Remove any bracket bolts you encounter using a 10mm socket, 1/4" ratchet, and 6" extension.

Step 8: Install the new latch/actuator assembly

• Position the new assembly into the door the same way the old one came out.
• Start the latch mounting screws by hand, then tighten with a Phillips #2 screwdriver.
• If you removed any 10mm bolts, reinstall and tighten using a 10mm socket and torque wrench (in-lb) to the same snugness as removal if you don’t have the exact spec available for your fasteners.
• Reconnect the electrical connector until it clicks.

Step 9: Reconnect rods and verify operation before reassembly

• Reinstall each linkage rod into its hole, then snap the plastic retaining clip closed using your fingers or a pick tool.
• Reconnect the battery negative terminal using a 10mm socket.
• Test: lock/unlock using the key fob (if equipped), the inside lock switch, and the outside/inside handle.
• Disconnect the battery negative terminal again using a 10mm socket before final reassembly.
• Tip: If it won’t open, a rod clip is not seated.

Step 10: Re-seal vapor barrier and reinstall the door panel

• Press the vapor barrier back into the sticky butyl; add butyl tape where it no longer sticks.
• Reconnect door panel electrical connectors by hand.
• Hang the door panel on the top lip, then press clips in around the perimeter using your hands.
• Reinstall screws using a Phillips #2 screwdriver.
• Snap the handle trim and window switch panel back in using your hands and a trim removal tool if needed.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Confirm: inside handle opens door, outside handle opens door, manual lock works, and power lock works.
• Make sure the vapor barrier is fully sealed to help prevent wet carpet and window fogging.
• If the auto-up/down window feature acts strange, cycle the window fully down and fully up once.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $230-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
