🔧 Front Door Lock Actuator - Replacement

The front door lock actuator on your F-150 is built into the door latch assembly, so the repair usually means replacing the complete latch/actuator unit inside the door. You’ll remove the door panel, disconnect the linkage and electrical connectors, then swap in the new assembly and test the lock operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before working in the door. This helps prevent accidental short circuits and unintended power-window movement.
• Use care around the side airbag area in the door trim. Do not probe yellow airbag connectors.
• Support the window glass if the regulator or sash area is exposed.
• Work with the door fully open and on level ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 10mm socket
• Ratchet
• Short extension
• Phillips screwdriver
• Trim panel tool
• Flat plastic pry tool
• Needle-nose pliers
• Torque wrench
• Work light
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch and lock actuator assembly - Qty: 1
• Door panel clip set - Qty: 1
• Moisture barrier butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and fully open the affected door.
• Lower the window glass before disconnecting the battery.
• Disconnect the negative battery cable.
• Keep all screws organized by location.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a Phillips screwdriver and 7mm socket to remove the door panel screws around the handle, armrest, and lower edge.
• Use a trim panel tool to pop the panel clips loose one by one.
• Lift the panel straight up to release it from the window ledge.
• Disconnect the electrical connectors for the switch panel and puddle light if equipped.

Step 2: Remove the moisture barrier

• Use a flat plastic pry tool to carefully peel back the moisture barrier.
• Keep the adhesive clean so it can be reused.
• Do not tear the barrier.

Step 3: Disconnect the handle and lock linkages

• Use needle-nose pliers to release the retaining clips on the inside handle cable and lock rods.
• Unhook the rods from the latch assembly.
• Disconnect the electrical connector to the actuator.

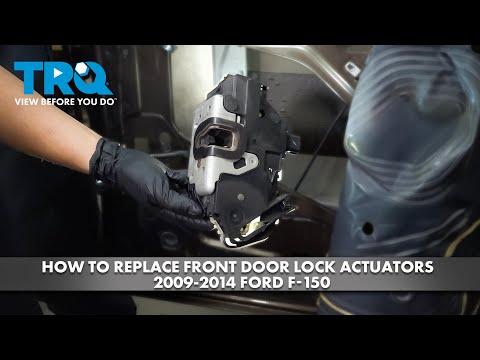

Step 4: Remove the latch/actuator assembly

• Use a 10mm socket with a ratchet and short extension to remove the latch mounting bolts from the door edge.
• Pull the latch assembly out through the access opening inside the door.
• Rotate the assembly for the easiest exit path.

Step 5: Install the new latch/actuator assembly

• Position the new assembly into the door opening and reconnect the electrical connector.
• Reattach the lock rods and handle cable exactly as removed.
• Install the mounting bolts with a 10mm socket.
• Torque to 8 Nm (71 in-lbs).

Step 6: Reassemble the door

• Press the moisture barrier back into place with the original adhesive or moisture barrier butyl tape if needed.
• Reconnect all electrical connectors to the door panel.
• Set the door panel on the window ledge, then press the clips in with your hands.
• Reinstall all screws with the Phillips screwdriver and 7mm socket.

Step 7: Reconnect power and test

• Reconnect the negative battery cable.
• Test the lock, unlock, inside handle, outside handle, and power window functions.
• Make sure the door closes and latches normally.

---

✅ After Repair

• Cycle the lock several times with the key fob and interior switch.
• Check that the door opens from both inside and outside.
• Listen for any binding or clicking from the latch.
• If the window or door switch does not work, recheck the electrical connectors in the panel.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
