🔧 Front Door Lock Actuator - Replacement

The front door lock actuator is built into the latch assembly on your Passat. This repair means removing the door trim panel, disconnecting the latch cables and wiring, and swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery terminal before starting. Door harnesses can include airbag-related wiring and power windows.
• Wait at least 10 minutes after battery disconnect before touching door connectors.
• Support the door panel as you remove the last fasteners so it does not fall.
• Keep the window fully raised to avoid glass damage.
• Work slowly around plastic clips.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim panel removal tool
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• 8mm socket
• 10mm socket
• Ratchet
• Extension bar
• Phillips screwdriver
• Pick tool
• Plastic clip tool
• Torque wrench
• Safety glasses
• Work gloves
• Masking tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator / latch assembly - Qty: 1
• Door panel clip set - Qty: 1
• Door vapor barrier adhesive - Qty: 1
• Optional new interior door handle cable - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the front window slightly if needed for panel access, then raise it fully before disconnecting the door hardware.
• Disconnect the negative battery terminal with a 10mm socket.
• Keep screws organized by location. Some trim screws are different lengths.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

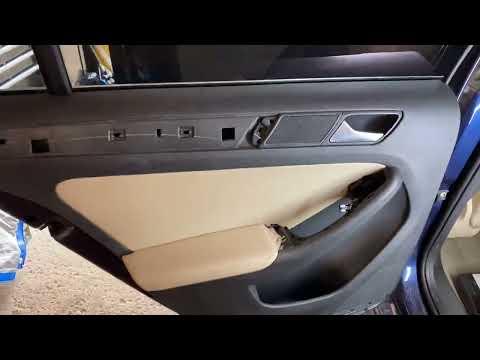

Step 1: Remove the door trim panel

• Use a trim panel removal tool to pry off the small trim covers near the pull handle and behind the inner door release.
• Use a Torx T20 screwdriver or Torx T25 screwdriver to remove the visible trim screws.
• Use a plastic clip tool to release the door panel clips around the perimeter.
• Lift the panel upward to unhook it from the top edge of the door.
• Keep one hand under the panel.

Step 2: Disconnect the door panel wiring

• Use your hands or a small pick tool to disconnect the electrical connectors for the window switches, speakers, and any courtesy light.
• Set the trim panel aside on a soft surface.

Step 3: Remove the moisture barrier

• Use a trim tool and your hands to carefully peel back the vapor barrier.
• Do not tear it. Reuse the adhesive if it still sticks well.
• Seal it back tightly later.

Step 4: Remove the exterior handle access plug

• Open the door and locate the round access plug on the door edge.
• Use a pick tool to remove the plug.
• Use a Torx T20 screwdriver to loosen the retaining screw inside the door edge until the exterior handle releases slightly.

Step 5: Remove the outside door handle

• Pull the exterior handle outward slightly and slide it free from the door.
• Disconnect any handle-related linkage if equipped.

Step 6: Disconnect the latch and actuator connections

• Use a pick tool to release the inner handle cable from the latch.
• Unclip the latch wiring connector by pressing the lock tab and pulling it straight off.
• Trace the cables so they go back the same way during installation.

Step 7: Remove the latch / actuator assembly

• Use a Torx T30 screwdriver to remove the latch mounting bolts on the door edge.
• Support the latch with one hand while removing the last bolt.
• Rotate and work the latch assembly out through the service opening in the door.
• Do not force it past the window track.

Step 8: Install the new actuator / latch assembly

• Feed the new latch assembly into the door opening in the same orientation as the old unit.
• Reconnect the electrical connector until it clicks.
• Reconnect the inner handle cable and make sure the cable end seats fully.
• Install the Torx T30 mounting bolts and tighten them evenly.
• Torque to 9 Nm (80 in-lbs)

Step 9: Reinstall the exterior handle

• Slide the exterior handle back into place.
• Use a Torx T20 screwdriver to snug the retaining screw inside the door edge.
• Reinstall the access plug.
• Torque to 2 Nm (18 in-lbs)

Step 10: Reinstall the moisture barrier and door panel

• Press the vapor barrier back into place all the way around the opening.
• Reconnect all door panel electrical connectors.
• Hook the top of the panel onto the window ledge first.
• Press the clips in around the perimeter by hand.
• Install all trim screws with a Torx T20 or Torx T25 screwdriver.
• Torque to 3-4 Nm (27-35 in-lbs)

Step 11: Reconnect the battery and test the repair

• Reconnect the negative battery terminal with a 10mm socket.
• Test the door lock with the key fob, inside switch, and mechanical key if equipped.
• Test the inside and outside door handles.
• Verify the window switch and speaker still work.

---

✅ After Repair

• Cycle the lock several times to make sure the latch moves smoothly.
• Listen for any rubbing or clicking from inside the door.
• Check that the door closes and latches normally.
• If the door handle feels stiff, recheck the cable routing.
• If the window one-touch feature acts up, relearn the window stops by fully raising and lowering it once.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 (parts + labor)

DIY Cost: ₹4,500-₹11,000 (parts only)

You Save: ₹7,500-₹14,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 2-4 hours.

---
