🔧 RAV4 - Front Door Lock Actuator Replacement

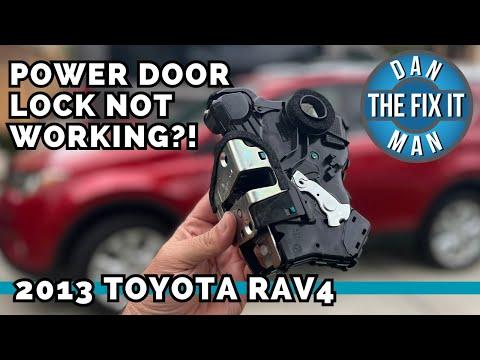

The front door lock actuator is the small electric motor/gear unit that moves the lock inside the door when you press the lock/unlock switch or use the key fob. Replacing it requires removing the interior door panel, peeling back the water shield, and disconnecting linkage rods and electrical connectors.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce airbag/short risk.
• ⚠️ Work with the window fully up to avoid glass damage.
• ⚠️ Don’t tear the water shield (plastic sheet); it prevents water leaks into the cabin.
• ⚠️ Use trim tools (not a screwdriver) to avoid breaking clips.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Small flat trim pick
• Plastic trim removal tool set
• Needle-nose pliers
• Magnetic pickup tool
• Painter’s tape
• Butyl tape (automotive)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator (or latch/actuator assembly, depending on design) - Qty: 1
• Door panel clips - Qty: 4-10
• Water shield butyl seal (automotive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, ignition OFF, and keep the window fully up.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Use painter’s tape along door edges to protect paint while you work.
• Quick questions so I give the exact, correct steps (please reply with both):
• ❓ Which side: front driver or front passenger?
• ❓ Are you replacing the actuator motor only or the complete latch/actuator assembly (most common)?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the part you’re replacing

• Before disassembly, tell me your answers from “Before You Begin” so I can match the correct removal path and connector/rod layout.
• This avoids buying the wrong style actuator.

Step 2: Remove the interior door handle trim

• Use a plastic trim removal tool set to gently pry off the small trim cover near the inside door handle.
• Use a Phillips #2 screwdriver to remove the screw behind that cover (if equipped).

Step 3: Remove the armrest / switch panel

• Use a plastic trim removal tool set to lift the window/lock switch panel up.
• Unplug the electrical connector(s) using a small flat trim pick to release the locking tab (a locking tab is the small clip that holds the plug in).
• Use a Phillips #2 screwdriver to remove any screws revealed under the switch panel.

Step 4: Remove the door panel

• Check for any remaining screws at the bottom/side of the panel; remove with a Phillips #2 screwdriver.
• Use a plastic trim removal tool set to pop the panel clips free around the perimeter.
• Lift the panel straight up and off the window ledge.
• Disconnect any remaining connectors using the small flat trim pick if needed.

Step 5: Remove the water shield (plastic moisture barrier)

• Carefully peel the plastic water shield back by hand; don’t rip it.
• If the adhesive is stubborn, use the plastic trim removal tool set to help separate it.
• Save it for reinstallation; you’ll reseal it with butyl tape (automotive).

Step 6: Access the latch/actuator area

• Use a work light to look inside the door at the rear edge (latch area).
• Use painter’s tape to secure any loose wiring out of your way.

Step 7: Disconnect linkage rods

• Use needle-nose pliers to rotate the colored plastic retaining clips off the rod ends, then lift the rod out.
• Rotate the clip—don’t pry the rod out first.

Step 8: Unplug the actuator/latch electrical connector

• Use a small flat trim pick to press the locking tab, then pull the connector straight off.

Step 9: Remove the latch/actuator from the door

• At the door’s rear edge, remove the latch mounting bolts using a 10mm socket, 1/4" drive ratchet, and 6" extension.
• Support the latch inside the door as the last bolt comes out so it doesn’t drop; use a magnetic pickup tool if hardware slips.
• Work the latch/actuator assembly out through the access opening.

Step 10: Replace actuator (depends on style)

• If your RAV4 uses a complete latch/actuator unit: swap in the new assembly in the same orientation.
• If your RAV4 uses a separate actuator motor on the latch: remove the actuator screws with a Phillips #2 screwdriver, transfer it, and reassemble.
• I’ll tailor this step once you confirm which style.

Step 11: Reinstall latch/actuator and reconnect everything

• Position the latch back into the door and start bolts by hand, then tighten with a 10mm socket.
• Reconnect the electrical connector until it clicks.
• Reattach the linkage rods and lock the plastic retaining clips back over the rods using needle-nose pliers.

Step 12: Reseal water shield and reinstall door panel

• Apply butyl tape (automotive) where needed, then press the water shield firmly back into place by hand.
• Hang the door panel on the top ledge, then press clips in around the perimeter.
• Reinstall screws with a Phillips #2 screwdriver.
• Plug in the switch panel connectors and snap the panel back in using a plastic trim removal tool set.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Test before fully closing up: lock/unlock with the switch and key fob, and confirm the inside/outside handles open the door normally.
• Confirm the window switch works and the door panel sits flush (no loose clips).
• If water shield wasn’t sealed well, you can get water leaks—re-press the edges firmly.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
