Assumption: This is for the front door lock actuator inside the front door latch assembly on your Ram.

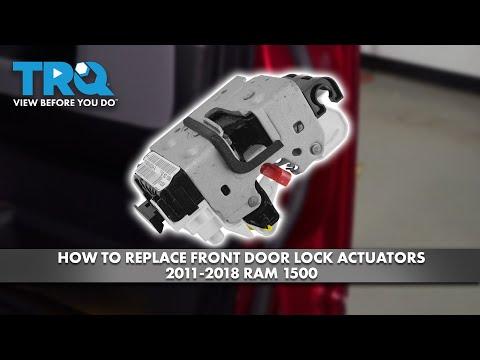

🔧 Front Door Lock Actuator - Replacement

The front door lock actuator is built into the door latch assembly on this truck, so the repair usually means removing the door panel, vapor barrier, and latch assembly. If the actuator is weak, noisy, or only works sometimes, replacing the latch/actuator assembly is the correct fix.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. This helps prevent accidental short circuits and window switch issues.
• Use care around side-impact airbag wiring in the door. Do not probe yellow connectors.
• Support the door panel when releasing clips so it does not fall or crack.
• Keep the window fully up before removing the inner trim.
• Work with the door open on level ground and set the parking brake.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• 1/4-inch ratchet
• 1/4-inch extension
• Torx T20 screwdriver
• Trim panel removal tool
• Flat plastic pry tool
• Needle-nose pliers
• Torque wrench
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door panel retaining clips - Qty: 1 set
• Door latch linkage clip - Qty: 1
• Butyl tape or door vapor barrier adhesive - Qty: 1 roll

---

📋 Before You Begin

• Park on level ground and open the front door fully.
• Lower the window slightly only if needed after the battery is disconnected, then raise it fully before disconnecting power.
• Disconnect the negative battery cable using a 10mm socket.
• Wait at least 2 minutes after disconnecting battery power before unplugging door connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a 7mm socket to remove the visible screws around the inner door handle and lower door panel.
• Use a trim panel removal tool to pop the door panel clips loose around the perimeter.
• Lift the panel upward to release it from the window ledge.
• Disconnect the electrical connectors and set the panel aside.

Step 2: Remove the moisture barrier

• Use a flat plastic pry tool to carefully peel back the vapor barrier.
• Keep the adhesive clean so it can be reused or resealed.
• Do not tear the barrier if you can avoid it.

Step 3: Disconnect the latch linkages

• Locate the lock rod and door handle linkages at the latch area.
• Use needle-nose pliers to release the small plastic retaining clips.
• Unhook the rods from the latch assembly.

Step 4: Remove the latch/actuator assembly

• Use a Torx T20 screwdriver to remove the latch fasteners at the rear edge of the door.
• Support the latch while removing the last fastener.
• Work the assembly out through the access opening in the door.
• Rotate the latch carefully to clear the opening.

Step 5: Install the new actuator/latch assembly

• Position the new assembly into the door and guide it into place.
• Reconnect the rods and secure each retaining clip fully.
• Install the Torx fasteners and tighten them with a torque wrench to 8 Nm (71 in-lbs).

Step 6: Reassemble the door

• Press the vapor barrier back into place using the original adhesive or new butyl tape.
• Reconnect the door panel electrical plugs.
• Set the panel on the upper window ledge and press the clips in place.
• Install the screws with a 7mm socket and snug them down.

Step 7: Reconnect battery and test

• Reconnect the negative battery cable with a 10mm socket.
• Test the power lock, key fob, interior switch, and manual door handle.
• Verify the door opens, locks, and unlocks smoothly.

---

✅ After Repair

• Cycle the lock several times with the key fob and interior switch.
• Check that the door closes firmly and the latch does not bind.
• Confirm the window switch, speaker, and mirror controls still work.
• Listen for rattles that could mean a loose clip or unplugged connector.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $230-$440 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
