🔧 Altima - Front Door Lock Actuator Replacement

The front door lock actuator is the small motor/gear unit that moves the door lock when you press the lock/unlock switch or remote. On your Altima, it’s attached to the door latch inside the door, so the job is mainly removing the interior door panel and swapping the actuator/latch assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first time)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal before working in the door to reduce risk of accidental airbag/short circuits.
• ⚠️ Support the window glass if you loosen any regulator/glass fasteners (dropping glass can shatter it).
• ⚠️ Don’t tear the vapor barrier (the plastic sheet). It prevents water leaks into the cabin.
• ⚠️ Keep the key away from the car while working to prevent unexpected lock/unlock cycling.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• Trim panel removal tool
• Needle-nose pliers
• Magnetic pickup tool
• Flashlight
• Painters tape
• Torque wrench (in-lb)
• Torque wrench (ft-lb)
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator (LH driver or RH passenger, as needed) - Qty: 1
• Door panel trim clips (front door) - Qty: 4-10 (as needed)
• Butyl tape (vapor barrier seal) - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn ignition OFF, and open the window on the door you’re repairing.
• Use 10mm socket to disconnect the battery negative terminal and isolate it so it can’t spring back. Torque to 5 Nm (44 in-lb) when reinstalling.
• Lay a towel on the door sill to protect paint and trim.
• Take photos of connectors/rods before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door handle trim and switch panel

• Use a trim panel removal tool (a plastic pry tool that pops panels without damage) to gently pry up the power window switch panel.
• Unplug the switch connector(s) by pressing the lock tab (use a small flat-blade screwdriver if the tab is tight).
• Use a small flat-blade screwdriver to pop off the small trim cover behind/near the interior door handle area (where a screw usually hides).

Step 2: Remove door panel screws

• Remove the screw behind the interior handle using a Phillips #2 screwdriver.
• Remove any screws in the armrest/pull handle area using a Phillips #2 screwdriver (some cars use multiple screws here).
• Put screws in a cup so they don’t get lost.

Step 3: Pop the door panel off the door

• Start at the lower edge of the door panel and use the trim panel removal tool to pop the retaining clips out one-by-one.
• Lift the whole door panel straight up to unhook it from the top window channel.
• Disconnect any remaining electrical connectors (use the flashlight to see the lock tabs).

Step 4: Peel back the vapor barrier

• Carefully peel back the plastic sheet (vapor barrier). If the adhesive stretches, use butyl tape later to reseal it.
• Use painters tape to hold the vapor barrier out of your way.

Step 5: Disconnect the door latch rods/cables

• Locate the rods running to the latch (lock rod and handle rod).
• Use a small flat-blade screwdriver to flip the colored plastic retaining clips open, then lift the rod out.
• If your Altima uses a handle cable instead of a rod, unclip the cable housing first, then lift the cable end out with needle-nose pliers.

Step 6: Unplug the actuator/latch electrical connector

• Find the latch/actuator connector near the latch and press the release tab to unplug it.
• If it’s stuck, use a small flat-blade screwdriver to help press the tab—don’t pry on the wires.

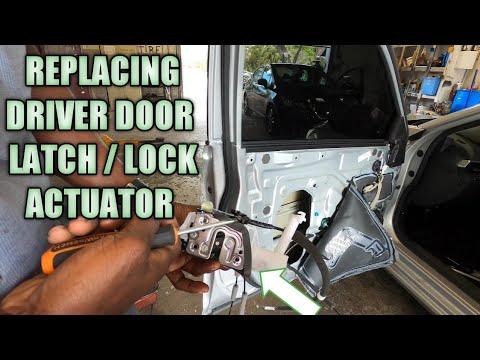

Step 7: Remove the latch/actuator assembly from the door

• At the door’s rear edge (where the door latches), remove the latch mounting bolts using a 10mm socket, ratchet, and extension.
• Carefully maneuver the latch/actuator assembly out through the access opening in the door.
• A magnetic pickup saves dropped bolts.
• On reassembly: Torque to 7 Nm (62 in-lb).

Step 8: Swap the actuator (if separate) or replace the complete latch/actuator

• If your replacement is the complete latch/actuator: skip to Step 9.
• If the actuator motor is separate from the latch: remove the small screws/fasteners holding it (commonly Phillips). Use a Phillips #2 screwdriver.
• Transfer any brackets/clips exactly as found.
• Reinstall actuator fasteners: Torque to 2 Nm (18 in-lb).

Step 9: Reinstall the latch/actuator assembly

• Place the assembly back into the door and align it to the bolt holes.
• Install the latch bolts by hand first to avoid cross-threading, then tighten with a 10mm socket.
• Torque to 7 Nm (62 in-lb).
• Reconnect the electrical connector until it clicks.

Step 10: Reconnect rods/cables and verify movement

• Reinstall each rod into its lever and snap the plastic retaining clip closed (use needle-nose pliers if needed).
• Before closing the door panel, manually move the inside handle and lock knob to confirm nothing binds.

Step 11: Reseal the vapor barrier

• Press the vapor barrier back into the original adhesive.
• If it won’t stick well, apply butyl tape along the perimeter and press firmly to seal.

Step 12: Reinstall the door panel

• Reconnect all electrical connectors (window switch, courtesy light if equipped).
• Hook the top of the door panel into the window channel first, then press the clips in around the edges using your palm.
• Reinstall screws using a Phillips #2 screwdriver. Torque to 2 Nm (18 in-lb).
• Snap the trim covers back in place.

Step 13: Reconnect battery and function-test

• Reconnect the battery negative terminal using a 10mm socket. Torque to 5 Nm (44 in-lb).
• Test: inside lock switch, remote lock/unlock, key in door (if equipped), and open/close from inside and outside.

---

✅ After Repair

• Confirm the door locks/unlocks consistently 10+ times from the switch and remote.
• Confirm the door opens from inside and outside and that the lock knob moves smoothly.
• Check that the window switch works and any courtesy light works.
• If the door sounds “windy” after, re-check the vapor barrier seal.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $190-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
