🔧 Front Door Lock Actuator - Replacement

The front door lock actuator inside your Silverado controls the power lock movement in the door latch assembly. If the lock is slow, clicks but does not move, or only works sometimes, the actuator is usually the fix.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting to avoid accidental airbag or electrical issues.
• Be careful around the side airbag wiring in the door area.
• Use trim tools only. Do not pry hard with metal tools or you can break clips and panels.
• Support the door panel as you remove it so it does not drop and tear wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 10mm socket
• Ratchet
• Short extension
• Flat trim panel tool
• Small pick tool
• Phillips screwdriver
• Torx T30 screwdriver
• Needle-nose pliers
• Torque wrench
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator assembly - Qty: 1
• Door panel clip set - Qty: 1
• Door handle bezel clip - Qty: 1
• Door vapor barrier adhesive - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the door fully.
• Lower the window glass all the way down.
• Disconnect the negative battery cable with a 10mm socket.
• Wait at least 2 minutes after disconnecting battery power.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a flat trim panel tool to pop off the small trim covers in the door pull and handle area.
• Use a 7mm socket to remove the screws holding the door panel.
• Use the trim panel tool to release the plastic clips around the edge of the panel.
• Lift the panel straight up to unhook it from the window ledge.
• Work slowly to avoid broken clips.

Step 2: Disconnect electrical connectors

• Use your hands and a small pick tool if needed to release the wiring connectors for the window switch and speaker.
• Set the door panel aside on a clean surface.

Step 3: Remove the moisture barrier

• Carefully peel back the plastic vapor barrier.
• If the adhesive is torn, clean it and apply door vapor barrier adhesive during reassembly.
• Keep the barrier intact if possible.

Step 4: Disconnect the actuator linkages

• Locate the latch and actuator assembly inside the door.
• Use a small pick tool to release the lock rod retainers and linkage clips.
• Use needle-nose pliers if a clip is tight or hard to reach.

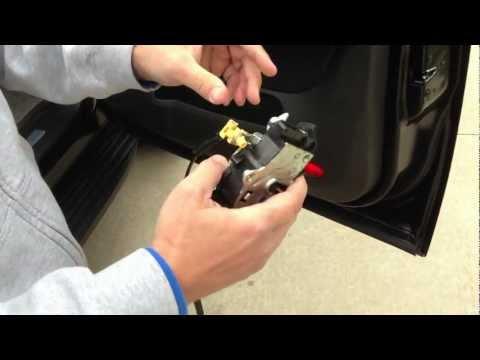

Step 5: Remove the door latch and actuator assembly

• Use a Torx T30 screwdriver to remove the latch mounting fasteners on the door edge.
• Use a 10mm socket with a short extension if any lower bracket fasteners are fitted.
• Slide the latch and actuator assembly out through the access opening in the door.

Step 6: Transfer any parts if needed

• If your replacement part does not include all clips or rods, transfer them one at a time from the old unit.
• Make sure every linkage clip snaps fully into place.

Step 7: Install the new actuator assembly

• Feed the new actuator and latch assembly into the door the same way the old one came out.
• Reconnect the rods and clips first, then install the mounting screws.
• Use a Torx T30 screwdriver to tighten the fasteners.
• Torque to 8 Nm (71 in-lbs) unless your replacement latch kit specifies otherwise.

Step 8: Reconnect wiring and test before reassembly

• Reconnect the actuator electrical connector.
• Reconnect the battery negative cable with a 10mm socket.
• Test the lock and unlock operation with the key fob and the interior switch.
• Make sure the door handle, lock button, and key cylinder all operate smoothly.

Step 9: Reassemble the door

• Reinstall the vapor barrier and press the adhesive down firmly.
• Reconnect the door panel wiring connectors.
• Hook the top of the panel onto the window ledge, then align the clips.
• Press around the edges to snap the panel into place.
• Install the screws with a 7mm socket.
• Reinstall all trim covers.

---

✅ After Repair

• Test lock and unlock from the key fob, door switch, and manual lock knob.
• Check that the door opens and latches normally from inside and outside.
• Listen for any clicking or binding from inside the door.
• Confirm the window switch and speaker still work after reassembly.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
