🔧 RAV4 - Front Door Lock Actuator Replacement

The front door lock actuator is the electric motor/gear unit that locks and unlocks the door through the latch. Replacing it requires removing the interior door panel, peeling back the moisture barrier, and swapping the actuator/latch assembly (or actuator motor, depending on design).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first-timer)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before unplugging door wiring.
• ⚠️ Keep the window fully up to avoid glass damage.
• ⚠️ Don’t tear the moisture barrier (plastic sheet); it prevents water leaks.
• ⚠️ Use care around sharp door metal edges; wear gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension for 1/4" ratchet
• Phillips #2 screwdriver
• Trim clip removal tool
• Small flat-blade screwdriver
• Needle-nose pliers
• Pick tool
• Torque wrench (inch-pound, 20–200 in-lb range)
• Painter’s tape
• Butyl tape for vapor barrier
• Work light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator - Qty: 1
• Door panel trim clips - Qty: 5-10
• Moisture barrier butyl sealant - Qty: 1

---

📋 Before You Begin

• Park on level ground and keep the window fully up.
• Use a 10mm socket to disconnect the battery negative terminal and wait 2 minutes.
• Answer these two quick questions so I match the correct part and exact fastener locations:
  • Which front door: driver (LH) or passenger (RH)?
  • Does your A4 have factory keyless entry (remote fob lock/unlock) or manual key only?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door handle bezel

• Use a small flat-blade screwdriver or pick tool to gently pop off the small trim cover behind/near the interior handle.
• Remove the exposed screw using a Phillips #2 screwdriver.

Step 2: Remove the armrest/door pull screws

• Look in the armrest/door pull pocket for covers.
• Pry covers with a trim clip removal tool, then remove screws with a Phillips #2 screwdriver or 10mm socket (fastener type varies).

Step 3: Remove the window/lock switch panel

• Use a trim clip removal tool to lift the switch panel from the front edge.
• Unplug connectors by pressing the tab and pulling straight out. Don’t pull on the wires.

Step 4: Pop the door panel clips and lift the panel off

• Slide a trim clip removal tool along the bottom/side edges to pop the clips.
• Lift the panel straight up to unhook it from the window ledge.
• Support the panel and disconnect any remaining connectors using a pick tool if needed.

Step 5: Peel back the moisture barrier (plastic sheet)

• Use your hands and a trim clip removal tool to carefully peel it back.
• If the butyl is sticky/stringy, use mechanic gloves and go slowly. Try not to stretch it.

Step 6: Disconnect the inside handle cables/rods

• Locate the latch/handle linkage near the rear of the door.
• Use needle-nose pliers and/or a pick tool to flip open the colored retaining clips, then lift the cable/rod out.
• A “retaining clip” is a small lock that holds the rod/cable in place.

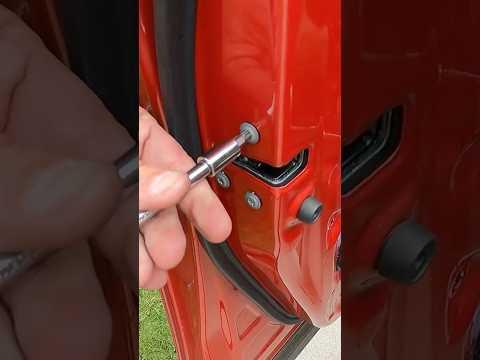

Step 7: Remove the latch/actuator fasteners

• At the door edge (where it closes), remove the latch mounting screws using the correct driver (commonly a Phillips #2 screwdriver on this generation, but some use Torx on certain builds).
• Inside the door, remove any additional actuator/latch bolts using a 10mm socket, 1/4" ratchet, and extension.
• Torque: Tighten latch/actuator fasteners to the factory specification for your exact door/fastener type (varies by build). Once you tell me LH/RH and keyless/manual, I’ll give the exact torque values.

Step 8: Unplug the actuator electrical connector

• Press the connector tab and unplug it. Use a pick tool gently if the tab is stubborn.

Step 9: Remove the latch/actuator assembly

• Maneuver the assembly out through the door access opening.
• If it hangs up, check for a missed rod/cable clip before forcing it.

Step 10: Install the new actuator/latch

• Position the new unit in the door and start all fasteners by hand.
• Tighten using a 10mm socket or screwdriver, then finish with a torque wrench to the correct factory spec (I’ll provide once you answer the two questions).
• Reconnect the electrical connector until it clicks.

Step 11: Reconnect handle rods/cables and verify movement

• Reinstall rods/cables and snap the retaining clips back into the locked position using needle-nose pliers.
• Manually operate the inside handle and lock knob to confirm smooth movement before reassembly.

Step 12: Reseal the moisture barrier

• Press the barrier back into the butyl seal.
• If it won’t stick, apply butyl tape and press firmly all the way around.

Step 13: Reinstall the door panel

• Reconnect all electrical connectors.
• Hang the panel on the top lip by the window, then press clips in around the perimeter using firm hand pressure.
• Reinstall screws with a Phillips #2 screwdriver or 10mm socket.
• Reinstall trim covers and the switch panel (press until it clicks).

Step 14: Reconnect battery and function test

• Reconnect the battery negative terminal using a 10mm socket.
• Test lock/unlock from the switch and remote (if equipped), and confirm the door opens from inside and outside.

---

✅ After Repair

• Verify the door locks/unlocks 10+ times without hesitation.
• Confirm the door panel is fully clipped (no rattles) by tapping around edges.
• Check for water-leak prevention: ensure the moisture barrier is fully sealed all around.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $290-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
