🔧 Grand Cherokee - Front Door Lock Actuator Replacement

On your Grand Cherokee, the front door “lock actuator” is typically built into the door latch assembly (the mechanism on the door edge). Replacing it usually means removing the interior door panel, peeling back the moisture barrier, then swapping the latch/actuator unit and reconnecting the cables and wiring.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring.
• ⚠️ Keep the window fully up during the repair to avoid glass damage.
• ⚠️ Use a trim clip tool to avoid cracking the door panel.
• ⚠️ Don’t tear the “vapor barrier” (the plastic sheet that keeps water out of the cabin).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torx T30 bit
• Torx T20 bit
• Phillips screwdriver #2
• Small flat-blade screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Torque wrench (in-lb capable)
• Flashlight
• Painters tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly (Left or Right, matching your door) - Qty: 1
• Door panel retainer clips - Qty: 6-12 (as needed)
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and remove the key.
• Lower the steering wheel and open the working door fully.
• Use painters tape along the painted door edge to prevent scratches.
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

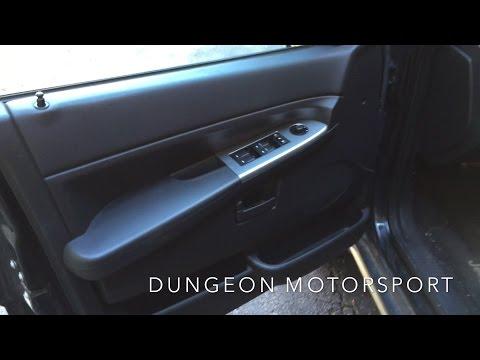

Step 1: Remove the interior door trim panel

• Use a small flat-blade screwdriver to gently pop off the trim cover(s) hiding screws (commonly near the door pull handle and/or behind the inside handle bezel).
• Remove the exposed screws using a Phillips screwdriver #2 and/or Torx T20 bit (varies by panel fastener style).
• Work around the panel edge and pop the clips free using a trim clip removal tool. Pull straight out; don’t twist hard.
• Lift the panel upward to unhook it from the window ledge.
• Unplug electrical connectors (window/lock switch) by depressing the tab using a small flat-blade screwdriver, then pulling the connector apart by hand.

Step 2: Remove the inside handle bezel and release the handle cable/rod

• Use a Phillips screwdriver #2 or Torx T20 bit to remove any screw(s) holding the inside handle bezel.
• Carefully pull the bezel out and locate the handle linkage (either a cable with a ball-end or a rod with a plastic clip).
• Release the linkage using a small flat-blade screwdriver and needle-nose pliers as needed:
  • If it’s a rod: flip the plastic retainer open, then lift the rod out.
  • If it’s a cable: rotate the cable housing out of its bracket, then pop the cable end out of the handle.

Step 3: Peel back the vapor barrier

• Carefully peel the plastic sheet back enough to access the latch area. Use your hands first; use a small flat-blade screwdriver only if needed.
• If the adhesive is messy or weak, plan to reseal it later with butyl tape.

Step 4: Disconnect the latch/actuator electrical connector

• Locate the latch wiring connector near the rear of the door (toward the latch).
• Press the tab and unplug it by hand; use a small flat-blade screwdriver to help depress the lock tab if it’s stubborn.

Step 5: Disconnect the exterior handle linkage (if equipped with cable)

• Look for the exterior handle cable/rod going to the latch.
• Release it using a small flat-blade screwdriver and needle-nose pliers (same idea as the inside handle linkage).

Step 6: Remove the door latch/actuator assembly from the door edge

• On the trailing edge of the door (where it latches), remove the latch mounting screws using a Torx T30 bit.
• Support the latch with your free hand so it doesn’t drop inside the door.
• Work the latch assembly out through the access opening, guiding the cables/rods and wiring through carefully.

Step 7: Install the new latch/actuator assembly

• Transfer any clips or cable ends from the old latch to the new one (if your replacement doesn’t include them) using needle-nose pliers.
• Position the new latch into the door and start the latch screws by hand to avoid cross-threading.
• Tighten latch screws with a Torx T30 bit, then Torque to 9 Nm (80 in-lbs) using a torque wrench (in-lb capable).
• Reconnect the exterior handle linkage and interior handle linkage fully (make sure the plastic retainers are snapped closed).
• Reconnect the latch electrical connector until it clicks.

Step 8: Re-seal the vapor barrier

• Press the vapor barrier back into place by hand.
• If needed, apply butyl tape and press firmly all the way around. A good seal prevents wet carpets.

Step 9: Reinstall the door panel

• Reconnect the door switch electrical connectors by hand.
• Hang the top of the panel on the window ledge, then press the clips in around the edges using your hands.
• Reinstall screws using a Phillips screwdriver #2 and/or Torx T20 bit.
• Reinstall trim covers by pressing them into place.

Step 10: Reconnect the battery and function-check

• Reconnect the negative battery cable using a 10mm socket.
• Before closing the door, test:
  • Power lock/unlock from the switch
  • Key fob lock/unlock (if equipped)
  • Inside handle opens the door
  • Outside handle opens the door

---

✅ After Repair

• Close the door gently the first time and confirm it latches and unlocks normally.
• If the door won’t open from inside or outside, recheck the linkage clips—they may not be fully seated.
• If you hear water sloshing or get wet carpet later, recheck the vapor barrier seal.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $220-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
