🔧 Civic - Front Door Lock Actuator Replacement

The front door lock actuator is the electric motor inside the door latch that locks/unlocks the door. When it fails, the lock may move slowly, not move at all, or only work sometimes. You’ll remove the interior door panel, unplug the actuator, and replace the latch/actuator assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the window fully up to avoid glass damage.
• ⚠️ Keep fingers clear of the window regulator cables and door latch edges.
• ⚠️ Disconnect the battery negative terminal to prevent shorts while unplugging door wiring.
• ⚠️ Don’t tear the vapor barrier (plastic sheet); it prevents water leaks and wind noise.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Small flat trim screwdriver
• Plastic trim removal tool
• Needle-nose pliers
• Painter’s tape
• Magnetic pickup tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door panel trim clips - Qty: 4-10
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and remove the key from the ignition.
• Make sure the window is fully up.
• Use a 10mm socket to disconnect the battery negative terminal, then wait 2 minutes.
• Put painter’s tape on painted door edges to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

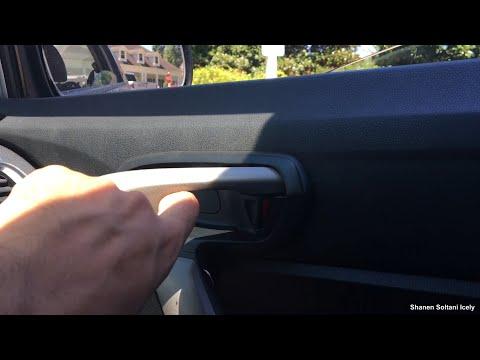

Step 1: Remove the interior door handle trim

• Use a plastic trim removal tool to pop off the small trim cover behind the interior door handle.
• Remove the exposed screw with a Phillips #2 screwdriver.

Step 2: Remove the armrest/door pull screws

• Use a small flat trim screwdriver to lift the armrest screw covers (if equipped).
• Remove the screws underneath using a Phillips #2 screwdriver.

Step 3: Remove the power window/lock switch panel

• Use a plastic trim removal tool to pry up the switch panel from the armrest.
• Unplug the electrical connectors by pressing the tabs and pulling straight out.
• Tip: Wiggle the plug, don’t yank wires.

Step 4: Remove the door panel

• Use a plastic trim removal tool to pop the panel clips around the sides and bottom.
• Lift the door panel straight up to unhook it from the top window ledge.
• If any clips stayed in the door, pull them out with needle-nose pliers and reinstall them into the panel.

Step 5: Peel back the vapor barrier

• Carefully peel the plastic vapor barrier back just enough to reach the latch area.
• If the sticky butyl pulls apart, plan to reseal it using butyl tape.

Step 6: Disconnect the latch electrical connector

• Locate the latch/actuator connector near the rear of the door.
• Press the locking tab and unplug it by hand (use a flashlight for visibility).

Step 7: Disconnect the door handle and lock rods

• Look for metal rods going into the latch (they use small colored plastic “keepers”).
• A “keeper” is a small plastic clip that swings open to release the rod.
• Use needle-nose pliers to swing each keeper open, then lift the rod out of the hole.
• Tip: Take a photo before removing rods.

Step 8: Remove the latch/actuator assembly from the door

• On the door edge (near the latch), remove the three latch screws using a Phillips #2 screwdriver.
• Support the latch inside the door so it doesn’t drop.
• Maneuver the latch/actuator assembly out through the access opening.
• If your replacement uses 10mm socket bolts inside the door, reinstall them and Torque to 9.8 Nm (7 ft-lbs).

Step 9: Install the new latch/actuator assembly

• Guide the new assembly into position through the access opening.
• Start the three door-edge latch screws by hand, then tighten with a Phillips #2 screwdriver (firmly snug).
• Reconnect each rod: insert rod into the hole, then swing the keeper closed until it clicks.
• Plug in the electrical connector until it clicks.

Step 10: Function test before reassembly

• Reconnect the battery negative terminal using a 10mm socket.
• Temporarily plug in the switch panel and test lock/unlock and interior handle operation.
• If anything feels stiff, recheck that each rod is routed correctly and fully clipped.
• Disconnect the battery negative terminal again using a 10mm socket before final reassembly.

Step 11: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into the butyl seal. Add butyl tape anywhere it’s not sealing.
• Hook the door panel over the top window ledge, then press clips in around the edges by hand.
• Reinstall screws using a Phillips #2 screwdriver.
• Reconnect and snap the window/lock switch panel back in using a plastic trim removal tool.

Step 12: Final battery reconnect

• Reconnect the battery negative terminal with a 10mm socket.

---

✅ After Repair

• Test: lock/unlock with key fob (if equipped), door switch, and the key in the door (driver side).
• Confirm: interior handle opens the door smoothly and the lock knob moves freely.
• Check: window operation and that the door panel sits flush all around.
• If the auto-down/up window feature acts odd, initialize the driver window by holding the switch down 2 seconds, then up 2 seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
