🔧 Sierra 1500 - Front Door Lock Actuator Replacement

On your Sierra 1500, the front door lock actuator is typically part of the door latch assembly inside the door. Replacing it means removing the interior door panel, peeling back the water shield, then swapping the latch/actuator unit and reconnecting the rods/cables and electrical plug.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to prevent shorts.
• ⚠️ Support the door panel as you lift it off so you don’t break clips or pull wiring tight.
• ⚠️ The door edges are sharp—wear gloves.
• ⚠️ Keep the window fully up while working inside the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Small flat-blade screwdriver
• Phillips screwdriver
• 7mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension for 1/4" drive
• Torx T30 driver
• Needle-nose pliers
• Pick tool (specialty)
• Painter's tape
• Magnetic pickup tool
• Torque wrench (in-lb capable) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch with integrated lock actuator - Qty: 1
• Door panel retaining clips - Qty: 1 set
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to PARK, and remove the key.
• Lower the window slightly, then raise it fully closed (this helps alignment and access).
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• If your door has a “sail panel” (small trim by the mirror), plan to remove it early for easier panel removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify which front door you’re doing

• Before you start buying parts, tell me: Driver front or Passenger front? (They’re different.)
• If you want, I’ll tailor the steps to that side.

Step 2: Remove the door pull/handle trim and screws

• Use a trim removal tool to gently pry off the trim around the inside door handle and the armrest/door pull area (where the screws are hidden).
• Remove the door panel screws using a 7mm socket (common locations: armrest/pull handle and lower panel).
• If equipped, remove any Phillips screws using a Phillips screwdriver.

Step 3: Remove the window/lock switch panel

• Use a trim removal tool to lift the switch panel out of the armrest.
• Unplug connectors by pressing the lock tab with a small flat-blade screwdriver (gently) and pulling straight out.

Step 4: Pop the door panel clips and lift the panel off

• Work around the bottom and sides with a trim removal tool to pop the panel clips loose.
• Lift the whole panel straight up and off the window channel.
• Unplug any remaining connectors (courtesy light, speaker) using a small flat-blade screwdriver to help release tabs if needed.
• Pull near each clip to avoid cracking the panel.

Step 5: Peel back the water shield (vapor barrier)

• Carefully peel back the plastic water shield using your hands and a trim removal tool.
• If the adhesive is messy or torn, plan to reseal it with butyl tape during reassembly.
• Use painter's tape to hold the plastic out of your way.

Step 6: Disconnect the latch/actuator electrical connector

• Locate the latch wiring connector near the rear edge area of the door.
• Release the lock tab using a pick tool (specialty) (a pick tool is a small hooked tool used to lift tiny tabs) and unplug it.

Step 7: Disconnect the inside handle cable/rod and lock rod (if equipped)

• Find the linkage at the inside door handle area.
• Use needle-nose pliers to rotate the retaining clip open, then lift the rod out, or unhook the cable end (varies by build).
• If there’s a manual lock rod, release it the same way.

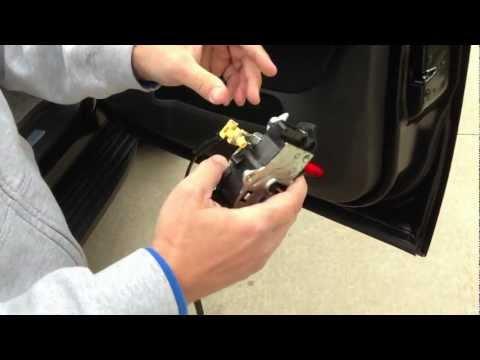

Step 8: Remove the door latch/actuator assembly

• At the door’s rear edge (latch side), remove the latch fasteners using a Torx T30 driver.
• Support the latch from inside the door so it doesn’t drop.
• Maneuver the latch/actuator assembly out through the access opening.
• If a rod fights you, use a pick tool (specialty) to open the clip rather than forcing the rod.

Step 9: Transfer any clips/brackets and install the new latch/actuator

• Move any plastic rod clips or small brackets from the old unit to the new one (use needle-nose pliers as needed).
• Position the new latch/actuator into the door and line it up with the door edge holes.
• Install the Torx screws with a Torx T30 driver, then Torque to 80 in-lb (9 Nm).

Step 10: Reconnect rods/cables and the electrical connector

• Reconnect the inside handle rod/cable and close each retaining clip fully (use needle-nose pliers if needed).
• Plug the latch connector back in until it clicks.
• Use a magnetic pickup tool if you drop a screw inside the door.

Step 11: Function test before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• Test: lock/unlock with the switch and key fob (if equipped), open from inside and outside, and verify the door locks smoothly.
• Disconnect the negative battery cable again with a 10mm socket before putting the panel back on (safer while reconnecting wiring).

Step 12: Reinstall the water shield and door panel

• Reseal the plastic water shield using butyl tape if needed.
• Reconnect all door electrical connectors.
• Hang the panel on the top lip and press it down into place.
• Press the clips in around the perimeter using your hands (or a trim removal tool to line them up).
• Reinstall screws using a 7mm socket.

Step 13: Final battery connection

• Reconnect the negative battery cable using a 10mm socket and tighten snugly.

---

✅ After Repair

• Cycle the locks 10+ times with the switch and remote (if equipped) to confirm consistency.
• Verify the outside handle opens the door normally and the inside handle returns freely.
• Make sure the water shield is sealed all the way around to prevent water leaks.
• If the door panel rattles, a clip is likely misaligned—press around the edges again.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
