🔧 Front Door Lock Actuator - Replacement

The front door lock actuator is built into the latch assembly inside the door. Replacing it means removing the door trim panel, disconnecting the rods and connectors, then swapping the latch/actuator unit and reassembling everything so the lock, handle, and power lock all work correctly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before removing the door panel. The door has a side airbag system.
• Wait at least 90 seconds after battery disconnect before working in the door area.
• Keep all screws and clips organized. Door panel clips can break if pried too hard.
• Support the door trim panel while unplugging switches so you do not stress the wiring.
• Do not close the door with the actuator disconnected unless the latch is secured.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Extension bar
• Phillips screwdriver
• Trim panel tool
• Small flat-blade screwdriver
• Torx T30 screwdriver
• Needle-nose pliers
• Torque wrench
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator assembly - Qty: 1
• Door panel clip set - Qty: 1
• Door vapor barrier adhesive or butyl sealant - Qty: 1
• Any broken trim clips - Qty: as needed

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the window glass fully before starting.
• Disconnect the negative battery cable with a 10mm socket.
• Wait at least 90 seconds before touching any airbag-related parts.
• Keep screws in labeled groups.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a trim panel tool to pry off the trim cover behind the interior door handle and remove the hidden screw with a Phillips screwdriver.
• Remove the screws in the armrest and lower door panel area with a Phillips screwdriver.
• Use a trim panel tool to release the door panel clips around the edge.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect the wiring connectors for the window switch and any courtesy light.

Step 2: Remove the moisture barrier

• Carefully peel back the vapor barrier from the door shell.
• Use a small flat-blade screwdriver only if needed to lift the adhesive edge.
• Do not tear the barrier.

Step 3: Disconnect the lock and handle linkages

• Use needle-nose pliers to release the rod retainers from the latch and handle levers.
• Disconnect any electrical connectors attached to the latch/actuator assembly.
• Note the rod routing before removal so it goes back the same way.

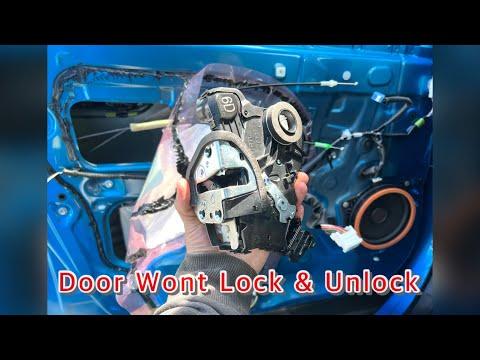

Step 4: Remove the latch and actuator assembly

• Use a Torx T30 screwdriver to remove the latch mounting screws at the door edge.
• Support the assembly with one hand while removing the last screw.
• Remove the latch and actuator assembly from the door cavity.

Step 5: Install the new actuator assembly

• Position the new front door lock actuator assembly inside the door.
• Start all mounting screws by hand with a Torx T30 screwdriver.
• Tighten the latch screws to 7.0 Nm (62 in-lbs).
• Reconnect all electrical connectors until they click.
• Reattach the lock and handle rods using needle-nose pliers.

Step 6: Test the mechanism before reassembly

• Reconnect the battery temporarily and test the power lock, inside handle, and outside handle.
• Use the key fob and door switch to confirm the actuator locks and unlocks smoothly.
• If the latch does not move correctly, recheck rod placement and connector seating.
• Disconnect the battery again before finishing assembly.

Step 7: Reinstall the moisture barrier and door panel

• Press the vapor barrier back into place using the original adhesive or door vapor barrier adhesive or butyl sealant.
• Reconnect the door panel wiring connectors.
• Hook the top edge of the panel onto the window ledge and press the clips into place.
• Reinstall all screws with a Phillips screwdriver.
• Snap the trim cover back on.

---

✅ After Repair

• Reconnect the negative battery cable and tighten it with a 10mm socket.
• Test the lock and unlock functions several times from the switch and key fob.
• Check that the interior and exterior door handles open the door normally.
• Confirm the window switch, mirror switch, and courtesy light still work.
• Listen for rattles around the door panel during a short road test.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
