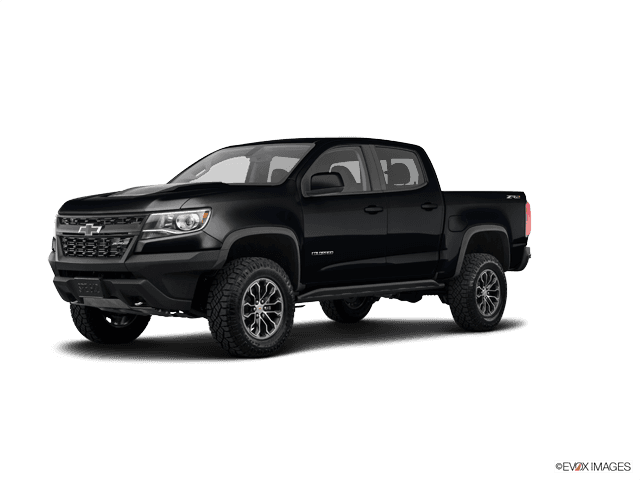

🔧 Colorado - Front Door Lock Actuator Replacement

On your Colorado, the “door lock actuator” is built into the door latch assembly, so you replace the latch/actuator as one unit. This repair requires removing the interior door panel, peeling back the water shield, and swapping the latch inside the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep the window fully UP before you start to avoid glass movement.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorting while unplugging the latch/lock connector.
• ⚠️ Use trim tools (not screwdrivers) to reduce panel/clip damage.
• ⚠️ Don’t tear the water shield (plastic sheet); it prevents water leaks and wind noise.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim clip removal tool
• Plastic pry tool set
• 1/4" ratchet
• 3" extension (1/4")
• 7mm socket
• 10mm socket
• Torx T30 bit
• Small pick tool
• Needle-nose pliers
• Painter’s tape
• Torque wrench (inch-pound, 20–200 in-lb range)
• Torque wrench (ft-lb, 10–80 ft-lb range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly (correct side) - Qty: 1
• Door trim panel retainer clips - Qty: 6-12
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Make sure the window is fully UP.
• Disconnect the negative battery cable using a 10mm socket. Wait 2 minutes before unplugging connectors.
• Apply painter’s tape around the interior door handle/trim edges to help prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which front door you’re repairing

• Is it the front driver door or front passenger door? The steps are the same, but the part must match the side.

Step 2: Remove the interior door trim panel fasteners

• Use a plastic pry tool set to pop off the small trim covers (behind the handle and in the pull cup).
• Remove the exposed screws using a 7mm socket.
• If equipped with a larger main door pull bolt, remove it using a 10mm socket.
• Tip: Put screws in cups by location.

Step 3: Release the door panel clips and lift the panel off

• Start at the bottom edge. Use a trim clip removal tool to pop the panel clips loose one-by-one.
• Lift the door panel straight UP to unhook it from the window ledge.
• Unplug the electrical connectors (window switch, courtesy light) by pressing the lock tabs using a small pick tool if needed.

Step 4: Disconnect the interior door handle cable

• At the inside handle, rotate the cable housing out of its bracket (this is the “housing retainer”).
• Then lift the cable end (the “ball end”) out of the handle lever using needle-nose pliers if it’s tight.

Step 5: Peel back the water shield

• Carefully peel the plastic water shield back far enough to reach the latch area.
• If the sticky sealant won’t re-stick later, plan to use butyl tape during reassembly.

Step 6: Unplug the latch/actuator electrical connector

• Locate the latch connector near the rear edge of the door (inside).
• Press the tab and unplug it. Use a small pick tool gently if the tab is stubborn.

Step 7: Remove the latch/actuator from the door

• On the door’s rear edge (the latch side), remove the latch mounting screws using a Torx T30 bit.
• Torque spec on install: Torque to 9 Nm (80 in-lb)
• Disconnect the linkage rods/cables going to the latch (note their routing). Use a small pick tool to open the plastic retainers, then lift the rod out.
• Work the latch assembly out through the access opening. Take your time—rotate it to clear the door structure.

Step 8: Transfer any brackets (if present) and install the new latch/actuator

• If the old latch has a small bracket or foam piece, move it to the new latch.
• Guide the new latch into place through the access opening.
• Reconnect the linkage rods/cables and close each plastic retainer fully.
• Plug in the electrical connector until it clicks.
• Install the latch screws with a Torx T30 bit, then Torque to 9 Nm (80 in-lb).

Step 9: Reinstall the water shield

• Press the water shield back into the butyl seal all the way around.
• If needed, apply butyl tape to reseal any gaps or torn areas.

Step 10: Reinstall the interior door panel

• Reconnect the interior handle cable (ball end first, then snap the housing into the bracket).
• Reconnect all electrical connectors.
• Hang the panel on the top lip and push it DOWN to seat it.
• Press all trim clips back in around the perimeter.
• Reinstall screws using a 7mm socket (and 10mm socket if equipped).
• Torque spec (door pull fastener, if 10mm bolt): Torque to 9 Nm (80 in-lb)

Step 11: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Torque spec: Torque to 15 Nm (11 ft-lb)

---

✅ After Repair

• Test the lock with the key fob and the interior switch (lock/unlock several times).
• Test interior handle and exterior handle operation (door should open smoothly).
• Confirm the door ajar indicator works correctly on the dash.
• Check the window and mirror switches on that door.
• Listen for rattles; if present, a linkage retainer may not be fully clipped.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $230-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
