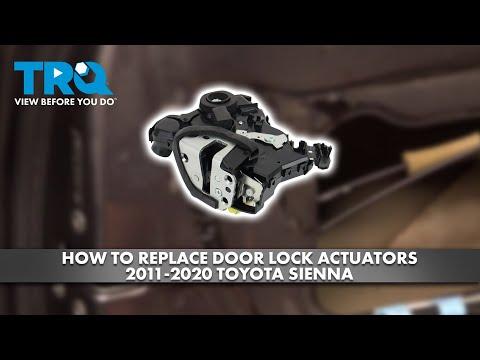

🔧 Sienna - Front Door Lock Actuator Replacement

On your Sienna, the “door lock actuator” is typically built into the door latch assembly. Replacing it means removing the interior door panel, disconnecting the latch rods/cables and electrical connector, then swapping the latch/actuator unit so your locks work reliably again.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery negative cable before unplugging door wiring to reduce the risk of an electrical short.
• ⚠️ Keep the window fully up while working inside the door.
• ⚠️ Don’t tear the moisture barrier (plastic sheet); it prevents water leaks and wind noise.
• 🧤 Wear gloves—door shell openings can be sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Trim removal tool set
• Panel clip pliers
• Pick tool
• Phillips screwdriver #2
• Flathead screwdriver (small)
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torx T30 bit
• Torque wrench (inch-pound)
• Flashlight
• Painter’s tape
• Magnetic parts tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator / latch assembly - Qty: 1
• Door trim panel clips - Qty: 1 set
• Moisture barrier butyl seal tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition off.
• Lower the window an inch, then raise it fully (helps the glass seat properly).
• Disconnect the battery using a 10mm socket, then wait 2 minutes before unplugging door connectors.
• Put painter’s tape along the painted door edge to protect the finish while you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the window/lock switch panel

• Use a trim removal tool set to carefully pry up the switch panel.
• Unplug the electrical connectors by pressing the tab and pulling straight out. Don’t pull on the wires.

Step 2: Remove the interior door handle trim and screws

• Use a pick tool to pop off any small screw covers near the handle/armrest.
• Remove the visible screws using a Phillips screwdriver #2 and/or 10mm socket (varies by location on the panel).
• Place screws in a magnetic parts tray.

Step 3: Release the door panel clips and lift the panel off

• Starting at the bottom edge, use a trim removal tool set to pop the panel clips out of the door.
• Use panel clip pliers on stubborn clips to reduce breakage.
• Lift the door panel upward to unhook it from the top edge by the window.

Step 4: Disconnect cables/connectors from the door panel

• Unplug any remaining connectors (courtesy light, etc.). Use a flathead screwdriver (small) only if needed to gently help the tab.
• Disconnect the inside handle cable/rod connection:
  • A cable has a ball-end that sits in a lever; rotate the cable housing out of its bracket, then lift the ball-end out.
  • If your door uses a rod and plastic clip, flip the clip open with a pick tool, then lift the rod out.
• Set the door panel somewhere safe (face-up on a blanket).

Step 5: Peel back the moisture barrier

• Use your hands to slowly peel the plastic moisture barrier back.
• If the butyl adhesive won’t release cleanly, use a trim removal tool set to help separate it.
• Try not to rip the plastic.

Step 6: Disconnect the actuator/latch electrical connector

• Locate the latch/actuator connector near the rear of the door (toward the door latch).
• Press the tab and disconnect it. Use a flashlight to confirm the lock tab is fully depressed.

Step 7: Detach the latch rods/cables from the latch

• Identify the rods/cables going to:
  • Outside door handle
  • Inside door handle
  • Lock knob (if equipped on that door)
• Use a pick tool to open each plastic retaining clip, then lift the rod out.
• If a cable is used, rotate its housing out of the bracket, then remove the cable end from the lever.

Step 8: Remove the door latch/actuator assembly

• On the trailing edge of the door (the edge that latches to the body), remove the 3 latch screws using a Torx T30 bit with a 1/4" drive ratchet and 6" extension.
• Support the latch as you remove the last screw so it doesn’t drop inside the door.
• Maneuver the latch/actuator assembly out through the largest access opening.

Step 9: Install the new latch/actuator assembly

• Guide the replacement latch/actuator into position inside the door.
• Start all latch screws by hand, then tighten with a Torx T30 bit.
• Torque to 7.5 N·m (66 in-lbs) using a torque wrench (inch-pound).
• Reconnect all rods/cables and close each retaining clip fully. A half-closed clip will pop off later.
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall the moisture barrier and door panel

• Press the moisture barrier back into the butyl adhesive. Add moisture barrier butyl seal tape if it no longer sticks well.
• Reconnect all door-panel connectors and the inner handle cable/rod.
• Hang the door panel on the top edge first, then press the clips in around the perimeter with your hands.
• Reinstall screws using a Phillips screwdriver #2 and/or 10mm socket.
• Torque to 5.0 N·m (44 in-lbs) for small interior trim fasteners using a torque wrench (inch-pound).
• Snap the switch panel back in and reconnect it.

Step 11: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Test power lock/unlock from the key fob, the inside switch, and the outside handle.
• Open/close the door several times and confirm it latches smoothly and doesn’t “bounce” back.
• Confirm the inside handle opens the door normally and doesn’t feel stuck.
• If the window switch was unplugged, confirm auto up/down works as expected.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $230-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
