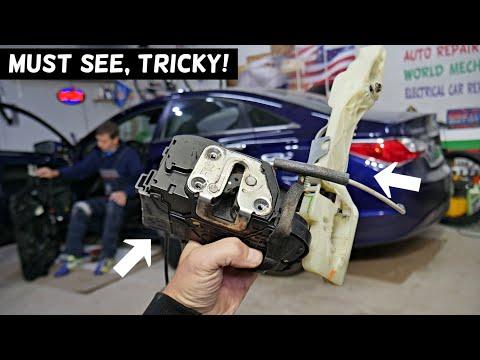

🔧 Sonata - Front Door Lock Actuator Replacement

On your Sonata, the “door lock actuator” is typically built into the door latch assembly. Replacement involves removing the interior door panel, unplugging the latch wiring, disconnecting the handle/lock linkages, and swapping the latch/actuator assembly.

Assumption: Exact fastener torque specs vary by latch/door build; where not critical, tighten snug (do not overtighten).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative cable to reduce airbag/short risk (some doors have side-impact airbags and sensitive wiring).
• ⚠️ Keep the window fully UP before starting so the glass is out of the way.
• ⚠️ Do not pull on wiring—always release electrical connectors by their tabs.
• ⚠️ Work slowly with trim to avoid breaking clips and cracking the panel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Phillips #2 screwdriver
• Flat trim removal tool (plastic)
• Pick tool
• Needle-nose pliers
• Torx T30 driver
• Magnetic pickup tool
• Painters tape
• Work gloves
• Safety glasses
• Torque wrench (in-lb or low Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel retaining clips - Qty: 1 set
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, ignition OFF, and keep the window fully UP.
• Open the front door you’re working on and leave it open for access.
• Disconnect the battery negative cable using a 10mm socket. Wait 3 minutes before unplugging any door wiring.
• Take photos as you go.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim screws

• Use a flat trim removal tool (plastic) to pop off the small trim covers behind the interior door handle and/or armrest (locations vary).
• Remove the exposed screws using a Phillips #2 screwdriver (some cars use 10mm socket bolts in the armrest).
• If equipped with a screw at the bottom/edge of the panel, remove it with a Phillips #2 screwdriver.

Step 2: Release the door panel clips and lift the panel off

• Slide the flat trim removal tool (plastic) between the panel and the door and gently pry around the edges to pop the clips.
• Work bottom to top.
• Once clips are released, lift the whole panel straight UP to unhook it from the window channel.

Step 3: Disconnect switches and the inside handle connection

• Unplug the power window/lock switch connector(s) by pressing the tab and pulling—use a pick tool if the tab is stubborn.
• If the inside door handle uses a cable: rotate the cable housing out of its bracket and lift the cable end out of the handle using needle-nose pliers.
• Set the door panel somewhere safe so it won’t get scratched.

Step 4: Remove the vapor barrier (water shield)

• Carefully peel back the plastic vapor barrier. Use the flat trim removal tool (plastic) to separate sticky butyl without tearing the plastic.
• Use painters tape to hold the barrier out of the way.

Step 5: Unplug the latch/actuator wiring and free the linkages

• Locate the latch wiring connector near the rear edge of the door (near the latch). Press the tab and unplug it.
• Disconnect the lock/unlock rod(s) or cable(s) from the latch:
  • Use a pick tool to flip the small plastic retaining clip open.
  • Lift the rod out using needle-nose pliers.
• Don’t bend the rods.

Step 6: Remove the latch/actuator assembly from the door

• On the door’s rear edge (the side that meets the B-pillar), remove the latch fasteners using a Torx T30 driver.
• Support the latch inside the door as the last fastener comes out so it doesn’t drop. A magnetic pickup tool helps if a fastener slips.
• Work the latch assembly out through the access opening in the door.

Step 7: Install the new latch/actuator assembly

• Position the new latch/actuator assembly into the door the same way the old one came out.
• Start all latch fasteners by hand, then tighten with a Torx T30 driver.
• Torque: Use a torque wrench (in-lb or low Nm range) to tighten to the Hyundai specification for the latch fasteners (do not overtighten into the door).
• Reconnect all rod/cable linkages and lock the plastic retaining clips back into place using a pick tool.
• Plug in the latch electrical connector until it clicks.

Step 8: Reinstall the vapor barrier

• Press the vapor barrier back into place.
• If the butyl no longer sticks well, apply butyl tape (vapor barrier adhesive) to reseal the edges.

Step 9: Reinstall the door panel

• Reconnect the switch connector(s) and inside handle cable using needle-nose pliers as needed.
• Hang the top of the panel on the window channel and slide it DOWN to seat it.
• Press around the edges to snap the clips back in.
• Reinstall the screws using a Phillips #2 screwdriver and/or 10mm socket.

Step 10: Reconnect the battery

• Reconnect the battery negative cable using a 10mm socket.
• Torque: Tighten snug so the terminal does not rotate by hand.

---

✅ After Repair

• Test with the door OPEN: lock/unlock using the key fob and the inside switch.
• Test with the door CLOSED: confirm it locks/unlocks and opens from inside and outside.
• Confirm the door ajar light works normally and the window switch works.
• If the latch feels “sticky,” re-check that rods/cables are fully clipped in and not rubbing.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹15,000 (parts + labor)

DIY Cost: ₹3,000-₹10,000 (parts only)

You Save: ₹3,000-₹5,000+ by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,500/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
