🔧 Transit Connect - Front Door Lock Actuator Replacement

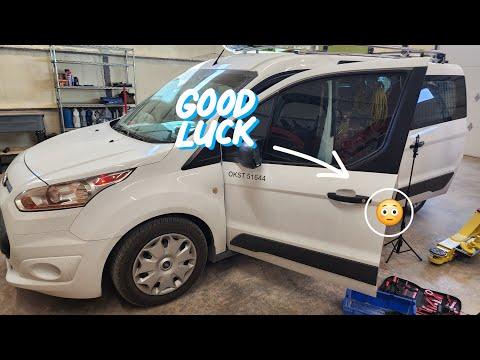

On your Transit Connect, the front “lock actuator” is typically built into the door latch assembly (the mechanism at the rear edge of the door). Replacing it means removing the inner door panel, unplugging the latch wiring, and swapping the latch/actuator unit so the door locks/unlocks reliably again.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ If your door has a side airbag, disconnect the battery negative terminal and wait 10 minutes before working inside the door.
• ⚠️ Support the door glass; don’t pry against the window or weatherstrip.
• ⚠️ Do not tear the moisture barrier; it prevents water leaks and electrical issues.
• ⚠️ Keep the key/fob away from the vehicle so the locks don’t cycle unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Small flat-blade screwdriver
• Pick tool
• Needle-nose pliers
• Masking tape
• Torque wrench (in-lb or Nm)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel trim clips - Qty: 6–12
• Moisture barrier butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Lower the window about halfway (gives you more hand room inside the door).
• If equipped with a side airbag in the door: use a 10mm socket to disconnect the battery negative terminal and wait 10 minutes.
• Trim tool = plastic pry tool to avoid scratches.
• Butyl tape = sticky rope seal for the moisture barrier.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door handle/trim pieces

• Use a plastic trim removal tool to carefully pop off the small trim covers in the pull handle/door handle area (covers usually hide screws).
• Use a small flat-blade screwdriver if needed, but pry gently so you don’t gouge the panel.

Step 2: Remove the door panel screws

• Use a 7mm socket (common) or 8mm socket (varies by panel) with a 1/4" ratchet to remove the screws in the pull handle and along the panel.
• Use a Torx T20 screwdriver or Torx T25 screwdriver for any Torx screws you find near the handle/armrest area.
• Put screws in a cup so nothing gets lost.

Step 3: Release the door panel clips and lift the panel off

• Starting at the bottom corner, use a plastic trim removal tool to pop the door panel clips free around the edges.
• Once clips are loose, lift the panel straight up to unhook it from the window ledge.
• Support the panel so it doesn’t hang by wiring.

Step 4: Disconnect electrical connectors

• Use a pick tool to help release connector locks (small tabs) without breaking them.
• Unplug the window switch connector, door lock switch connector, and speaker connector (if attached to the panel).

Step 5: Peel back the moisture barrier (vapor barrier)

• Use a plastic trim removal tool to gently separate the barrier from the door.
• Work slowly so the black sticky seal (butyl) stays on the door as much as possible.
• Use masking tape to hold the barrier out of your way.

Step 6: Disconnect the inside handle cable/rod from the latch

• Locate the inside handle cable/rod going to the latch at the rear of the door.
• Use needle-nose pliers to rotate the plastic retainer clip open, then lift the rod/cable end out.
• Take a photo first for reassembly.

Step 7: Unplug the latch/actuator electrical connector

• At the latch area, use a pick tool to release the connector tab.
• Pull on the connector body (not the wires) to unplug it.

Step 8: Remove the latch/actuator from the door

• Open the door and locate the latch screws on the trailing edge of the door (near the striker).
• Use a Torx T30 screwdriver to remove the latch mounting screws.
• Carefully maneuver the latch assembly out through the access opening in the door.

Step 9: Transfer any clips/cables (if required) and install the new latch/actuator

• Compare old vs new latch to confirm same cable/lever positions.
• Move any brackets or cable ends over using needle-nose pliers if your replacement doesn’t include them.
• Set the new latch into position and start the screws by hand.
• Tighten the latch screws using a Torx T30 screwdriver and finish with a torque wrench: Torque to 8 Nm (71 in-lbs).

Step 10: Reconnect the linkage and wiring

• Reconnect the inside handle rod/cable and snap the retainer clip fully closed using needle-nose pliers.
• Plug in the latch/actuator connector until it clicks.

Step 11: Re-seal the moisture barrier

• Press the barrier back into the original position by hand.
• Add moisture barrier butyl tape anywhere the seal is missing or no longer sticky.
• A good seal prevents wet carpets.

Step 12: Reinstall the door panel

• Reconnect all panel electrical connectors by hand.
• Hang the panel on the top lip at the window ledge, then push the clips in around the perimeter.
• Reinstall screws using a 7mm socket or 8mm socket, plus any Torx screws with a Torx T20 screwdriver or Torx T25 screwdriver.
• Snap the trim covers back on using a plastic trim removal tool.

Step 13: Reconnect the battery (if disconnected)

• Reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Test lock/unlock with the key fob and the interior switch.
• Test the inside handle and outside handle: the door should open smoothly and not “double-lock” incorrectly.
• Confirm the door-ajar light behaves correctly on the dash.
• Verify the window and mirror controls work (if equipped on that door).
• If you hear wind noise or see water leaks later, re-check the moisture barrier seal.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
