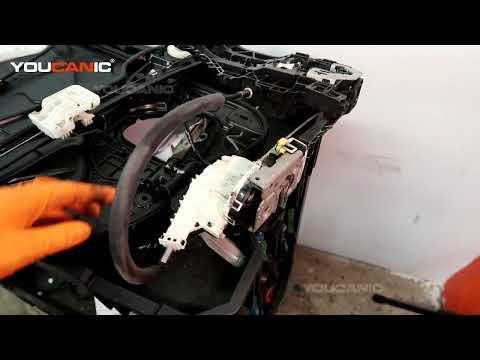

🔧 Journey - Front Door Lock Actuator Replacement

On your Journey, the “door lock actuator” is typically built into the door latch assembly, so you replace the latch/actuator unit as one piece. This restores power locking/unlocking when the door won’t lock, won’t unlock, or makes clicking/grinding noises.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per front door)

Assumption: your actuator is integrated with the latch assembly (most common on Journey).

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable to prevent accidental electrical shorts.
• 🧤 Wear gloves—inner door metal edges are sharp.
• 🪟 Keep the window fully up; support the glass if you disturb any window fasteners.
• ⚠️ Do not tear the water shield (vapor barrier); it keeps water out of the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Plastic pry tool
• Ratchet
• 6-inch extension
• 7mm socket
• 8mm socket
• 10mm socket
• Torx T30 bit
• Phillips screwdriver #2
• Pick tool
• Needle-nose pliers
• Butyl tape
• Painters tape
• Torque wrench
• Magnetic parts tray
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch with integrated lock actuator - Qty: 1
• Door panel trim clips - Qty: 1 set
• Butyl sealant (door water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition OFF.
• Lower the window slightly, then raise it fully so it’s seated at the top.
• Use 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Put painters tape along the painted door edge to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the sail panel and door switch trim

• Use a plastic pry tool to gently pry off the small triangular trim at the top front of the door (the “sail panel”).
• Use a trim removal tool set to pop up the window/lock switch bezel on the armrest.
• Disconnect the electrical connector(s) using a pick tool to lift the lock tab, then pull the connector out.

Step 2: Remove screws holding the door panel

• Use a Phillips screwdriver #2 to remove any visible screws in/near the pull handle area (some trims use Phillips here).
• Use a 7mm socket with a ratchet and 6-inch extension to remove the remaining door panel screws (commonly in the armrest/pull cup and lower edge).
• Place screws in a magnetic parts tray.

Step 3: Pop the door panel clips and lift the panel off

• Start at the bottom corner. Use a trim removal tool set to pop the panel clips loose.
• Once clips are free, lift the door panel upward to unhook it from the window ledge.
• Disconnect any remaining electrical connectors using a pick tool as needed.

Step 4: Remove the water shield (vapor barrier)

• The water shield (also called a vapor barrier) is the plastic sheet glued to the door to keep water away from the interior.
• Use your hands and a plastic pry tool to peel it back slowly.
• If the adhesive stretches or won’t stick later, plan to refresh it with butyl tape.
• Peel slowly to avoid ripping the plastic.

Step 5: Disconnect the latch/actuator electrical connector

• Locate the latch/actuator connector near the rear edge of the door.
• Use a flashlight to see the lock tab.
• Release the tab with a pick tool and pull the connector free.

Step 6: Disconnect the inside handle cable/rod

• At the interior handle area, find the cable (or rod) going to the latch.
• If it’s a cable: use needle-nose pliers to rotate the retaining clip open, then lift the cable end out of the lever.
• If it’s a rod: use a pick tool to flip the colored retainer, then lift the rod out.

Step 7: Remove the latch/actuator assembly from the door

• Open the door and locate the latch fasteners on the door edge.
• Use a Torx T30 bit with a ratchet to remove the latch screws.
• Support the latch with your free hand so it doesn’t drop inside the door.
• Torque to factory specification during reassembly.

Step 8: Transfer any brackets and install the new latch/actuator

• Compare old vs new unit to confirm connector and lever positions match.
• If a bracket/clip transfers over, move it using needle-nose pliers.
• Feed the new latch/actuator into position and start the screws by hand.
• Tighten with a Torx T30 bit and ratchet, then torque to factory specification using a torque wrench.

Step 9: Reconnect cable/rod and electrical connector

• Reconnect the inside handle cable/rod and fully lock the retainer using a pick tool.
• Reconnect the latch/actuator electrical connector until it clicks into place.

Step 10: Reinstall the water shield and door panel

• Press the water shield back on. If needed, add butyl tape to reseal the perimeter.
• Reconnect door panel electrical connectors by hand, using a pick tool only to guide lock tabs.
• Hang the door panel on the top lip, then press clips in around the edges with your hands.
• Reinstall screws with a 7mm socket (and Phillips screwdriver #2 if applicable).
• Snap the switch bezel and sail panel back in using a plastic pry tool for alignment.

Step 11: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• With the door open, test: inside handle open, outside handle open, lock/unlock with the switch, and lock/unlock with the key fob.
• Close the door and confirm it latches smoothly and locks/unlocks every time.
• Listen for abnormal buzzing/clicking from the latch area.
• If the door panel rattles, recheck that all trim clips are fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
