🔧 Escape - Front Door Lock Actuator Replacement

On your Escape, the “door lock actuator” is typically built into the front door latch assembly. Replacing it means removing the interior door panel, peeling back the water shield, disconnecting rods/cables, and swapping the latch/actuator unit inside the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery and wait at least 2 minutes before working in the door (side airbag wiring runs through the door).
• ⚠️ Keep the window fully up while working to prevent glass damage.
• ⚠️ Do not pull on wiring; release connector locks first to avoid broken pins.
• ⚠️ Use trim tools to avoid cracking the door panel and breaking clips.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• 7mm socket
• 8mm socket
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 bit
• Trim/panel removal tool set
• Small flat screwdriver
• Pick tool
• Needle-nose pliers
• Flashlight
• Painters tape
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel trim clips - Qty: 6-12
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the key fob away from the vehicle.
• Lower the window slightly, then raise it fully (you want it fully up during the job).
• Use a 10mm socket to disconnect the negative battery terminal, then wait 2 minutes.
• Put painters tape along the door edge/trim to reduce scratches while you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which front door you’re doing

• If you haven’t already, confirm whether this is the driver front or passenger front door—steps are similar, but linkage routing can differ.
• Tell me which side if you want pictures/clip locations.

Step 2: Remove the interior door handle trim and switch panel

• Use a trim/panel removal tool set to carefully pry up the window/lock switch panel.
• Disconnect the electrical connectors using a pick tool or small flat screwdriver to lift the locking tabs (a “locking tab” is the little plastic catch that prevents the plug from backing out).
• Use a small flat screwdriver to pop off the interior handle trim cover (near the door pull/handle area), if equipped.

Step 3: Remove door panel screws

• Remove the screws in the armrest/pull pocket using a 7mm socket (some panels may use 8mm socket depending on screw head).
• Remove any screw behind the interior handle trim using a Torx T20 screwdriver or Torx T25 screwdriver (varies by panel).

Step 4: Release the door panel clips and lift the panel off

• Start at the bottom edge and use a trim/panel removal tool set to pop the clips free around the perimeter.
• Lift the whole door panel straight upward to unhook it from the top window channel.
• Disconnect any remaining connectors (courtesy light, speaker, etc.) using a pick tool.

Step 5: Disconnect the interior handle cable

• At the back of the door panel, locate the interior handle cable.
• Use a small flat screwdriver to open the cable retainer, then lift the cable end out of the handle.
• Take a quick photo first for reassembly.

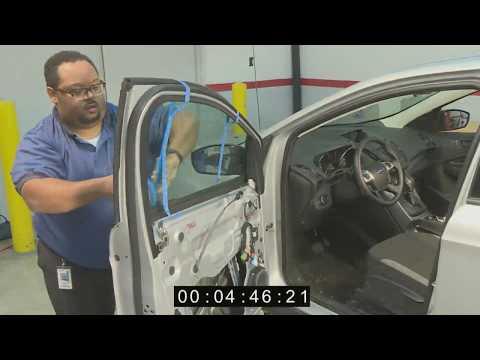

Step 6: Peel back the water shield (vapor barrier)

• Use a trim/panel removal tool set to carefully peel the water shield back (it’s glued on with sticky butyl).
• Do not rip it—this shield prevents water leaks and wind noise.

Step 7: Disconnect the latch/actuator electrical connector

• Reach inside the door and find the latch connector near the rear edge of the door.
• Release the connector lock using a pick tool, then unplug it.

Step 8: Remove the exterior handle rod/cable from the latch

• Locate the exterior handle linkage at the latch (rear inside edge of the door).
• Use a needle-nose pliers and/or pick tool to open the plastic retaining clip, then lift the rod out.
• If equipped with a cable instead of a rod, release the cable end and unclip the cable housing from the bracket.

Step 9: Unbolt and remove the latch/actuator assembly

• Open the door and locate the latch bolts on the door’s trailing edge.
• Use a Torx T30 bit with a 1/4" drive ratchet and 6" socket extension to remove the latch mounting bolts.
• Carefully maneuver the latch assembly out through the access opening in the door.

Step 10: Install the new latch/actuator assembly

• Place the new latch into position the same way the old one came out.
• Start the latch bolts by hand, then tighten with a Torx T30 bit.
• Torque to 8 Nm (71 in-lb) for the latch mounting bolts.
• Reconnect the exterior handle rod/cable and snap the retaining clip fully closed.
• Plug in the latch electrical connector until it clicks.

Step 11: Re-seal the water shield

• Press the water shield back into the butyl adhesive.
• If the adhesive no longer sticks, apply butyl tape and press firmly all the way around.

Step 12: Reinstall the interior door panel

• Reconnect the interior handle cable (snap the cable housing into its retainer, then hook the cable end in place).
• Reconnect all electrical connectors (switch panel, speaker, courtesy light).
• Hang the panel on the top window channel first, then press the panel in to engage the clips.
• Reinstall screws using a 7mm socket / 8mm socket and Torx T20 screwdriver / Torx T25 screwdriver as removed.

Step 13: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Test lock/unlock with the key fob and the interior lock switch (door open, then door closed).
• Test the exterior handle and interior handle to confirm the door opens smoothly.
• Confirm the door fully latches and doesn’t bounce back (misrouted linkage can cause this).
• Check that the window/locks work and no warning lights appear.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $220-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
