🔧 Camry - Front Door Lock Actuator Replacement

The front door lock actuator is the electric motor/gears that lock and unlock your door. On your Camry, it’s typically built into the door latch assembly, so the fix is usually replacing the latch/actuator unit inside the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Your Camry’s front doors may have a side airbag; disconnect the 12V battery before working inside the door to reduce SRS (airbag) risk.
• ⚠️ Keep the key/fob at least 10+ feet away so the car can’t wake modules while you’re unplugging connectors.
• ⚠️ Support the door glass and keep fingers clear of the window regulator (the scissor/cable mechanism that moves the window).
• ⚠️ If the vapor barrier (plastic sheet) is torn or not resealed, you can get water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Phillips screwdriver #2
• Torx T30 bit
• Trim removal tool set (plastic)
• Panel clip pliers
• Pick tool (small)
• Needle-nose pliers
• Magnetic pickup tool
• Masking tape
• Flashlight
• Torque wrench (in-lb)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: 1 set (as needed)
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and open the window on the door you’re working on (helps access and prevents lockout).
• Disconnect the 12V battery: in the trunk, access the 12V battery area, use a 10mm socket to remove the negative terminal, and wait at least 90 seconds.
• Have a small container ready for screws/clips so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim panel

• Use a trim removal tool set (plastic) to gently pry up the switch panel (window/lock switch area), then unplug the connectors by pressing the tabs. Plastic tools reduce scratches.
• Use a Phillips screwdriver #2 to remove screws hidden behind small covers (often near the interior handle and/or armrest). Use a pick tool (small) to pop the covers.
• Use panel clip pliers and a trim removal tool set (plastic) to release the door panel clips around the edges.
• Lift the panel upward to unhook it from the top window channel, then disconnect any remaining connectors (courtesy light, etc.).

Step 2: Remove and protect the vapor barrier

• Use mechanic gloves and slowly peel back the plastic vapor barrier.
• If the butyl adhesive is stubborn, use a trim removal tool set (plastic) to separate it without tearing the plastic.
• Use masking tape to hold the barrier out of your way.

Step 3: Disconnect the inside handle cable/rod (access as needed)

• Locate the inside door handle cable/rod routing to the latch area.
• Use a pick tool (small) to flip open the retaining clip, then use needle-nose pliers to lift the rod/cable end out of its lever.
• Take a photo before removal.

Step 4: Unplug the door lock actuator/latch electrical connector

• Use a flashlight to find the latch connector near the rear edge of the door.
• Press the tab and unplug it. If it’s tight, use a pick tool (small) carefully to help the tab release (don’t break it).

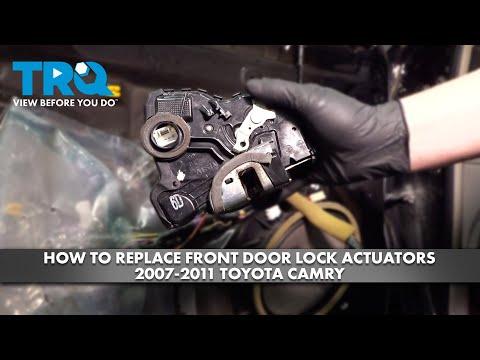

Step 5: Remove the door latch/actuator from the door

• On the door’s rear edge, remove the latch fasteners using a Torx T30 bit with a 1/4" drive ratchet and 6" socket extension.
• Torque on reassembly: Torque to 7.5 Nm (66 in-lbs)
• Work the latch assembly out through the access opening. Use a magnetic pickup tool if a screw drops inside the door.

Step 6: Transfer/link rods and install the new latch/actuator

• Move any rods/cables from the old latch to the new one, matching the same clip positions. Use needle-nose pliers if needed.
• Slide the new latch/actuator into position and start the fasteners by hand to avoid cross-threading.
• Tighten using the Torx T30 bit, 1/4" drive ratchet, and finish with a torque wrench (in-lb): Torque to 7.5 Nm (66 in-lbs).
• Plug the latch connector back in until it clicks.

Step 7: Refit the vapor barrier

• Press the vapor barrier back into the butyl adhesive. If it won’t stick well, apply butyl tape (vapor barrier adhesive) to reseal the edges.
• Make sure all wiring grommets and openings are sealed. This prevents water leaks.

Step 8: Reinstall the door trim panel

• Reconnect all electrical connectors (switch panel, lights) before fully seating the panel.
• Hook the top of the panel onto the window channel and press the panel in place.
• Press the clips in around the edges and reinstall screws using a Phillips screwdriver #2.

Step 9: Reconnect the 12V battery

• Reconnect the negative terminal using a 10mm socket.
• Make sure the terminal is snug and does not rotate by hand.

---

✅ After Repair

• Test power locks: lock/unlock with the inside switch and the key/fob.
• Test the inside and outside door handles to confirm the door opens smoothly and latches securely.
• Verify the window and mirror controls work (if equipped).
• Confirm no warning lights are on (especially the airbag/SRS light after startup).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
