🔧 Ranger - Front Door Lock Actuator Replacement

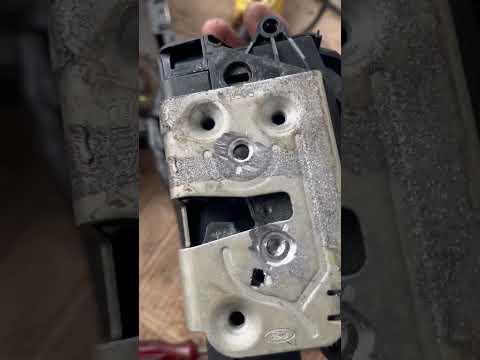

On your Ranger, the “door lock actuator” is typically built into the door latch assembly inside the door (the mechanism the door clicks into when it shuts). Replacing it usually means removing the interior door panel, peeling back the water shield, disconnecting rods/connectors, and swapping the latch/actuator assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Quick check before I give the exact step-by-step (2 questions):

• Which front door are we doing on your Ranger: driver or passenger?
• Is your symptom won’t lock/unlock with the switch/fob, or is the door also hard to open/close (latch sticking)?

---

⚠️ Safety & Precautions

• Turn ignition OFF and keep the key/fob away from the truck while working.
• Disconnect the negative battery cable before unplugging door wiring to reduce the risk of accidental airbag/SRS faults and shorting wires.
• Use a plastic trim tool to avoid cracking the door panel and to prevent paint damage.
• Watch for sharp edges inside the door shell; wear gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Small flat-blade screwdriver
• Phillips screwdriver #2
• Torx T20 screwdriver
• Torx T27 screwdriver
• Torx T30 screwdriver
• 1/4" drive ratchet
• 8mm socket
• 10mm socket
• Extension 6" (1/4" drive)
• Pick tool
• Needle-nose pliers
• Magnetic pickup tool
• Torque wrench (in-lb range) (specialty)
• Torque wrench (ft-lb range) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel retainer clips - Qty: 6-12
• Butyl seal tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, window fully up, ignition OFF.
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• Have a clean table for screws/clips and label what came from where.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the correct part before disassembly

• Open the door and locate the latch area at the rear edge of the door.
• If you can, take a photo of the latch/connector area through the gap using your phone for reference.
• Helps avoid ordering the wrong side.

Step 2: Remove the interior door handle trim

• Use a trim removal tool set (plastic) to carefully pop off the small trim cover near the interior door handle (if equipped).
• Use a Torx T20 screwdriver or Phillips screwdriver #2 (varies by build) to remove the screw(s) behind the cover.

Step 3: Remove the armrest/pull-handle fasteners

• Use a trim removal tool set (plastic) to lift the armrest switch bezel (power window/lock switch panel).
• Unplug the switch connectors by depressing the tab using a pick tool (a pick is a small pointed hand tool that helps release clips).
• Remove the armrest screws using a Torx T27 screwdriver or 8mm socket (varies by build).

Step 4: Release the door panel clips and remove the panel

• Starting at the bottom edge, slide in the trim removal tool set (plastic) and pop the panel retainers free one by one.
• Lift the door panel straight upward to unhook it from the window ledge.
• Unplug any remaining connectors using the pick tool.

Step 5: Peel back the water shield

• Carefully peel back the water shield (plastic sheet) enough to access the latch area.
• If the adhesive won’t stick afterward, you’ll reseal it with butyl seal tape (water shield adhesive).

Step 6: Disconnect the interior handle cable/rod from the latch

• At the latch, use needle-nose pliers to rotate the retaining clip open (do not break it).
• Remove the cable/rod end from the latch lever.
• Take a photo before unhooking anything.

Step 7: Disconnect the actuator electrical connector

• Use a pick tool to press the connector lock tab, then pull the connector straight off.

Step 8: Remove the latch/actuator assembly

• At the rear edge of the door, remove the latch retaining screws using a Torx T30 screwdriver.
• Support the latch as you remove the last screw so it doesn’t drop inside the door.
• Maneuver the latch/actuator assembly out through the access opening.

Step 9: Install the new latch/actuator assembly

• Place the new assembly into position through the access opening.
• Start the latch screws by hand to avoid cross-threading, then tighten using a Torx T30 screwdriver.
• Reconnect the electrical connector until it clicks.
• Reconnect the interior handle cable/rod and snap the retaining clip fully closed.

Step 10: Reinstall the water shield and door panel

• Press the water shield back into place; use butyl seal tape (water shield adhesive) where needed.
• Hang the door panel on the top window ledge and press down to seat it.
• Press the panel clips in by hand around the perimeter.
• Reinstall screws using the Torx T27 screwdriver, Torx T20 screwdriver, Phillips screwdriver #2, or 8mm socket as removed.
• Reconnect the switch panel connectors and snap the bezel back in.

Step 11: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Test lock/unlock using the door switch and the key fob with the door open and closed.
• Confirm the interior and exterior handles open the door normally.
• Confirm the window and mirror controls work (if equipped).
• If you hear wind noise or get water leaks later, recheck the water shield seal.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $270-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
