🔧 2500 - Front Door Lock Actuator Replacement

On your 2500, the front door lock “actuator” is typically serviced as part of the door latch assembly inside the door. The job involves removing the interior door panel, peeling back the water shield, disconnecting the latch wiring/rods, and swapping the latch/actuator unit.

Before I tailor the exact steps: Which front door are we doing (driver or passenger)? And does your 2500 have a manual window crank, or power windows?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working in the door to prevent accidental airbag/SRS or electrical short issues.
• ⚠️ Support the door glass and keep hands clear of the window regulator (the moving scissor/cable mechanism).
• ⚠️ Do not tear the water shield (the foam/plastic sheet). It prevents water leaks and wind noise.
• ⚠️ Use trim tools to avoid cracking the door panel clips.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Trim panel removal tool
• Pick tool
• Phillips screwdriver #2
• Flat-blade screwdriver (small)
• Torx T20 driver
• Torx T25 driver
• Torx T30 driver
• 1/4" ratchet
• 1/4" extension (6")
• 10mm socket
• Needle-nose pliers
• Painters tape
• Butyl tape (automotive)
• Flashlight
• Torque wrench (in-lb)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel push clips - Qty: 2-10 (extras recommended)
• Water shield butyl adhesive (automotive) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, key out of the truck, and keep the window fully up.
• 🔋 Disconnect the negative battery terminal using a 10mm socket. Torque to 5 Nm (44 in-lbs) when reinstalling.
• 🧼 Put painters tape along the door edge and around trim areas to prevent scratches.
• 💡 Have a clean spot ready for screws/clips so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim panel

• Use a trim panel removal tool to gently pry off the small trim pieces (like the sail/trim near the mirror and any covers hiding screws).
• Remove visible door panel screws using the correct driver: typically Torx T20 driver / Torx T25 driver and/or Phillips screwdriver #2.
• Use the trim panel removal tool to pop the door panel clips loose around the perimeter (work from bottom to sides).
• Lift the panel straight up to unhook it from the top window channel.
• Disconnect electrical connectors (window/lock switch) using a pick tool to release tabs if needed.
• If equipped, unclip the inside handle cable/rod using a pick tool. Go slow—plastic tabs break easily.

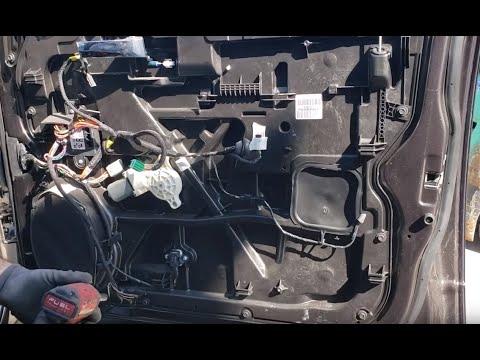

Step 2: Remove the water shield (vapor barrier)

• Use a flat-blade screwdriver (small) or trim panel removal tool to start peeling the water shield back.
• Peel it back slowly so the butyl adhesive stays on the shield as much as possible.
• Support the shield out of the way with painters tape.

Step 3: Disconnect the latch wiring and linkages

• Locate the door latch at the rear edge of the door (where it closes).
• Unplug the latch electrical connector by pressing the lock tab and pulling it off (use a pick tool if the tab is stubborn).
• Disconnect the lock/handle linkages:
  • Use needle-nose pliers to rotate the colored retainer clip open.
  • Lift the rod/cable end out of the latch lever.
• Tip: Take a photo before removing rods/cables.

Step 4: Remove the latch/actuator assembly

• At the door’s rear edge, remove the latch fasteners using a Torx T30 driver (usually 3 screws).
• Carefully maneuver the latch assembly out through the access opening in the door.

Step 5: Install the new latch/actuator assembly

• Slide the new latch/actuator into position inside the door.
• Install the latch screws using a Torx T30 driver, then tighten evenly. Torque to 8 Nm (71 in-lbs).
• Reconnect all rods/cables:
  • Seat the rod/cable end into the correct lever.
  • Close the retainer clip fully so it “locks” the rod in place.
• Reconnect the electrical connector until it clicks.

Step 6: Quick function check (before reassembly)

• Reconnect the battery negative terminal using a 10mm socket. Torque to 5 Nm (44 in-lbs).
• With the door open, test lock/unlock using the switch and the key fob.
• Test the inside and outside door handle operation.
• Disconnect the battery negative terminal again using a 10mm socket before putting the water shield/panel back on.

Step 7: Reinstall the water shield

• Press the water shield back onto the door using your hands.
• If the adhesive no longer sticks well, apply butyl tape (automotive) and press the shield firmly all the way around.

Step 8: Reinstall the door panel

• Reconnect the switch connectors and handle cable/rod.
• Hook the top of the panel onto the window channel and press downward to seat it.
• Press the panel clips in around the perimeter with your hands.
• Reinstall screws using the original driver (Torx T20 driver/Torx T25 driver/Phillips screwdriver #2). Torque to 2 Nm (18 in-lbs).
• Reinstall trim covers by snapping them back in place.

---

✅ After Repair

• 🔋 Reconnect the battery negative terminal using a 10mm socket. Torque to 5 Nm (44 in-lbs).
• 🔒 Test: key fob lock/unlock, door switch, inside handle, outside handle, and confirm the door locks/unlocks smoothly.
• 🚿 Check for leaks later: after a car wash or rain, confirm the carpet is dry (water shield seated correctly).

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $210-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
