🔧 Sentra - Front Door Lock Actuator Replacement

On your Sentra, the “door lock actuator” is commonly integrated into the door latch/lock assembly inside the door (it’s the unit that physically latches the door and also moves the lock). Replacement requires removing the interior door panel and peeling back the vapor barrier to access the latch area.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal before working in the door to prevent accidental airbag/short-circuit issues.
• ⚠️ Support the door glass if you must move the window regulator; keep fingers clear of pinch points.
• ⚠️ Do not tear the vapor barrier (plastic sheet). It prevents water leaks and wind noise.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension (1/4")
• Phillips #2 screwdriver
• Trim/panel removal tool (specialty)
• Small pick tool (specialty)
• Needle-nose pliers
• Painter’s tape
• Torque wrench (inch-pound) (specialty)
• T10 Torx driver
• T20 Torx driver
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front door latch/lock actuator assembly - Qty: 1
• Door panel retainer clips - Qty: 6-12
• Butyl tape (vapor barrier sealant) - Qty: 1

---

📋 Before You Begin

• Park on level ground, ignition OFF, key removed.
• Lower the window about halfway (helps access and visibility).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which front door and which part you’re replacing

• I need 2 quick details so I can give you the correct fastener locations and exact Nissan torque specs.
• Are we replacing the driver front or passenger front actuator?
• Are you replacing the actuator motor only or the complete latch/lock assembly (most common on your Sentra)?

Step 2: Remove the interior door trim panel (outline)

• Use a trim/panel removal tool (specialty) to gently pry off the trim covers near the handle/armrest to expose screws.
• Remove visible screws using a Phillips #2 screwdriver and/or T20 Torx driver (your Sentra can vary by build).
• Use the trim/panel removal tool (specialty) to pop the door panel clips free around the edges, then lift the panel upward to unhook it from the window ledge.

Step 3: Access the latch/actuator (outline)

• Carefully peel back the vapor barrier. Use butyl tape later to reseal.
• Disconnect the latch/actuator electrical connector by releasing the tab with a small pick tool (specialty).
• Unclip the door handle rods/cables using a small pick tool (specialty) and needle-nose pliers. Take a photo before removing clips.

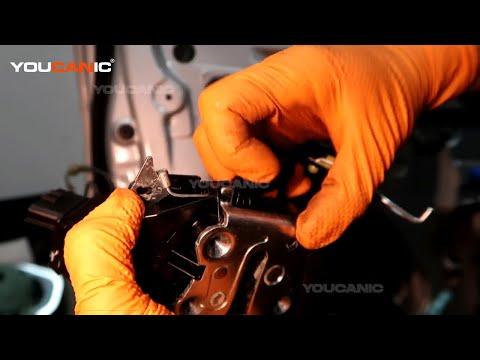

Step 4: Remove and replace the latch/actuator (outline)

• Remove the latch fasteners at the door edge using the correct driver (often Torx). Use a T30 Torx driver if equipped (I’ll confirm once you tell me which door/part).
• Swap in the new latch/actuator and reconnect rods/cables and the electrical connector.
• Tighten fasteners with a torque wrench (inch-pound) (specialty): Torque specs will be provided once you confirm driver/passenger and latch vs actuator-only (they differ by fastener type).

---

✅ After Repair

• Reconnect the battery using a 10mm socket.
• Before reinstalling the door panel, test: lock/unlock with switch and key fob, inside handle, outside handle, and verify the door opens from inside and outside.
• Reseal the vapor barrier fully with butyl tape, then reinstall the door panel and confirm all clips are seated.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $70-$250 (parts only)

You Save: $180-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
